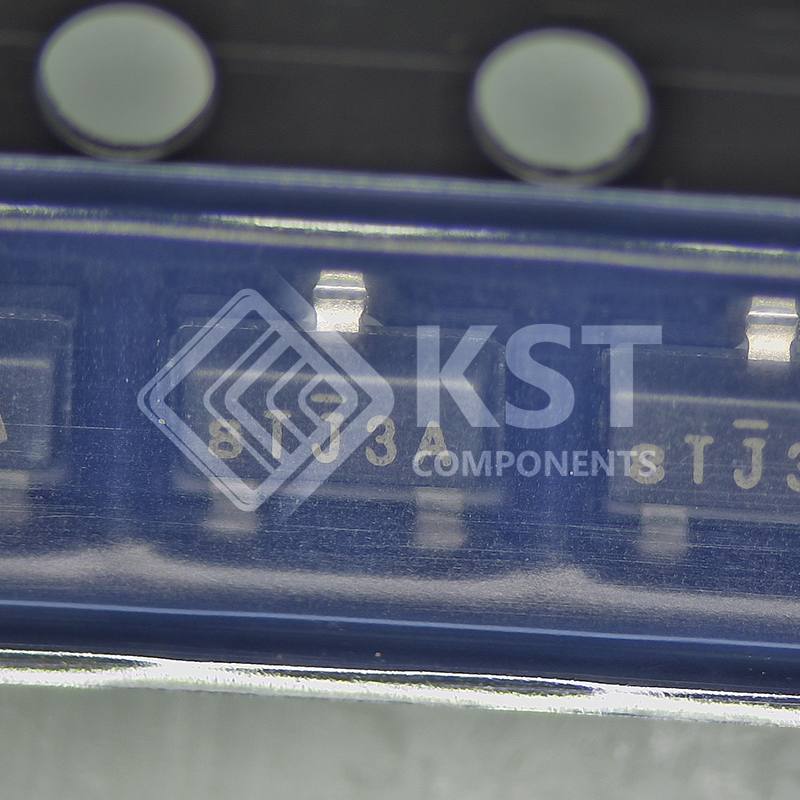

SQ2310ES-T1_GE3
INQUIRY ONLINE
|
Category
|
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
Single FETs, MOSFETs
|
|
|
Mfr
|
Vishay Siliconix
|
|
|
Series
|
TrenchFET®
|
|
|

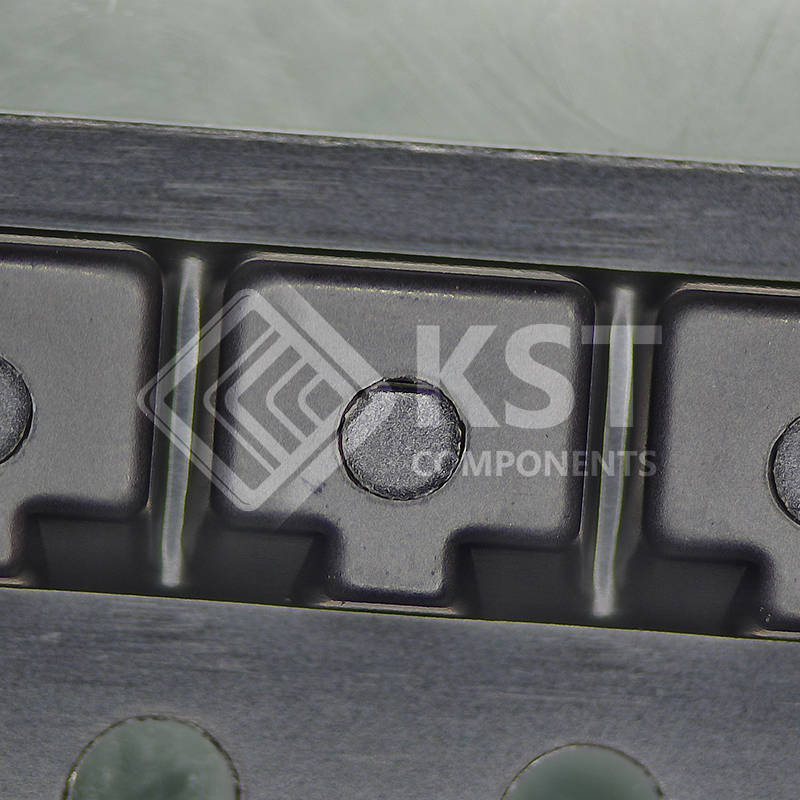

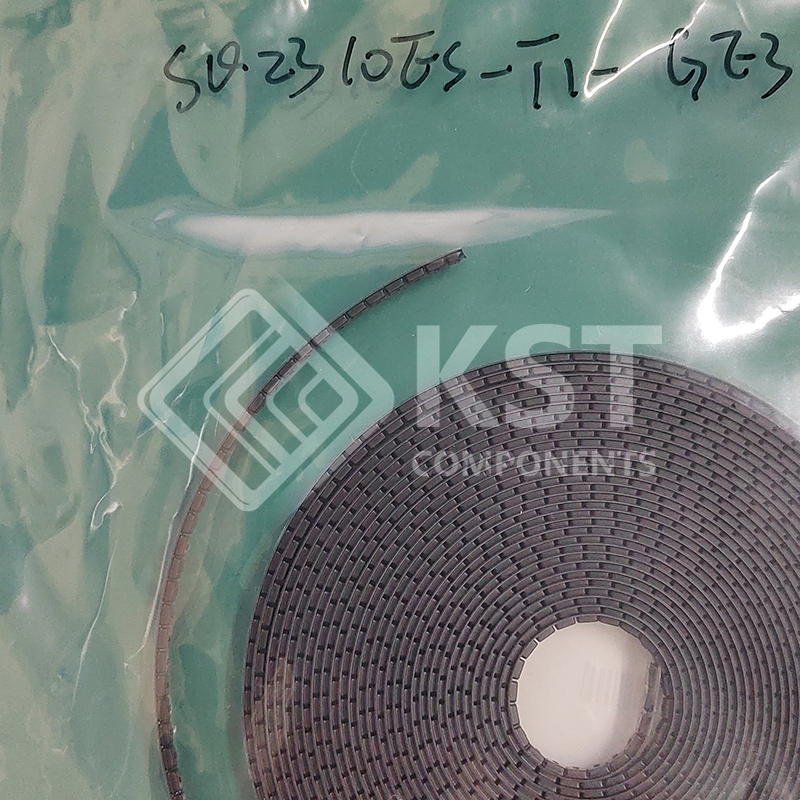

Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Obsolete
|
|
|
FET Type
|
N-Channel
|
|
|
Technology
|
MOSFET (Metal Oxide)
|
|
|
Drain to Source Voltage (Vdss)
|
20 V
|
|
|
Current – Continuous Drain (Id) @ 25°C
|
6A (Tc)
|
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
1.5V, 4.5V
|
|
|
Rds On (Max) @ Id, Vgs
|
30mOhm @ 5A, 4.5V
|
|
|
Vgs(th) (Max) @ Id
|
1V @ 250µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs
|
8.5 nC @ 4.5 V
|
|
|
Vgs (Max)
|
±8V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
485 pF @ 10 V
|
|
|
FET Feature
|
–
|
|
|
Power Dissipation (Max)
|
2W (Tc)
|
|
|
Operating Temperature
|
-55°C ~ 175°C (TJ)
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Supplier Device Package
|
SOT-23-3 (TO-236)
|
|
|
Package / Case
|
TO-236-3, SC-59, SOT-23-3
|
|
|
Base Product Number
|
SQ2310
|
