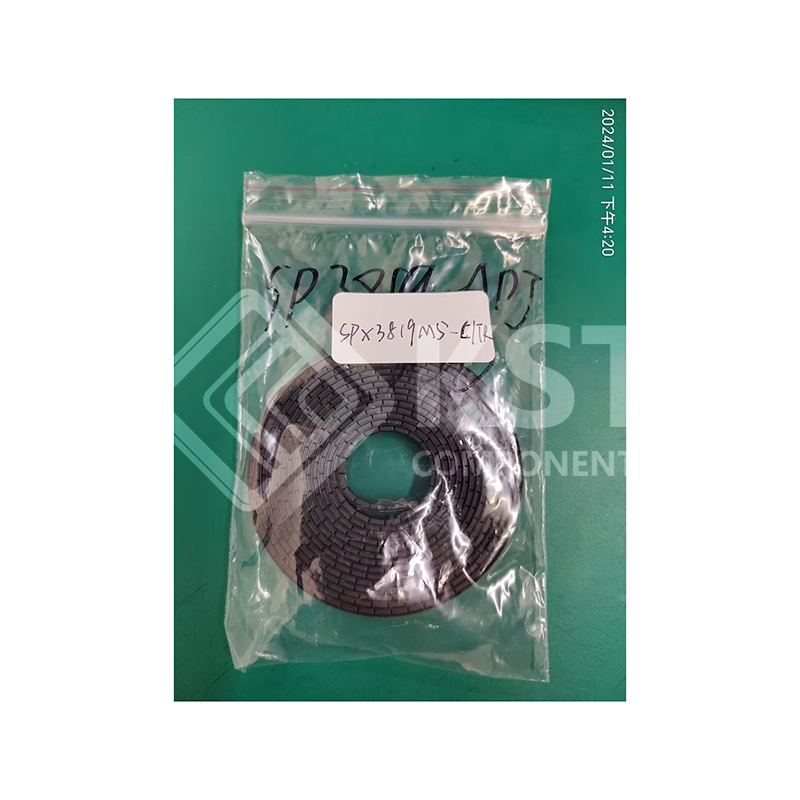

SPX3819M5-L/TR

The SPX3819 is a positive voltage regulator
with a low dropout voltage and low noise
output. In addition, this device offers a very low
ground current of 800μA at 100mA output. The
SPX3819 has an initial tolerance of less than
1% max and a logic compatible ON/OFF
switched input. When disabled, power
consumption drops to nearly zero. Other key
features include reverse battery protection,
current limit, and thermal shutdown. The
SPX3819 includes a reference bypass pin for
optimal low noise output performance. With its
very low output temperature coefficient, this
device also makes a superior low power voltage
reference.
The SPX3819 is an excellent choice for use in
battery-powered applications such as cordless
telephones, radio control systems, and portable
computers. It is available in several fixed
output voltage options or with an adjustable
output voltage.
This device is offered in 8 pin NSOIC, 8 pin DFN

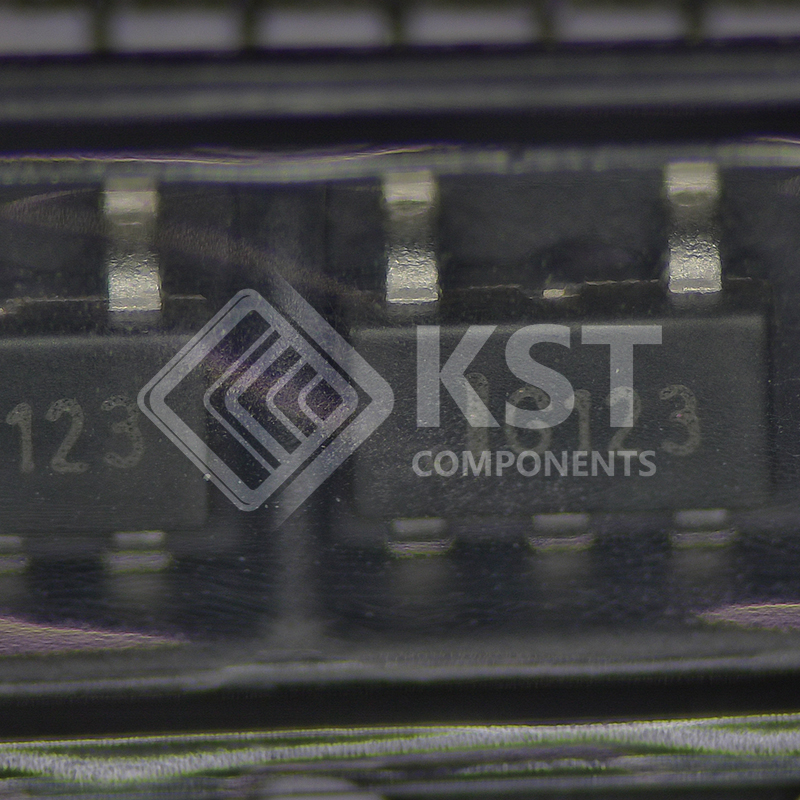

and 5-pin SOT-23 packages.


Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE




    SPECIFICATION

    Low Noise: 40μV Possible
    • High Accuracy: 1%
    • Reverse Battery Protection
    • Low Dropout: 340mV at Full Load
    • Low Quiescent Current: 90μA
    • Zero Off-Mode Current
    • Fixed & Adjustable Output Voltages:
    − 1.2V, 1.5V, 1.8V, 2.5V, 3.0V, 3.3V & 5.0V
    Fixed Output Voltages
    − ≥1.235V Adjustable Output Voltages
    • Available in RoHS Compliant, Lead Free
    Packages:
    − 5-pin SOT-23, 8-pin SOIC and 8-pin DFN
