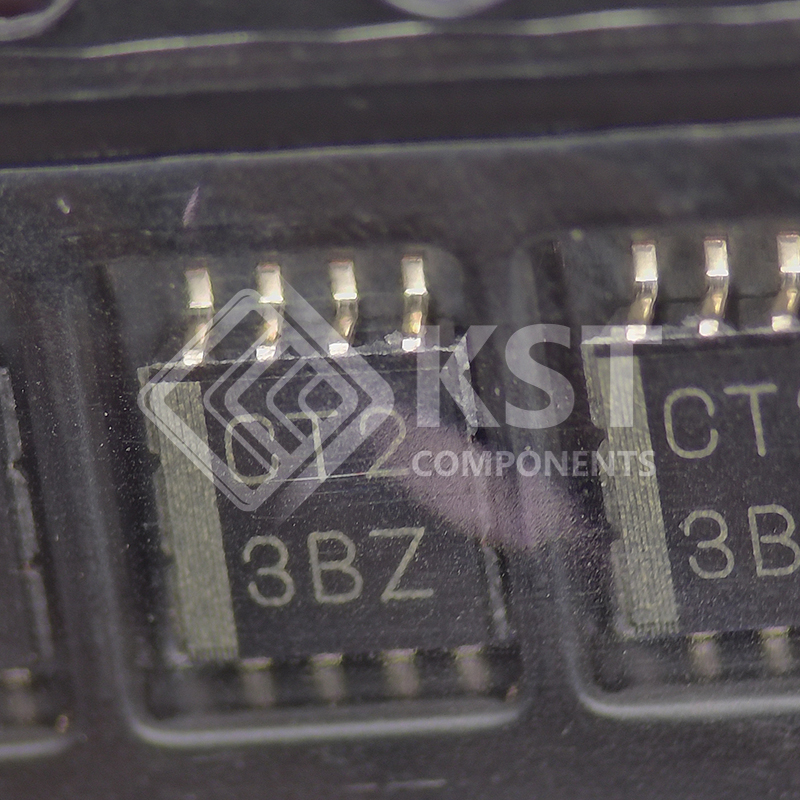

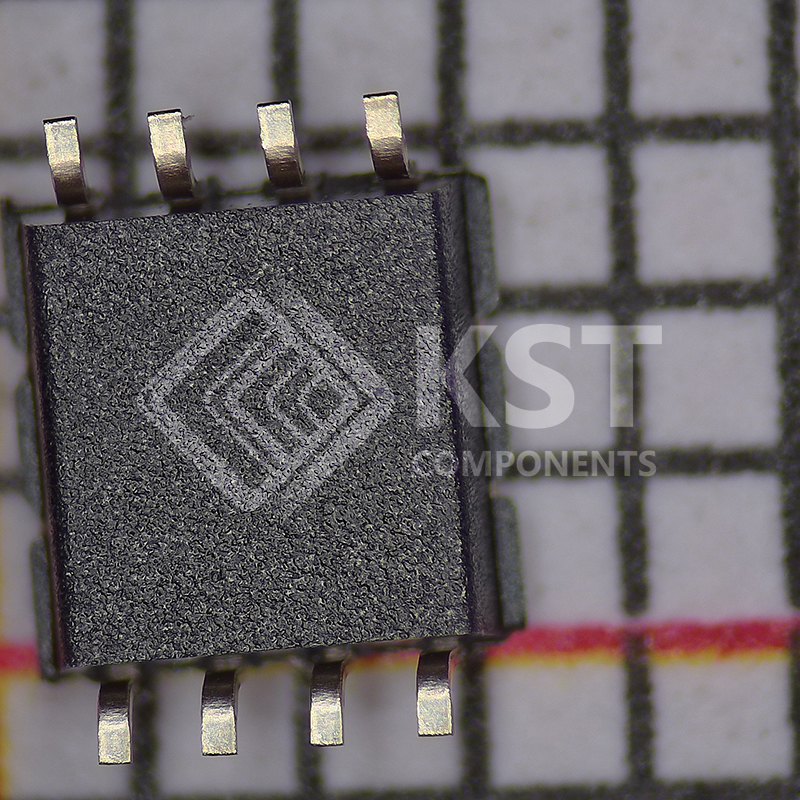

SN74LVC2T45DCTR

This dual-bit noninverting bus transceiver uses two
separate configurable power-supply rails. The A port
is designed to track VCCA. VCCA accepts any supply
voltage from 1.65V to 5.5V. The B port is designed
to track VCCB. VCCB accepts any supply voltage from
1.65V to 5.5V. This allows for universal low-voltage
bidirectional translation between any of the 1.8V, 2.5V,
3.3V, and 5V voltage nodes.
The SN74LVC2T45 is designed for asynchronous
communication between two data buses. The logic
levels of the direction-control (DIR) input activate
either the B-port outputs or the A-port outputs. The
device transmits data from the A bus to the B bus
when the B-port outputs are activated, and from the
B bus to the A bus when the A-port outputs are
activated. The input circuitry on both A and B ports
are always active and must have a logic HIGH or
LOW level applied to prevent excess ICC and ICCZ.
The SN74LVC2T45 is designed so that VCCA supplies
the DIR input circuit. This device is fully specified
for partial-power-down applications using Ioff. The Ioff
circuitry disables the outputs, preventing damaging
current backflow through the device when it is
powered down.
The VCC isolation feature is designed so that if either
VCC input is at GND, both ports are in the highimpedance state.


Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE




    SPECIFICATION

    • Fully configurable dual-rail design allows each port
    to operate over the full 1.65-V to 5.5-V powersupply range
    • VCC isolation feature – if either VCC input is at
    GND, both ports are in the high-impedance state
    • DIR input circuit referenced to VCCA
    • Low power consumption, 4-μA maximum ICC
    • Available in the Texas Instruments NanoFree™
    package
    • ±24-mA output drive at 3.3 V
    • Ioff supports Partial-Power-Down mode operation
    • Maximum data rates:
    – 420 Mbps (3.3-V to 5-V translation)
    – 210 Mbps (translate to 3.3 V)
    – 140 Mbps (translate to 2.5 V)
    – 75 Mbps (translate to 1.8 V)
    • Latch-up performance exceeds 100 mA per JESD
    78, Class II
    • ESD protection exceeds JESD 22
    – 4000-V Human-Body Model (A114-A)
    – 200-V Machine Model (A115-A)
    – 1000-V Charged-Device Model (C101)
