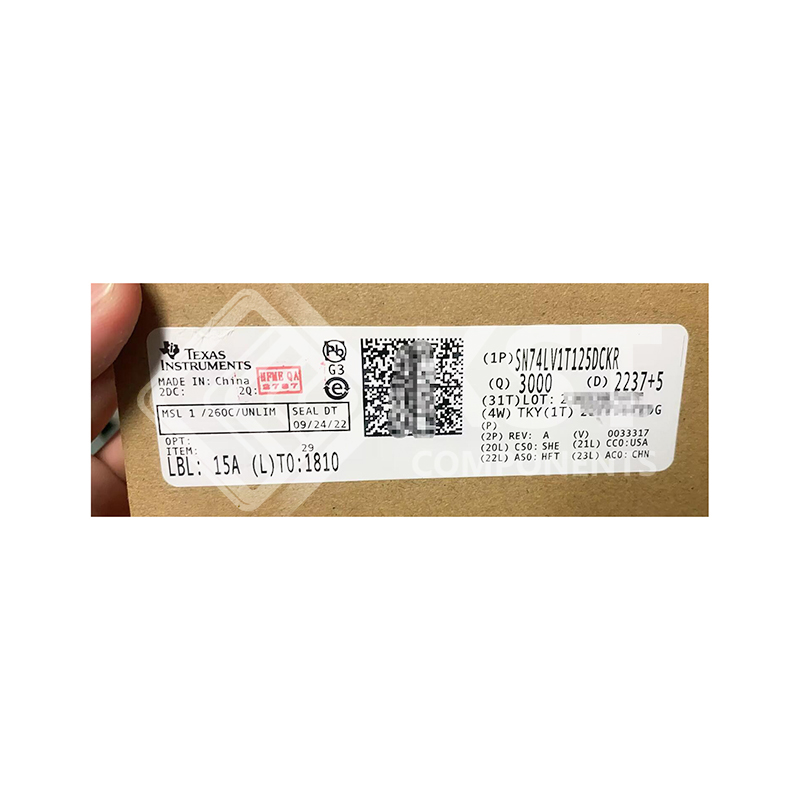

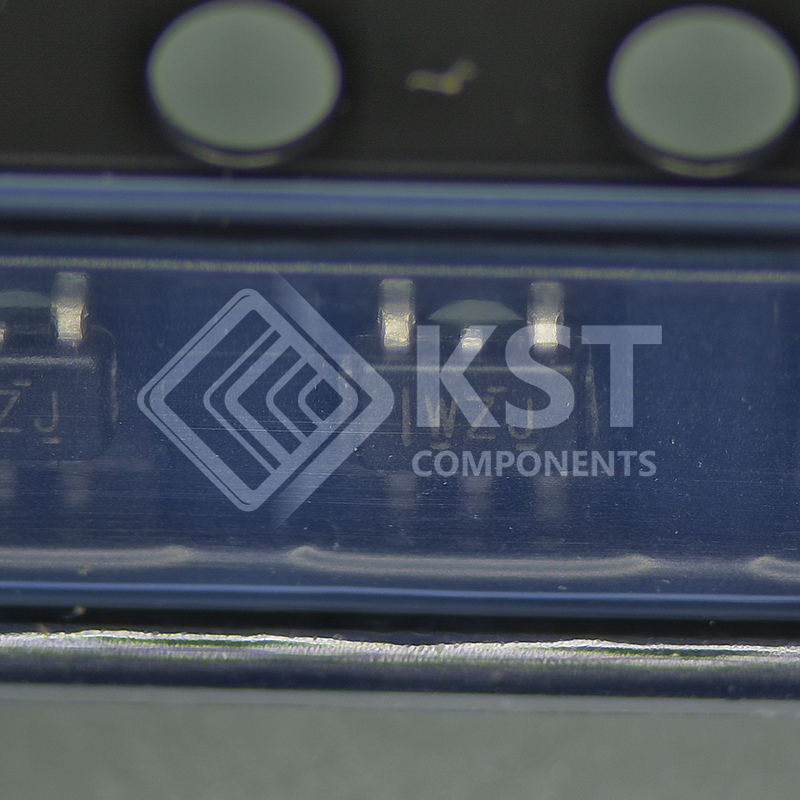

SN74LV1T125DCKR

• Single-supply voltage translator at 5V, 3.3V, 2.5V,
and 1.8V VCC
• Operating range of 1.8V to 5.5V
• Up translation:
– 1.2V(1) to 1.8V at 1.8V VCC
– 1.5V(1) to 2.5V at 2.5V VCC
– 1.8V(1) to 3.3V at 3.3V VCC
– 3.3V to 5.0V at 5.0V VCC
• Down translation:
– 3.3V to 1.8V at 1.8V VCC
– 3.3V to 2.5V at 2.5V VCC
– 5.0V to 3.3V at 3.3V VCC
• Logic output is referenced to VCC
• Output drive:
– 8.0mA output drive at 5V
– 7.0mA output drive at 3.3V
– 3.0mA output drive at 1.8V
• Characterized up to 50MHz at 3.3V VCC
• 5.0V tolerance on input pins
• –40°C to 125°C operating temperature range
• Latch-up performance exceeds 250mA per JESD
17
• Supports standard logic pinouts
• CMOS output B compatible with AUP1G and
LVC1G families
