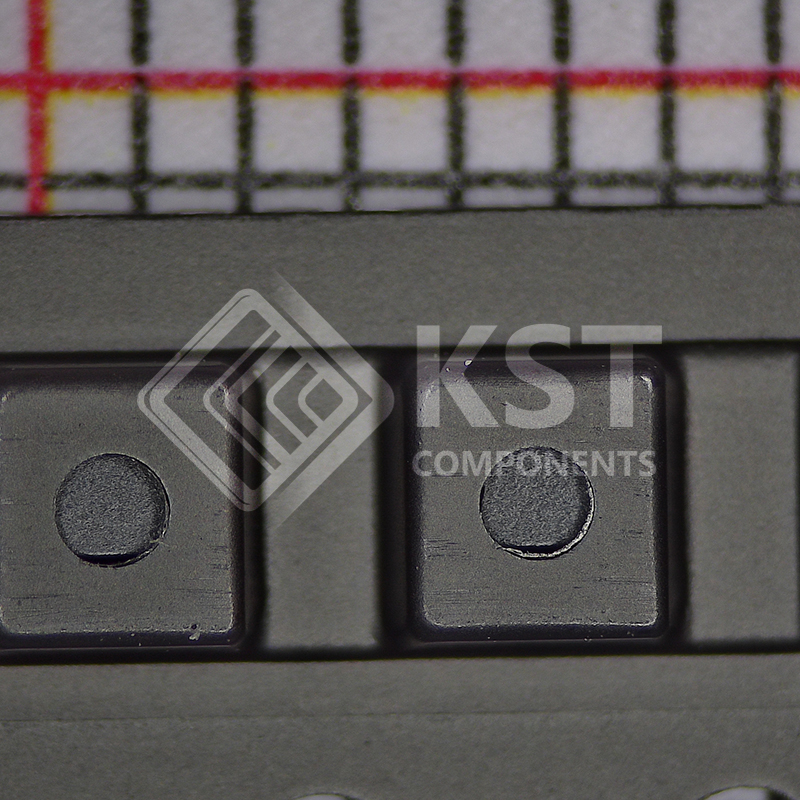

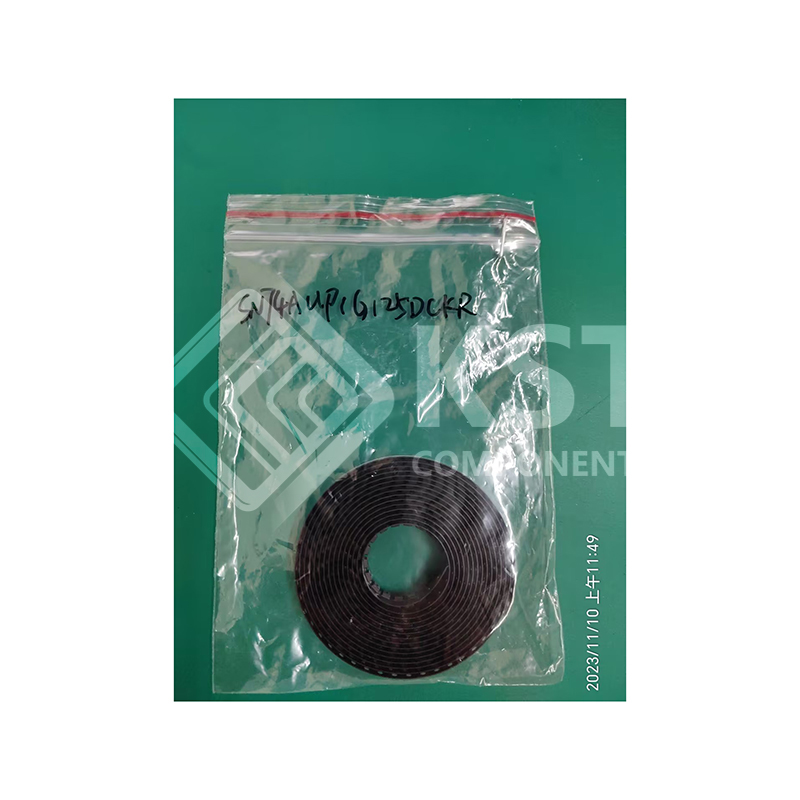

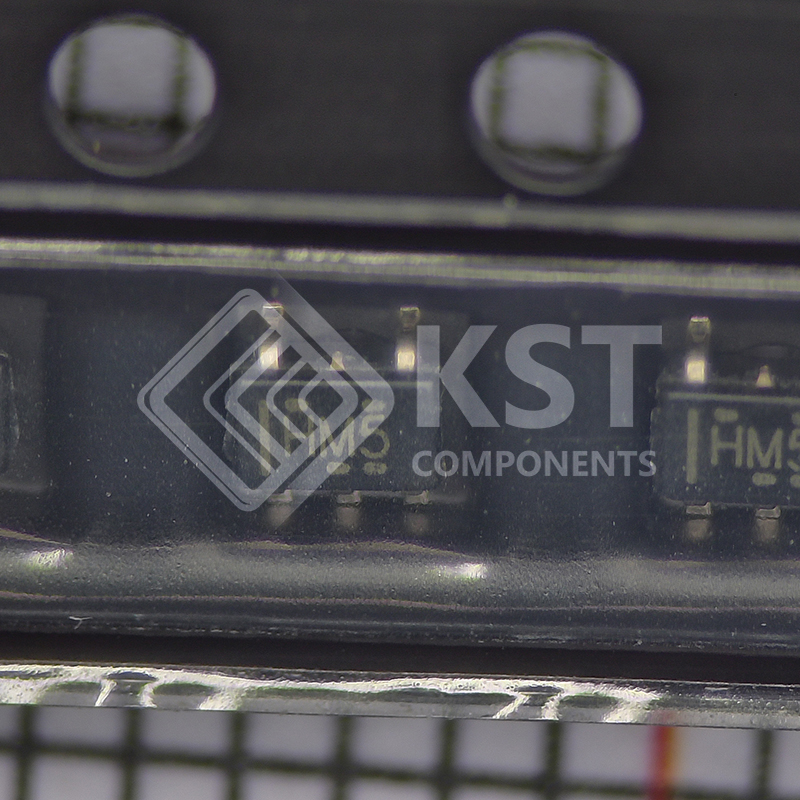

    SN74AUP1G125DCKR

    The SN74AUP1G125 bus buffer gate is a single line
    driver with a 3-state output. The output is disabled
    when the output-enable (OE) input is high. This
    device has the input-disable feature, which allows
    floating input signals.
    To ensure the high-impedance state during power up
    or power down, OE must be tied to VCC through a
    pullup resistor; the minimum value of the resistor is
    determined by the current-sinking capability of the
    driver

    Categories: ,

    Download Details PDF
    Notice:

    In stock will ship in 2 days. Real-time inventory pls confirm with us.

    INQUIRY ONLINE




      SPECIFICATION

      • Available in the Texas Instruments NanoStar™
      Package
      • Low Static-Power Consumption
      (ICC = 0.9 µA Maximum)
      • Low Dynamic-Power Consumption
      (Cpd = 4 pF Typical at 3.3 V)
      • Low Input Capacitance (CI = 1.5 pF Typical)
      • Low Noise – Overshoot and Undershoot
      < 10% of VCC
      • Input-Disable Feature Allows Floating Input
      Conditions
      • Ioff Supports Partial-Power-Down Mode Operation
      • Input Hysteresis Allows Slow Input Transition and
      Better Switching Noise Immunity at Input
      • Wide Operating VCC Range of 0.8 V to 3.6 V
      • 3.6-V I/O Tolerant to Support Mixed-Mode Signal
      Operation
      • tpd = 4.6 ns Maximum at 3.3 V
