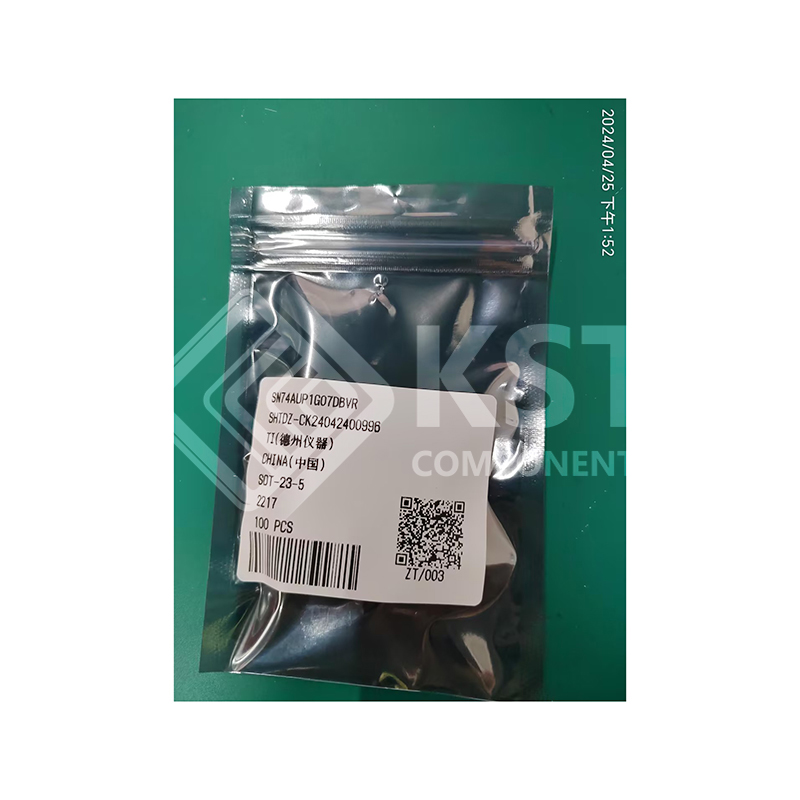

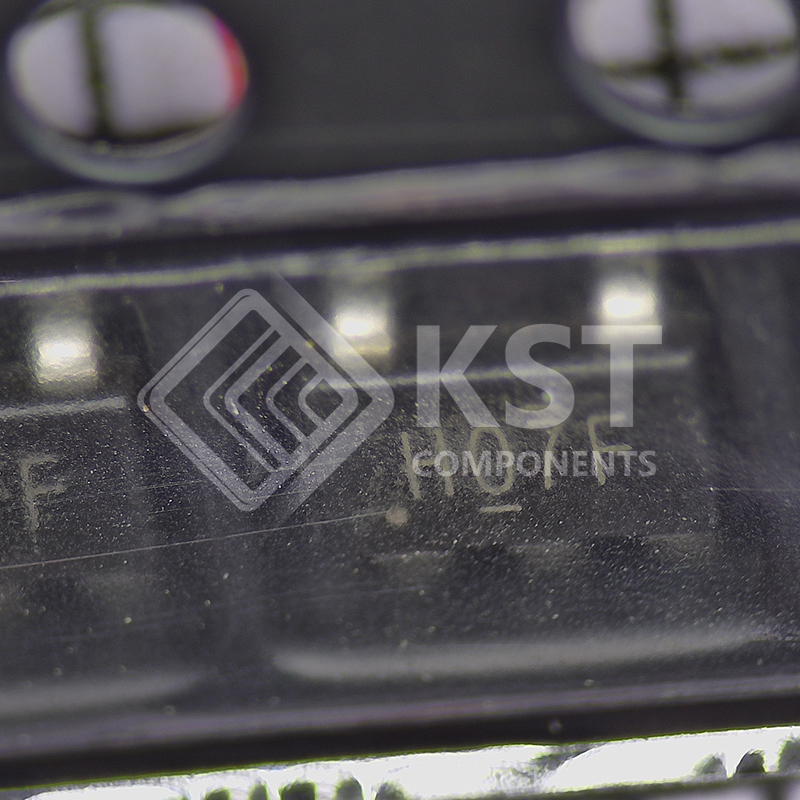

SN74AUP1G07DBVR

The SN74AUP1G07 device is a single buffer gate with open drain output that operates from 0.8 V to 3.6 V.

Category:

Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE




    SPECIFICATION

    • Available in the Ultra Small 0.64 mm2 Package (DPW) with 0.5-mm Pitch
    • Low Static-Power Consumption
      (ICC = 0.9 µA Maximum)
    • Low Dynamic-Power Consumption
      (Cpd = 1 pF Typical at 3.3 V)
    • Low Input Capacitance (Ci = 1.5 pF Typical)
    • Low Noise – Overshoot and Undershoot
      <10% of VCC
    • Ioff Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection
    • Input Hysteresis Allows Slow Input Transition and Better Switching Noise Immunity at the Input
      (Vhys = 250 mV Typ at 3.3 V)
    • Wide Operating VCC Range of 0.8 V to 3.6 V
    • Optimized for 3.3-V Operation
    • 3.6-V I/O Tolerant to Support Mixed-Mode Signal Operation
    • tpd = 3.3 ns Maximum at 3.3 V
    • Suitable for Point-to-Point Applications
    • Latch-Up Performance Exceeds 100 mA
      Per JESD 78, Class II
    • ESD Performance Tested Per JESD 22
      • 2000-V Human-Body Model
        (A114-B, Class II)
      • 1000-V Charged-Device Model (C101)
