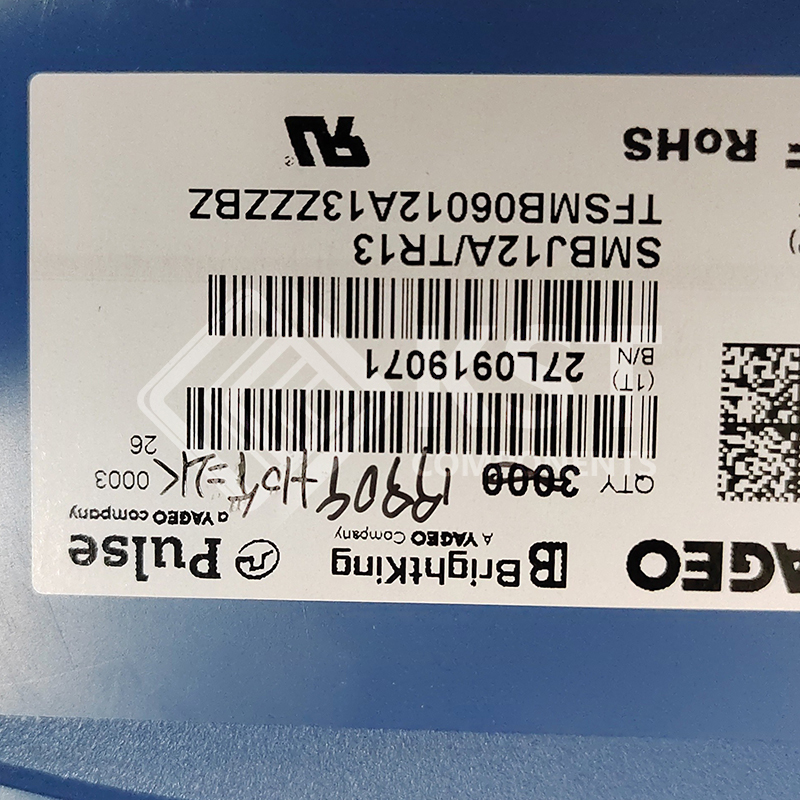

SMBJ12A/TR13

■ Case: JEDEC DO-214AA. Molded plastic over glass passivated junction
■ Terminal: Tin plated, solderable per MIL-STD-750, Method 2026
■ Polarity: Color band denotes cathode except bi-directional models

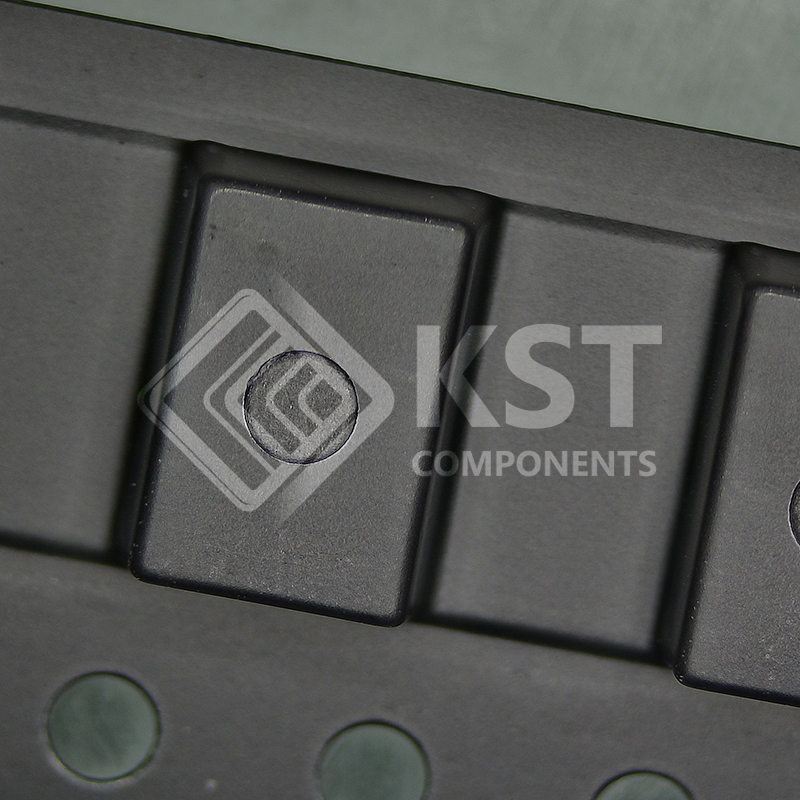

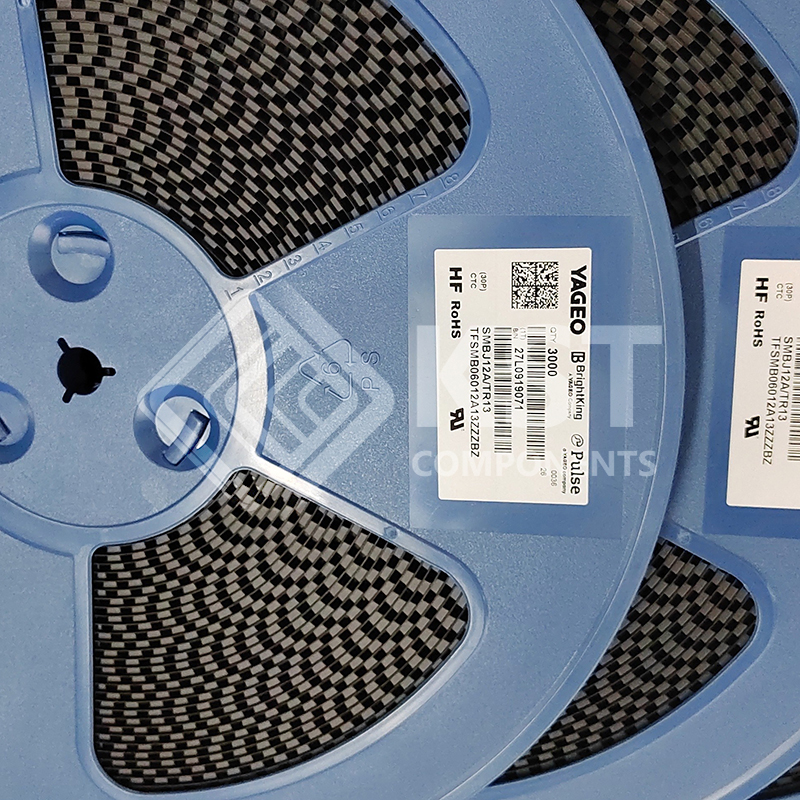

■ Standard Packaging: 12mm tape (EIA STD RS-481)
■ Weight: 0.10g

Category:

Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE




    SPECIFICATION

    ■ For surface mounted applications in order to optimize board space
    ■ Low profile package
    ■ Built-in strain relief
    ■ Glass passivated junction
    ■ Low inductance
    ■ Excellent clamping capability
    ■ 600W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycle): 0.01%
    ■ Fast response time
    ■ Typical IR less than 1μA above 10V
    ■ High Temperature soldering: 260℃/10 seconds at terminals
    ■ Plastic package has underwriters laboratory flammability 94V-0
    ■ Meets MSL level 1, per J-STD-020
    ■ Safety certification: UL: E465643
    ■ IEC61000-4-2 ESD 30KV Air, 30KV contact compliance
