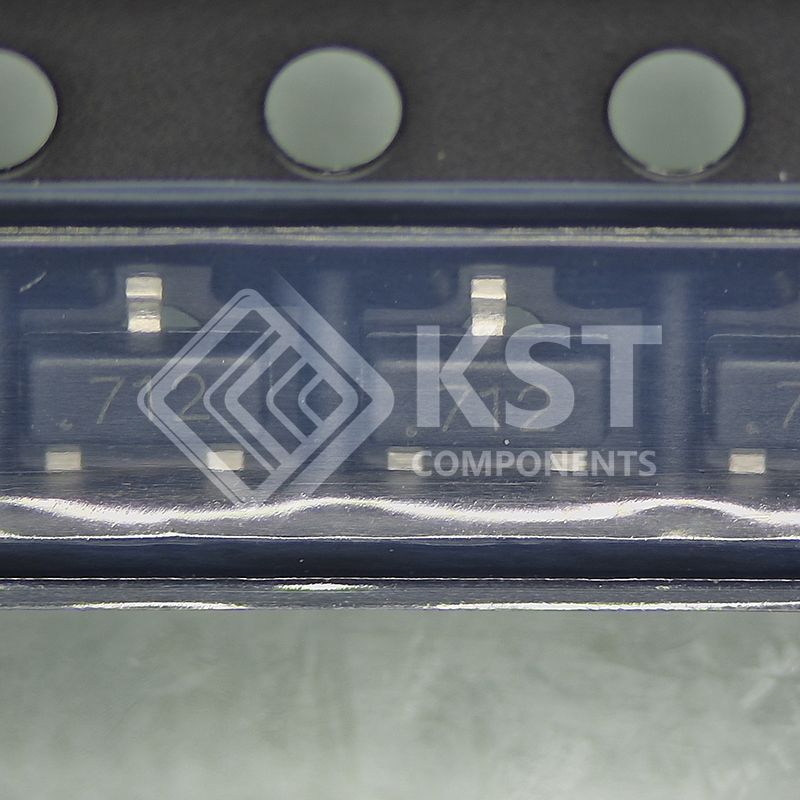

    SM712-02HTG

    • RoHS compliant and
    lead-free
    • ESD, IEC 61000-4-2,
    ±30kV contact, ±30kV air
    • EFT, IEC 61000-4-4, 50A
    (5/50ns)
    • Lightning, IEC 61000-
    4-5 2nd edition, 19A
    (tP=8/20μs)
    • Working Voltages:
    -7V to 12V
    • Low clamping voltage
    • Low leakage current
    • AEC-Q101 Qualified
    • Moisture Sensitivity
    Level (MSL-1)

    Categories: ,

    Download Details PDF
    Notice:

    In stock will ship in 2 days. Real-time inventory pls confirm with us.

    INQUIRY ONLINE




      SPECIFICATION

      The SM712 TVS Diode Array is designed to protect RS-485
      applications with asymmetrical working voltages (-7V to
      12V) from damage due to electrostatic discharge (ESD),
      electrical fast transients (EFT), and lightning induced surges.
      The SM712 can absorb repetitive ESD strikes above the
      maximum level specified in the IEC 61000-4-2 international
      standard without performance degradation and safely
      dissipate up to 19A of 8/20us induced surge current (IEC61000-4-5 2nd edition) with very low clamping voltages.
