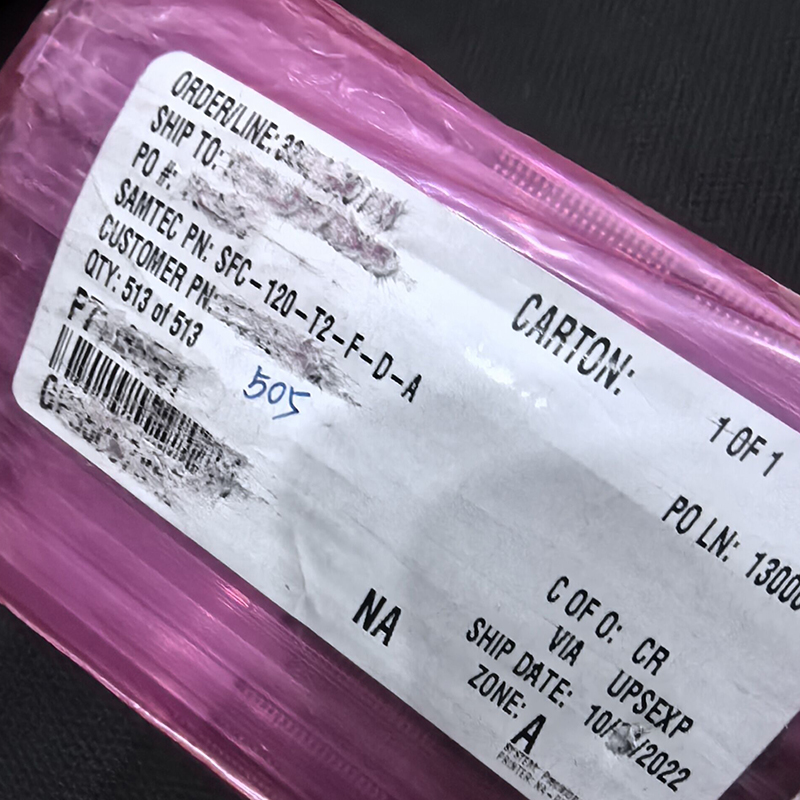

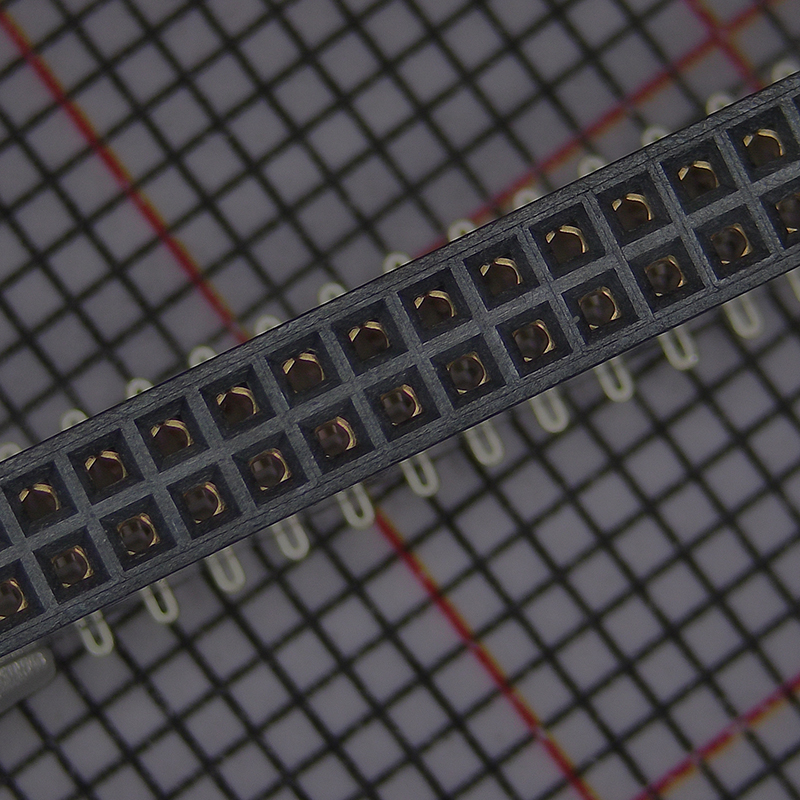

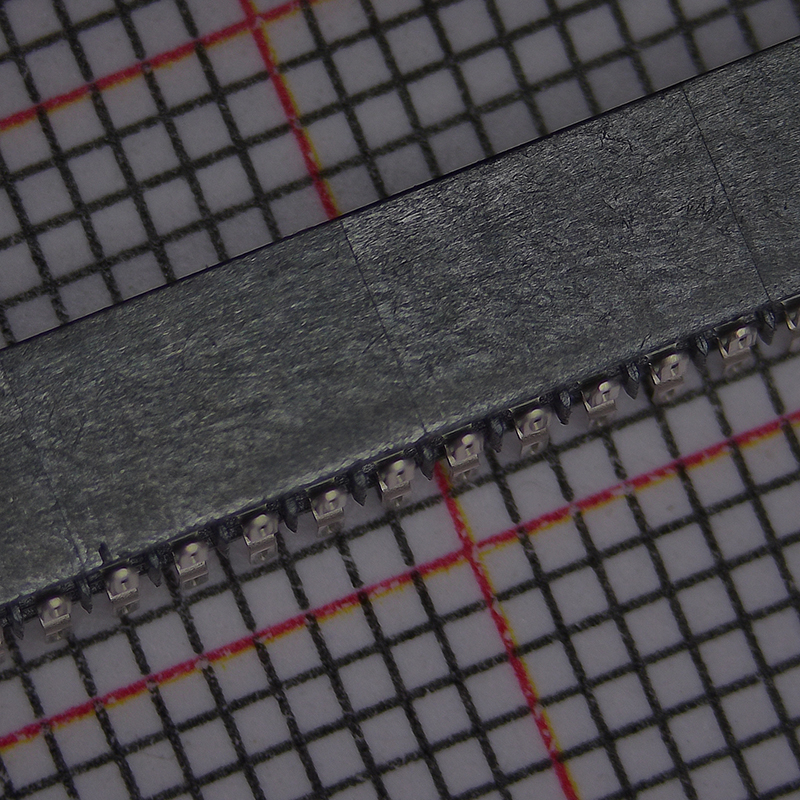

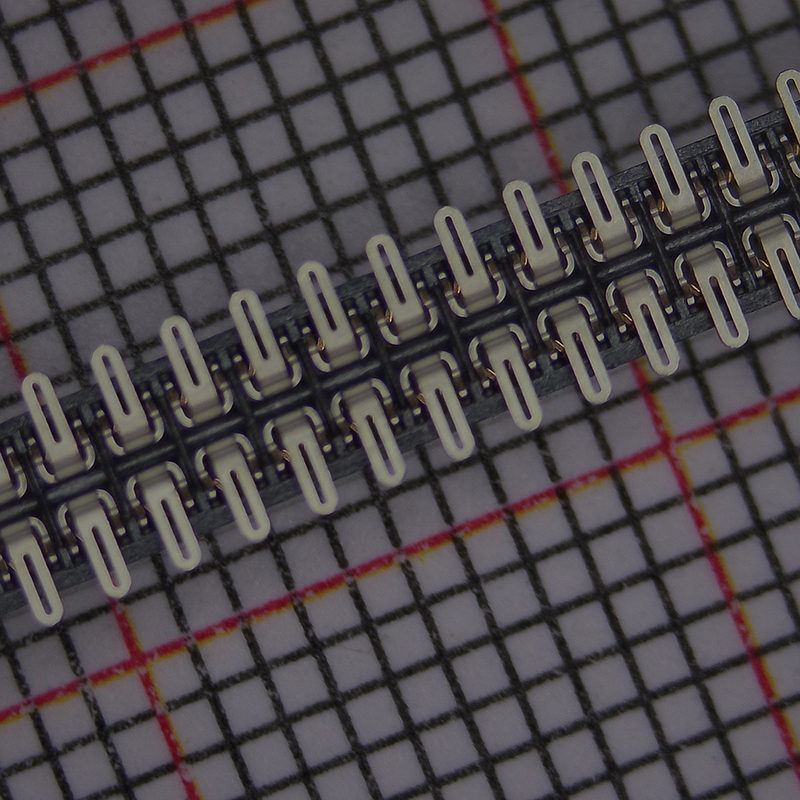

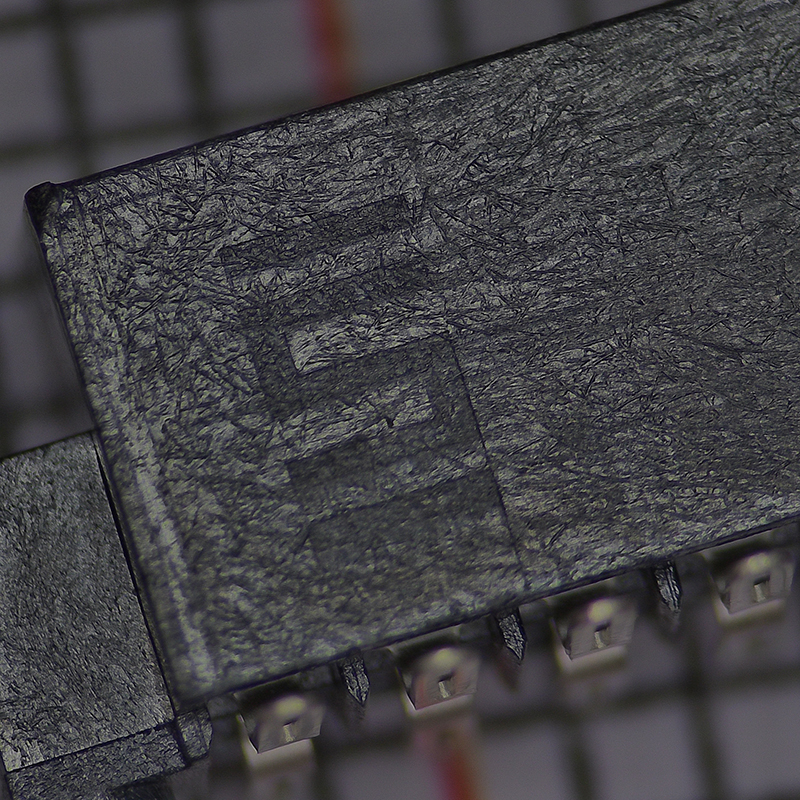

SFC-120-T2-F-D-A
INQUIRY ONLINE
|
Category
|
Connectors, Interconnects
Rectangular Connectors
Headers, Receptacles, Female Sockets
|
|
|
Mfr
|
Samtec Inc.
|
|
|
Series
|
Tiger Eye™ SFC
|
|
|
Packaging
|
Tube
|
|
|
Part Status
|
Active
|
|
|
Connector Type
|
Receptacle
|
|
|
Contact Type
|
Female Socket
|
|
|
Style
|
Board to Board or Cable
|
|
|
Number of Positions
|
40
|
|
|
Number of Positions Loaded
|
All
|
|
|
Pitch – Mating
|
0.050″ (1.27mm)
|
|
|
Number of Rows
|
2
|
|
|
Row Spacing – Mating
|
0.050″ (1.27mm)
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Termination
|
Solder
|
|
|
Fastening Type
|
Push-Pull
|
|
|
Contact Finish – Mating
|
Gold
|
|
|
Contact Finish Thickness – Mating
|
3.00µin (0.076µm)
|
|
|
Insulation Color
|
Black
|
|
|
Insulation Height
|
0.180″ (4.57mm)
|
|
|
Contact Length – Post
|
–
|
|
|
Operating Temperature
|
-55°C ~ 125°C
|
|
|
Material Flammability Rating
|
–
|
|
|
Contact Finish – Post
|
Tin
|
|
|
Mated Stacking Heights
|
–
|
|
|
Ingress Protection
|
–
|
|
|
Features
|
Board Guide
|
|
|
Current Rating (Amps)
|
3.1A per Contact
|
|
|
Voltage Rating
|
350VAC
|
|
|
Applications
|
–
|
|
|
Insulation Material
|
Liquid Crystal Polymer (LCP)
|
|
|
Contact Shape
|
Square
|
|
|
Contact Material
|
Phosphor Bronze
|
|
|
Contact Finish Thickness – Post
|
–
|
|
|
Base Product Number
|
SFC-120
|
