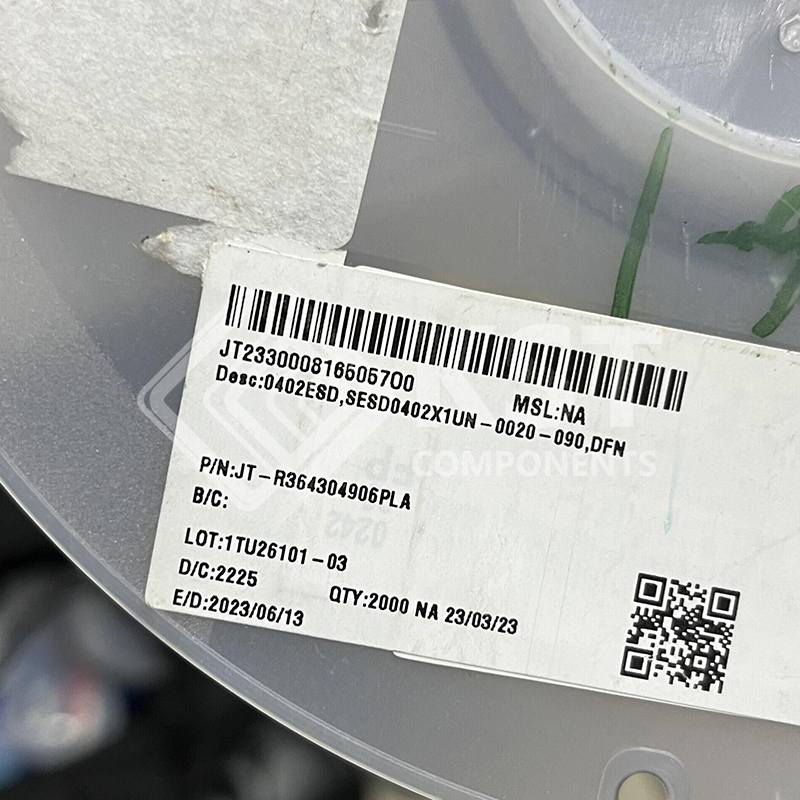

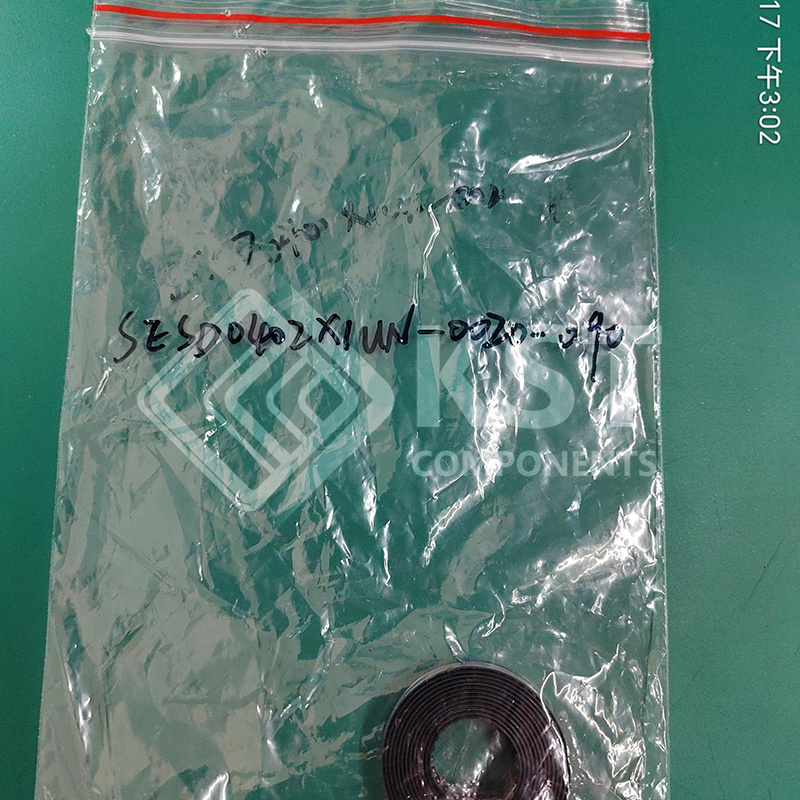

SESD0402X1UN-0020-090

The SESD Series Ultra Low Capacitance Discrete TVS
provides unidirectional and bidirectional ESD protection
for the most challenging high speed serial interfaces. Its
low off-state capacitance, extremely low leakage (< 50 nA)
and low dynamic resistance make it compatible with high
speed signaling such as USB 3.1, HDMI 2.0, DisplayPort,
and V-by-One®.
The SESD series has an ESD (IEC 61000-4-2) rating of
±20 kV packaged in the industry’s popular 0402 and 0201
footprints.
