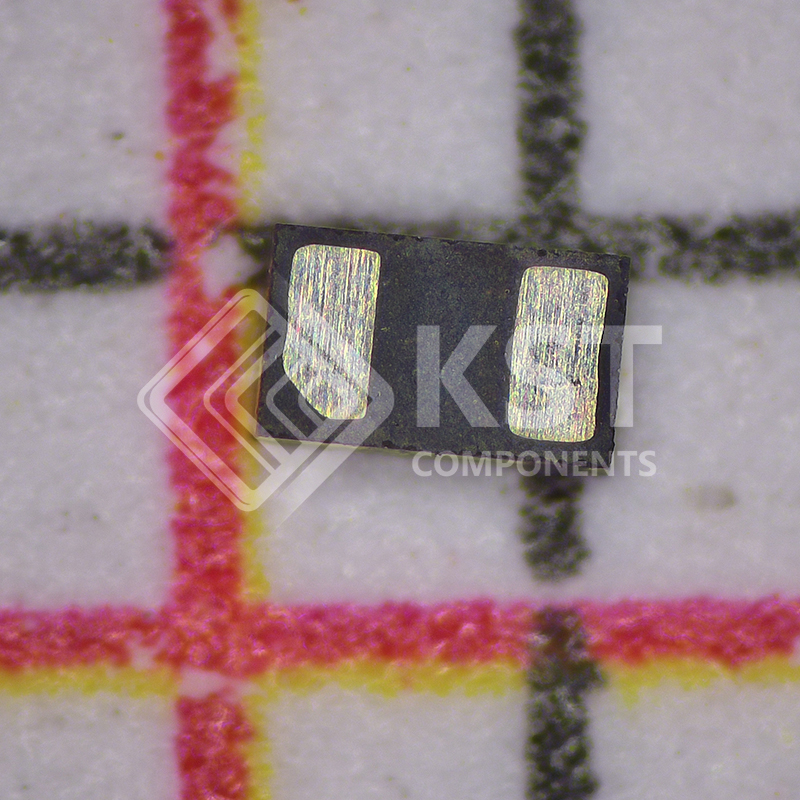

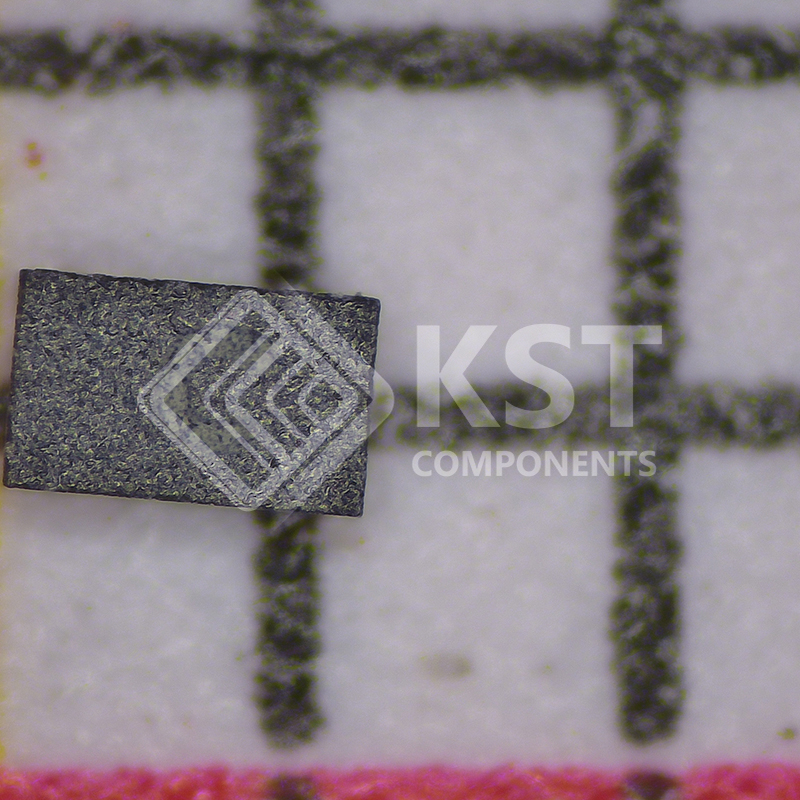

    SESD0402X1BN-0010-098

    • Industry-leading lowest capacitance; provides lowest
    insertion loss for high speed data signals
    • Small size ESD protection diodes for high speed data
    signals (0402 size devices)
    • Helps protect electronic circuits against damage from
    Electrostatic Discharge (ESD), surge and cable
    discharge events
    • Assists equipment to pass IEC61000-4-2, level 4
    testing

    Category:

    Download Details PDF
    Notice:

    In stock will ship in 2 days. Real-time inventory pls confirm with us.

    INQUIRY ONLINE




      SPECIFICATION

      • Low capacitance: 0.10 pF (typ, bi-di)
      • Low leakage current: 50nA @ 5V (max)
      • Low clamping voltage: ±9.90V (typ, bi-di)
      @ (tp=8×20µs, Ipp=2A)
      • ESD maximum rating per IEC61000-4-2 standard:
      o ± 20kV contact discharge
      o ± 20kV air discharge
      • Surge: 2A (max, bi-di) @ (tp=8×20µs) per
      IEC61000-4-2-5
      • Small size and low profile: XDFN packages
      • Bi-directional operation
