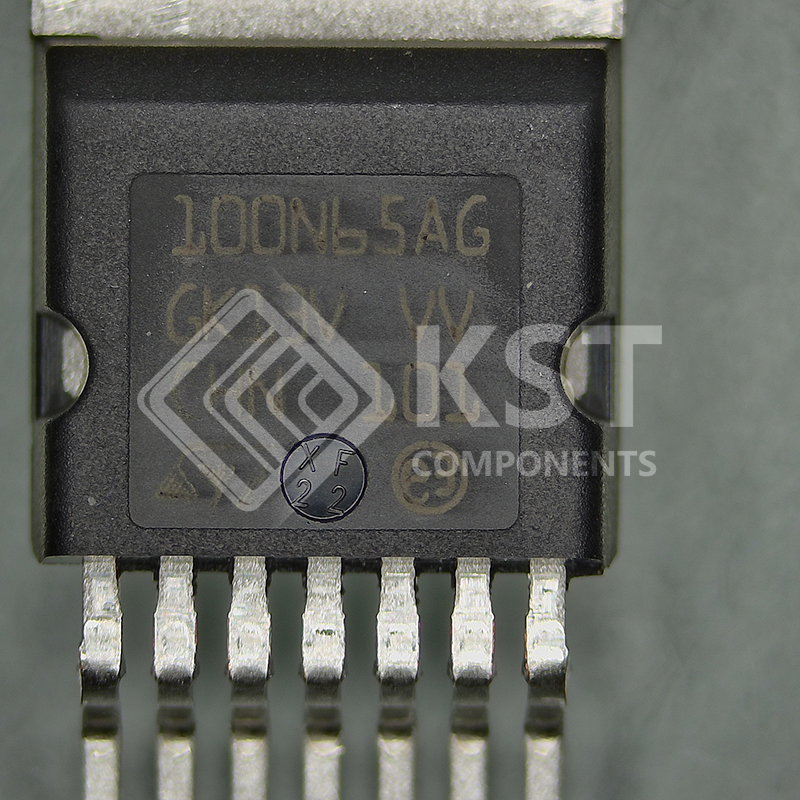

SCTH100N65G2-7AG
INQUIRY ONLINE
|
Category
|
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
Single FETs, MOSFETs
|
|
|
Mfr
|
STMicroelectronics
|
|
|
Series
|
–
|
|
|
Packaging
|

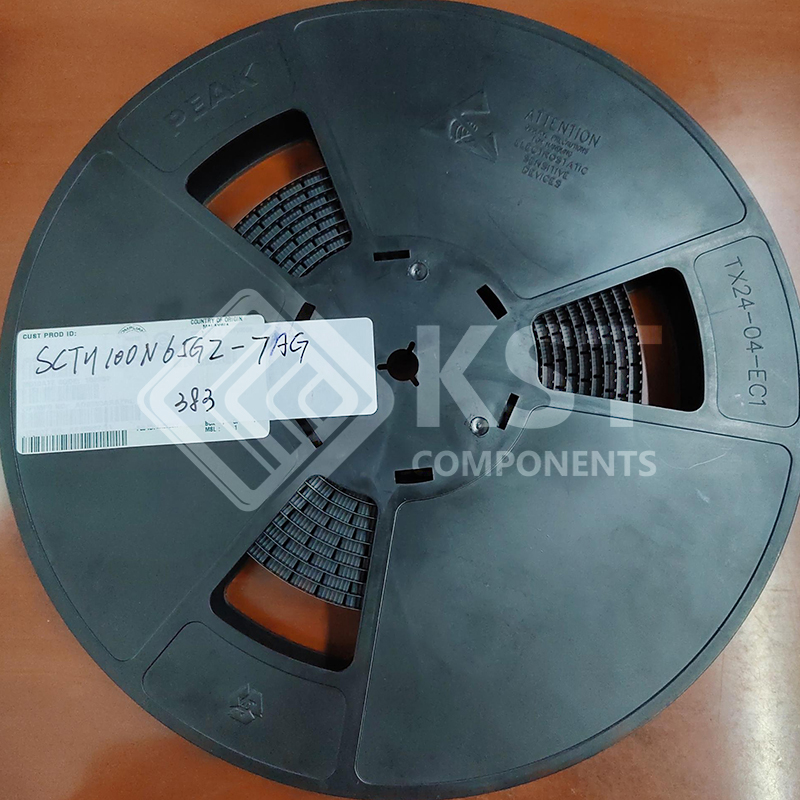

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
FET Type
|
N-Channel
|
|
|
Technology
|
SiCFET (Silicon Carbide)
|
|
|
Drain to Source Voltage (Vdss)
|
650 V
|
|
|
Current – Continuous Drain (Id) @ 25°C
|
95A (Tc)
|
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
18V
|
|
|
Rds On (Max) @ Id, Vgs
|
26mOhm @ 50A, 18V
|
|
|
Vgs(th) (Max) @ Id
|
5V @ 5mA
|
|
|
Gate Charge (Qg) (Max) @ Vgs
|
162 nC @ 18 V
|
|
|
Vgs (Max)
|
+22V, -10V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
3315 pF @ 520 V
|
|
|
FET Feature
|
–
|
|
|
Power Dissipation (Max)
|
360W (Tc)
|
|
|
Operating Temperature
|
-55°C ~ 175°C (TJ)
|
|
|
Grade
|
Automotive
|
|
|
Qualification
|
AEC-Q101
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Supplier Device Package
|

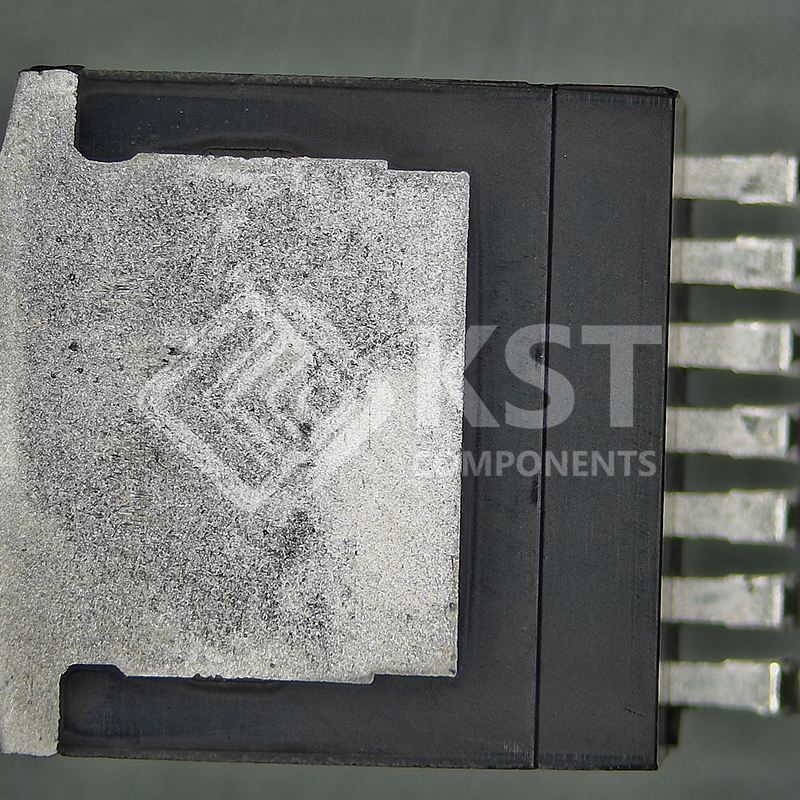

H2PAK-7
|
|
|
Package / Case
|
TO-263-8, D2PAK (7 Leads + Tab), TO-263CA
|
|
|
Base Product Number
|
SCTH100
|
