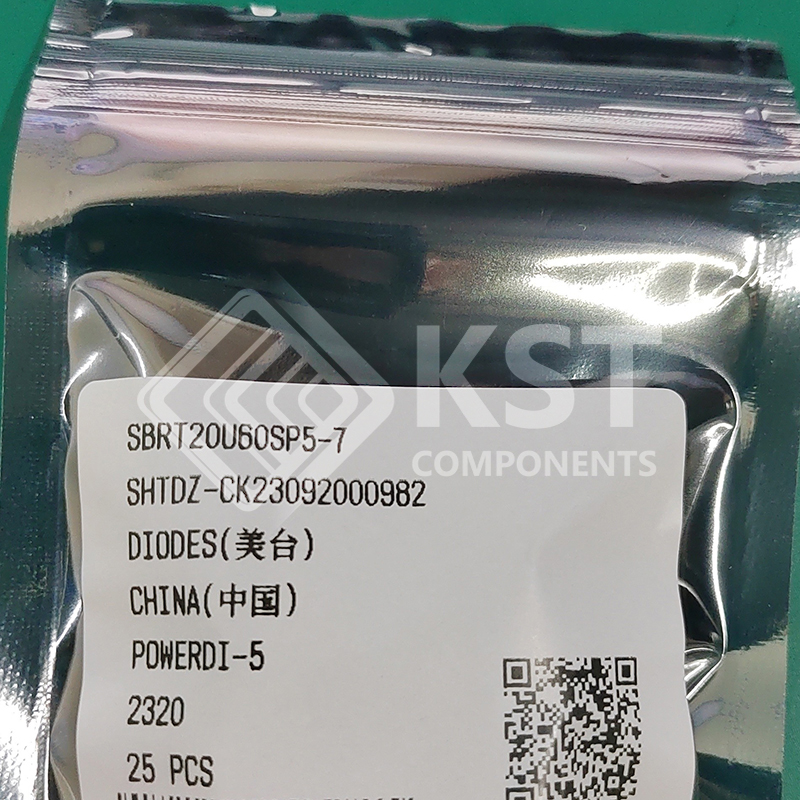

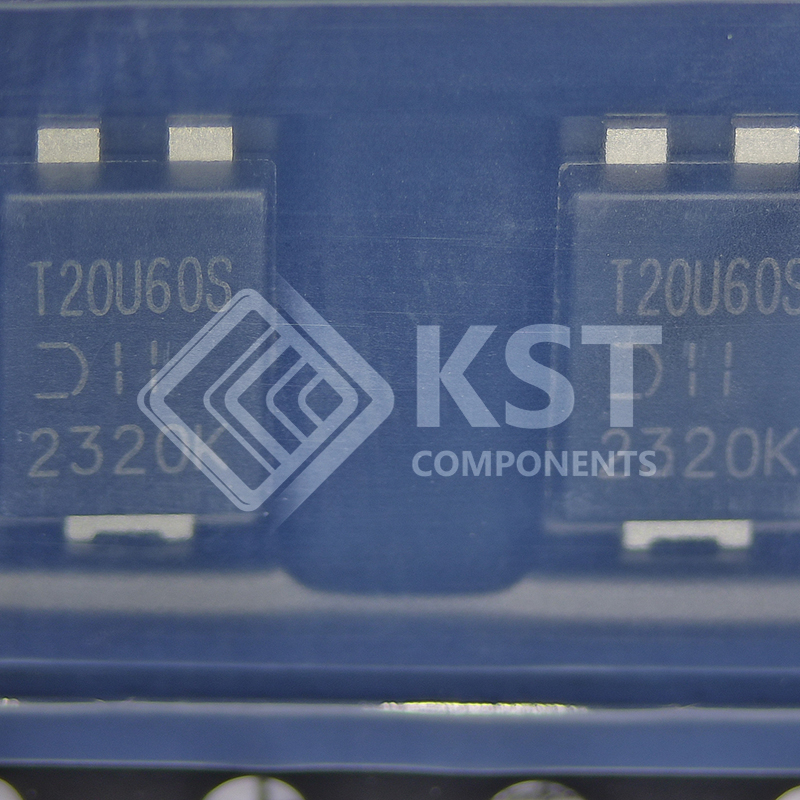

SBRT20U60SP5-7

Packaged in the compact thermally efficient POWERDI5 package, the
TrenchSBR SBRT20U60SP5 provides ultra-low forward voltage drop
(VF) and provides excellent low reverse leakage stability at high
temperatures. It is ideal for use as a rectification, freewheeling or
polarity protection diode in applications such as:
 >10W AC-DC Adaptors/Chargers
 DC-DC Converters

 Case: POWERDI5
 Case Material: Molded Plastic, “Green” Molding Compound;
UL Flammability Classification Rating 94V-0
 Moisture Sensitivity: Level 1 per J-STD-020
 Terminal Connections: See Diagram Below
 Weight: 0.093 grams (Approximate)
