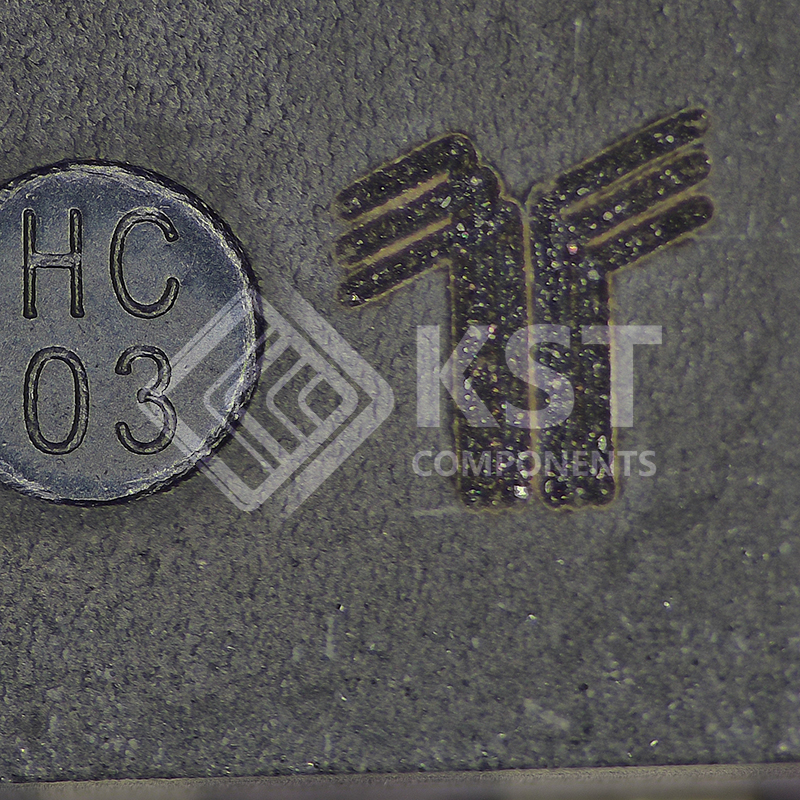

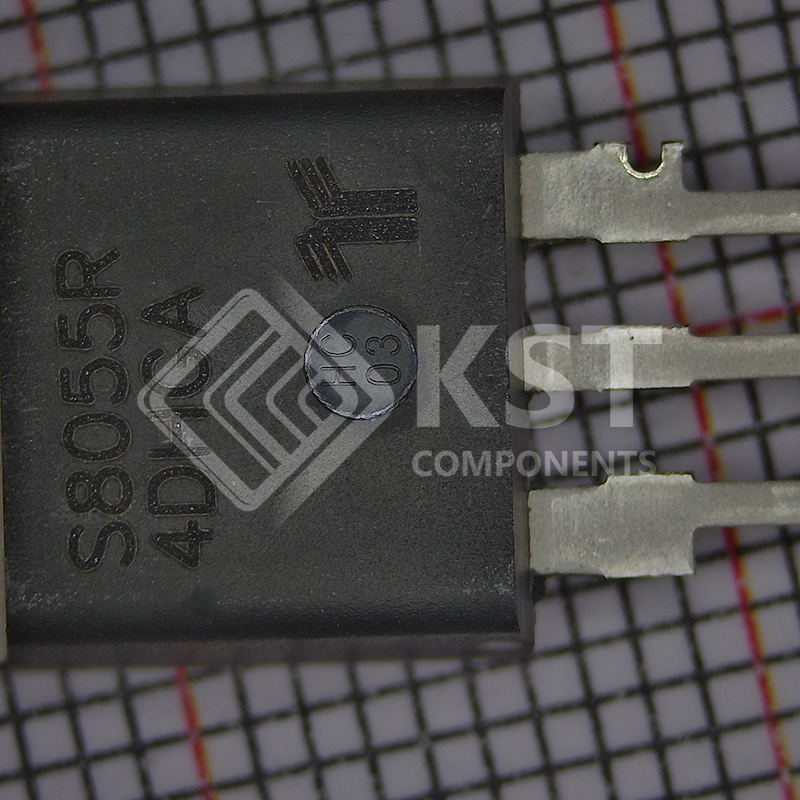

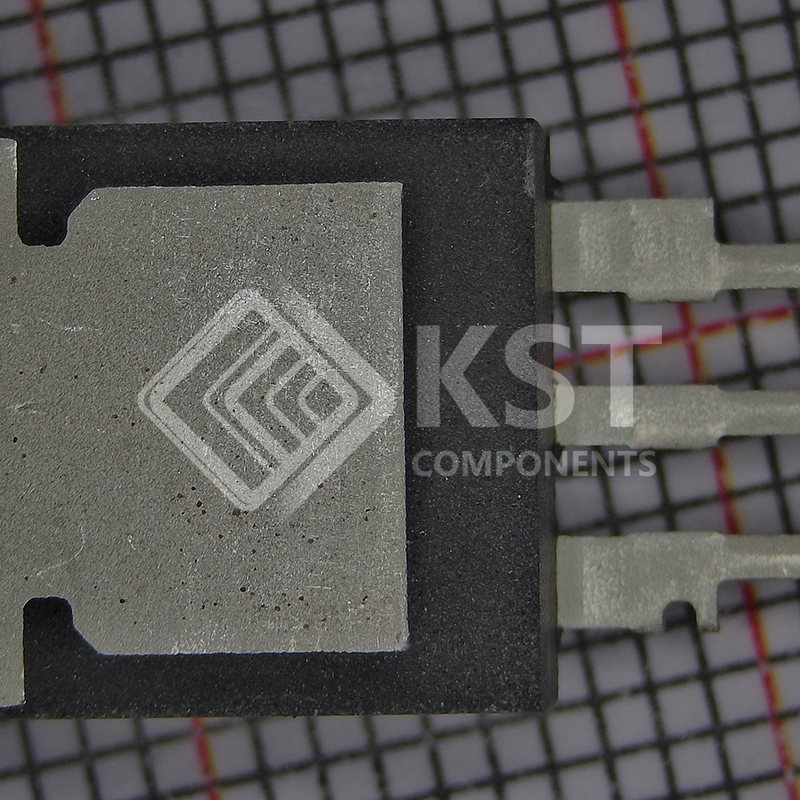

S8055RTP
INQUIRY ONLINE
|
Category
|
Discrete Semiconductor Products
Thyristors
SCRs
|
|
|
Manufacturer
|
Littelfuse Inc.
|
|
|
Series
|
–
|
|
|
Packaging
|
Tube
|
|
|
Part Status
|
Active
|
|
|
Voltage – Off State
|
800 V
|
|
|
Voltage – Gate Trigger (Vgt) (Max)
|
1.5 V
|
|
|
Current – Gate Trigger (Igt) (Max)
|
40 mA
|
|
|
Voltage – On State (Vtm) (Max)
|
1.8 V
|
|
|
Current – On State (It (AV)) (Max)
|
35 A
|
|
|
Current – On State (It (RMS)) (Max)
|
55 A
|
|
|
Current – Hold (Ih) (Max)
|
60 mA
|
|
|
Current – Off State (Max)
|
20 µA
|
|
|
Current – Non Rep. Surge 50, 60Hz (Itsm)
|
550A, 650A
|
|
|
SCR Type
|
Standard Recovery
|
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
|
Mounting Type
|
Through Hole
|
|
|
Package / Case
|
TO-220-3
|
|
|
Supplier Device Package
|
TO-220 Non-Isolated Tab
|
