S3MB-13-F
INQUIRY ONLINE
|
Category
|
Discrete Semiconductor Products
Diodes
Rectifiers
Single
|
|
|
Mfr
|
Diodes Incorporated
|
|
|
Series
|
–
|
|
|
Packaging
|

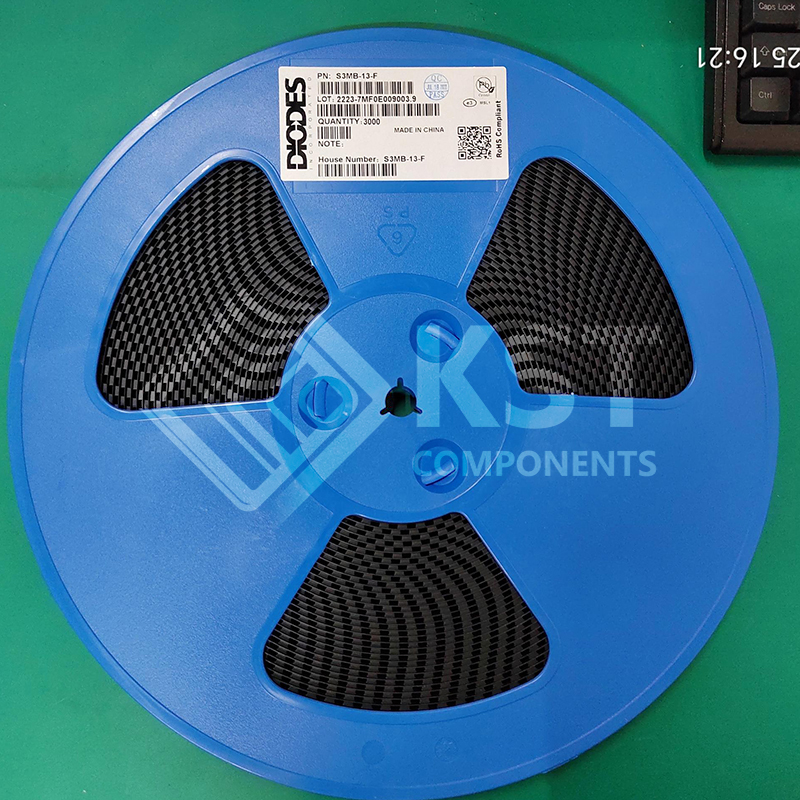

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Technology
|
Standard
|
|
|
Voltage – DC Reverse (Vr) (Max)
|
1000 V
|
|
|
Current – Average Rectified (Io)
|
3A
|
|
|
Voltage – Forward (Vf) (Max) @ If
|
1.15 V @ 3 A
|
|
|
Speed
|
Standard Recovery >500ns, > 200mA (Io)
|
|
|
Current – Reverse Leakage @ Vr
|
10 µA @ 1000 V
|
|
|
Capacitance @ Vr, F
|
40pF @ 4V, 1MHz
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|

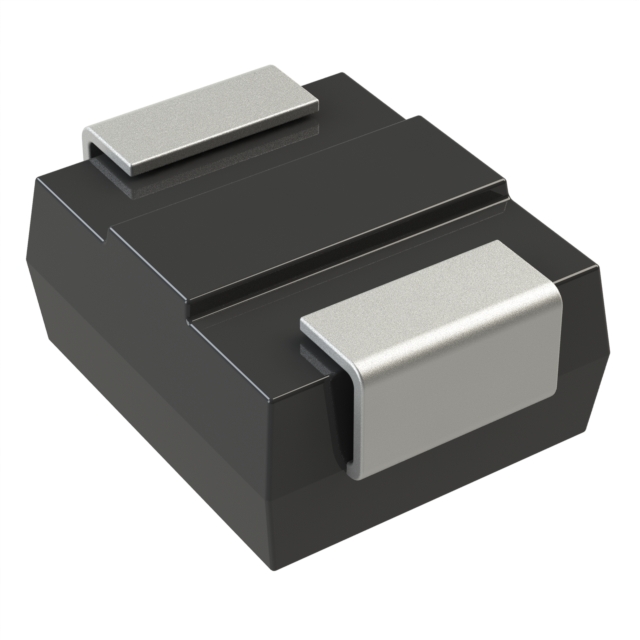

DO-214AA, SMB
|
|
|
Supplier Device Package
|
SMB
|
|
|
Operating Temperature – Junction
|
-65°C ~ 150°C
|
|
|
Base Product Number
|
S3M
|
