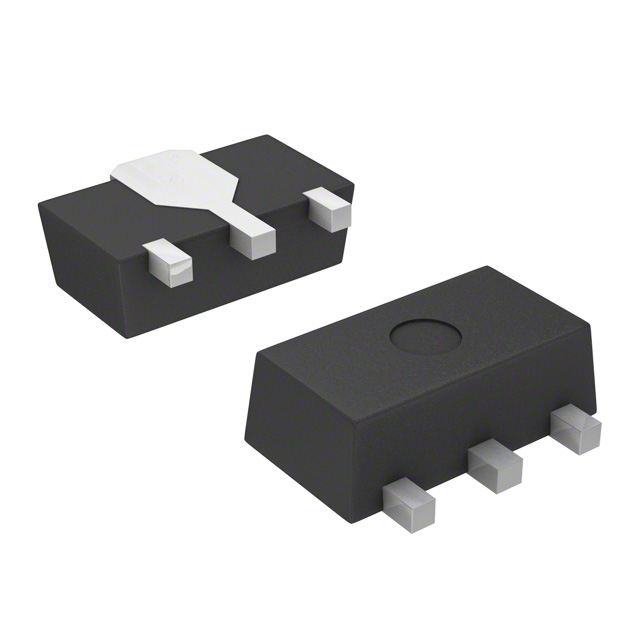

    S-812C30AUA-C2KT2G

    The S-812C Series is a high-withstand voltage regulator IC which is developed by using the CMOS technology.
    This IC is suitable for applications which require withstand because its maximum voltage for operation is as high
    as 16 V, also for portable device having the low current consumption because this IC not only has the low
    current consumption but also a ON/OFF circuit. This IC operates stably due to the internal phase compensation
    circuit so that users are able to use ceramic capacitor as the output capacitor.

    Category:

    Download Details PDF
    Notice:

    In stock will ship in 2 days. Real-time inventory pls confirm with us.

    INQUIRY ONLINE




      SPECIFICATION

       Output voltage: 2.0 V to 6.0 V, selectable in 0.1 V step
       Input voltage: 16 V max.
       Output voltage accuracy: 2.0%
       Dropout voltage: 120 mV typ. (5.0 V output product, IOUT = 10 mA)
       Current consumption: During operation: 1.0 A typ., 1.8 A max. (3.0 V output product)
       Output current: Possible to output 50 mA (3.0 V output product, VIN = 5 V)*1
      Possible to output 75 mA (5.0 V output product, VIN = 7 V)*1
       Built-in ON/OFF circuit: Selectable available / unavailable of power-off function
      Selectable active “H” / “L” in the regulator
       Built-in short-circuit protection circuit: Selectable available / unavailable of short-circuit protection circuit
      Available short-circuit protection: Short-circuit current 40 mA typ.
       Operation temperature range: Ta = 40C to 85C
       Lead-free, Sn 100%, halogen-free*2
