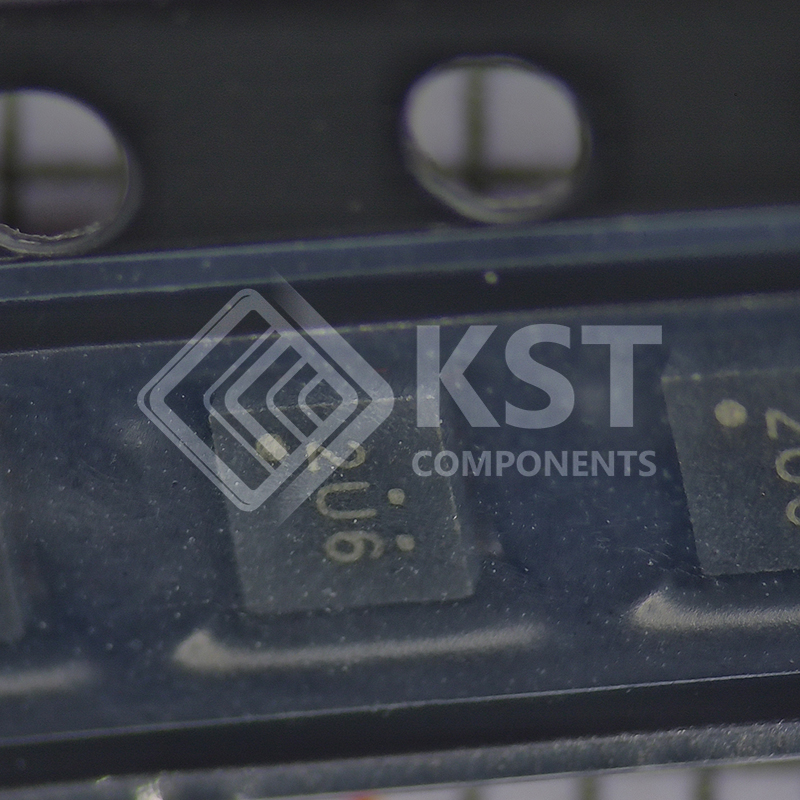

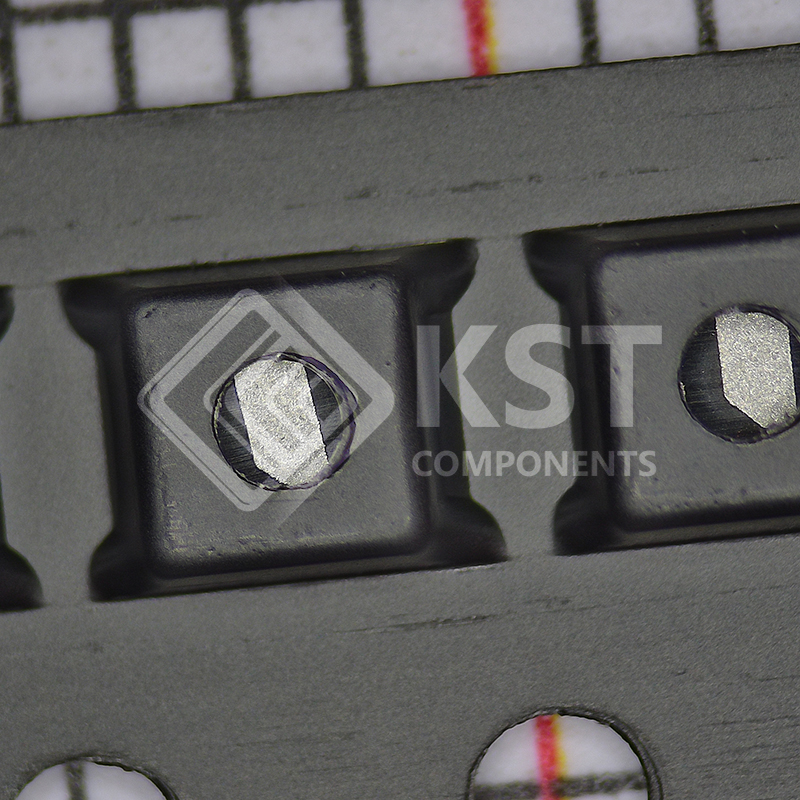

RT5797ALGQW

The RT5797A is a high efficiency synchronous stepdown DC-DC converter. Its input voltage range is from
2.7V to 6V and provides an adjustable regulated output
voltage from 0.6V to 3.4V while delivering up to 3A of
output current.
The internal synchronous low on-resistance power
switches increase efficiency and eliminate the need for
an external Schottky diode. The Current Mode
Constant-On-time (CMCOT) operation with internal
compensation allows the transient response to be
optimized over a wide range of loads and output
capacitors. The RT5797A is available in the WDFN-8L
2×2 and WDFN-8SL 2×2 packages.
The recommended junction temperature range is −40C
to 125C, and the ambient temperature range is −40C
to 85C.


Download Details PDF

Notice:

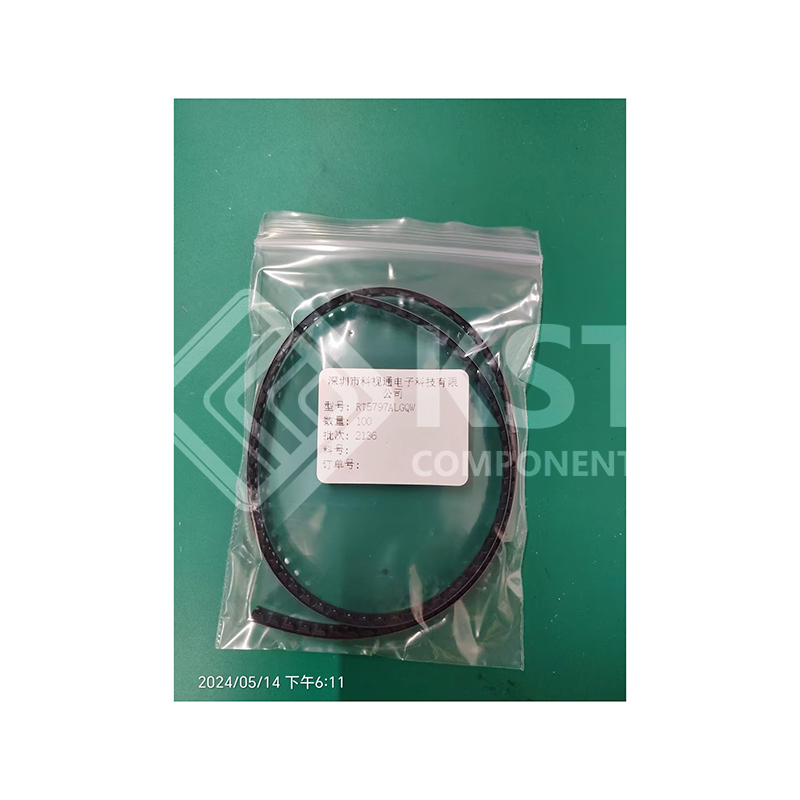

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE




    SPECIFICATION

    ⚫ Efficiency Up to 95%
    ⚫ RDS(ON) 100m HS / 70m LS
    ⚫ VIN Range 2.7V to 6V
    ⚫ VREF 0.6V with 1% Accuracy at 25C
    ⚫ CMCOT™ Control Loop Design for Best
    Transient Response, Robust Loop Stability with
    Low-ESR (MLCC) COUT
    ⚫ Soft-Start 1.2ms
    ⚫ Power Saving in Light Load
