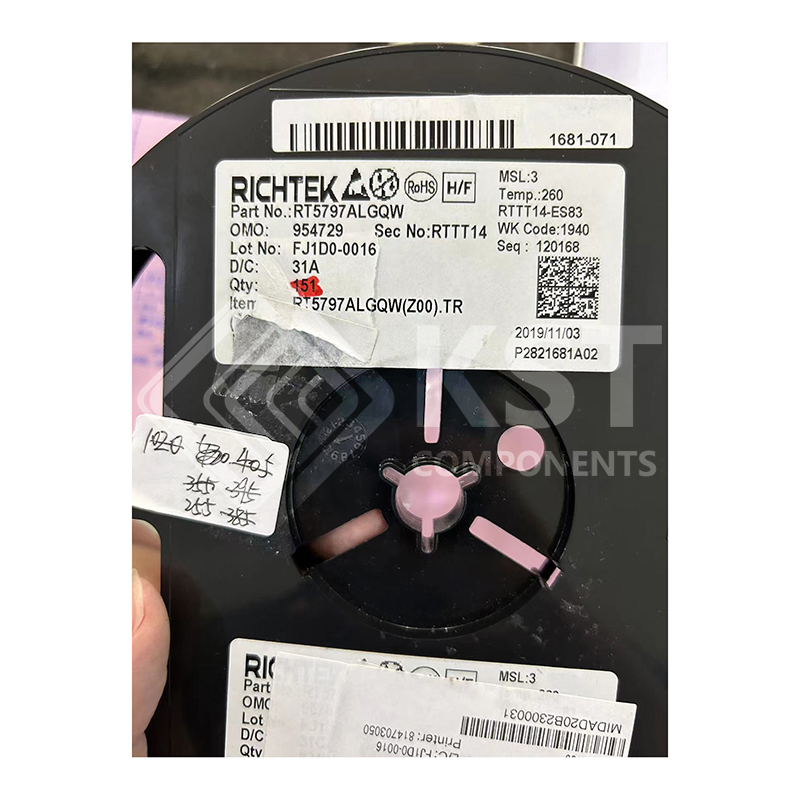

RT5797ALGQW

The RT5797A is a high efficiency synchronous stepdown DC-DC converter. Its input voltage range is from
2.7V to 6V and provides an adjustable regulated output
voltage from 0.6V to 3.4V while delivering up to 3A of
output current.
The internal synchronous low on-resistance power
switches increase efficiency and eliminate the need for
an external Schottky diode. The Current Mode
Constant-On-time (CMCOT) operation with internal
compensation allows the transient response to be
optimized over a wide range of loads and output
capacitors. The RT5797A is available in the WDFN-8L
2×2 and WDFN-8SL 2×2 packages.
The recommended junction temperature range is −40C
to 125C, and the ambient temperature range is −40C
to 85C
