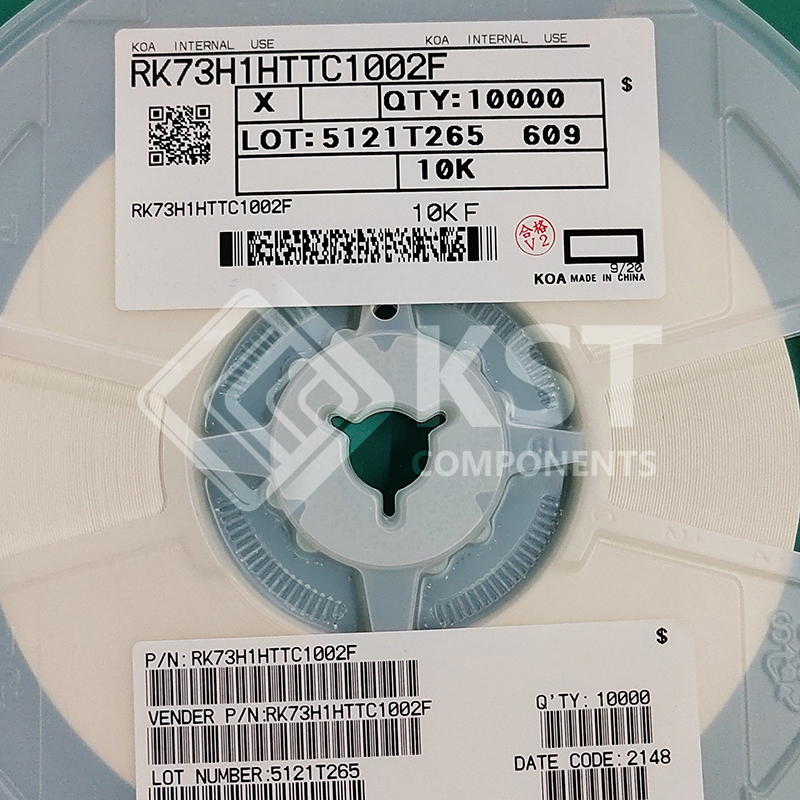

RK73H1HTTC1002F

For resistors operated at an ambient
temperature of 70°C or higher, the
power shall be derated in accordance
with the above derating curve.
% Rated Power 100
80
60
40
20
-60 -40 -20 0 40 60 80 100 140
125
20
Terminal Part Temperature
(°C)
0
-55
120
155
160
1H, 1E, 1J, 2A, 2B, 2E,
W2H, W3A (1W)
70
When the terminal part temperature of the resistor exceeds the rated terminal part
temperature shown above, the power shall be derated according to the derating curve.
Please refer to “Introduction of the derating curves based on the terminal part temperature”
on the beginning of our catalog before use
