    REF5050AIDGKR

    The REF50xx is a family of low-noise, low-drift, very
    high precision voltage references. These references
    are capable of both sinking and sourcing current, and
    have excellent line and load regulation.
    Excellent temperature drift (3 ppm/°C) and high
    accuracy (0.05%) are achieved using proprietary
    design techniques. These features, combined with
    very low noise, make the REF50xx family an excellent
    choice for use in high-precision data acquisition
    systems.
    Each reference voltage is available in both high grade
    (REF50xxIDGK and REF50xxID) and standard grade
    (REF50xxAIDGK and REF50xxAID). The reference

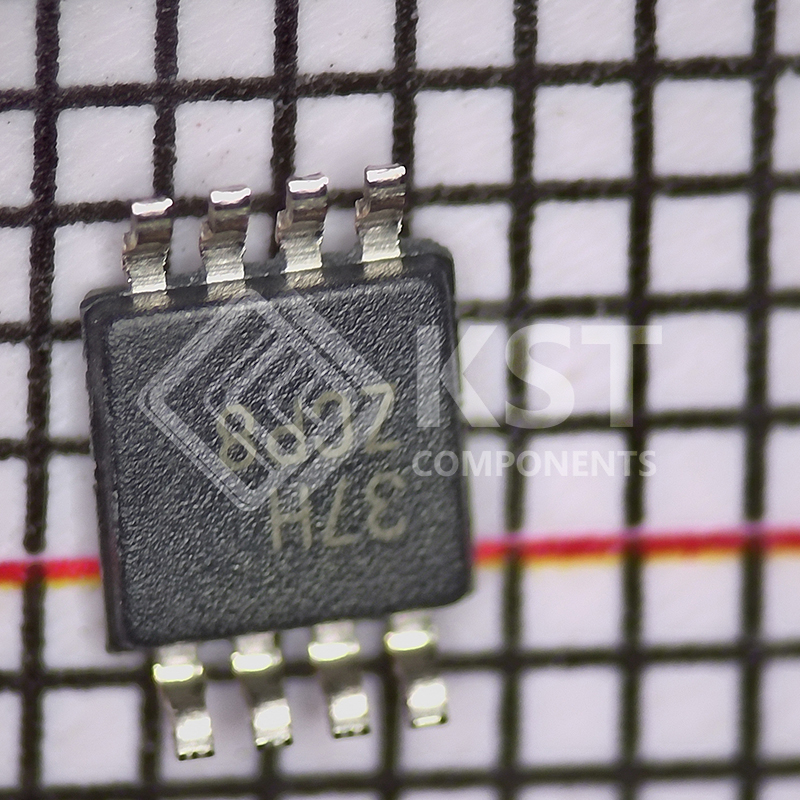

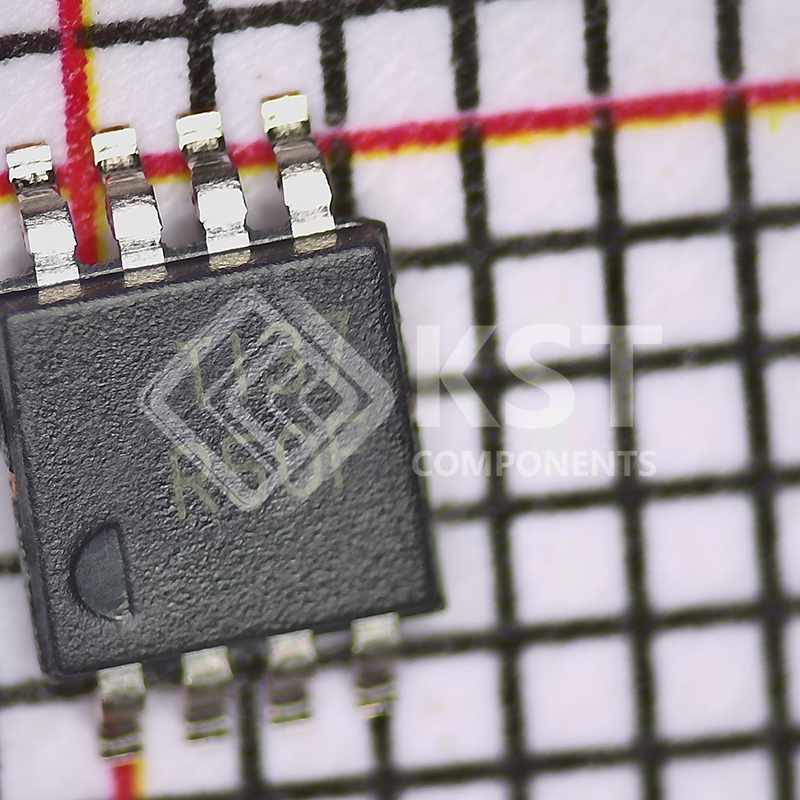

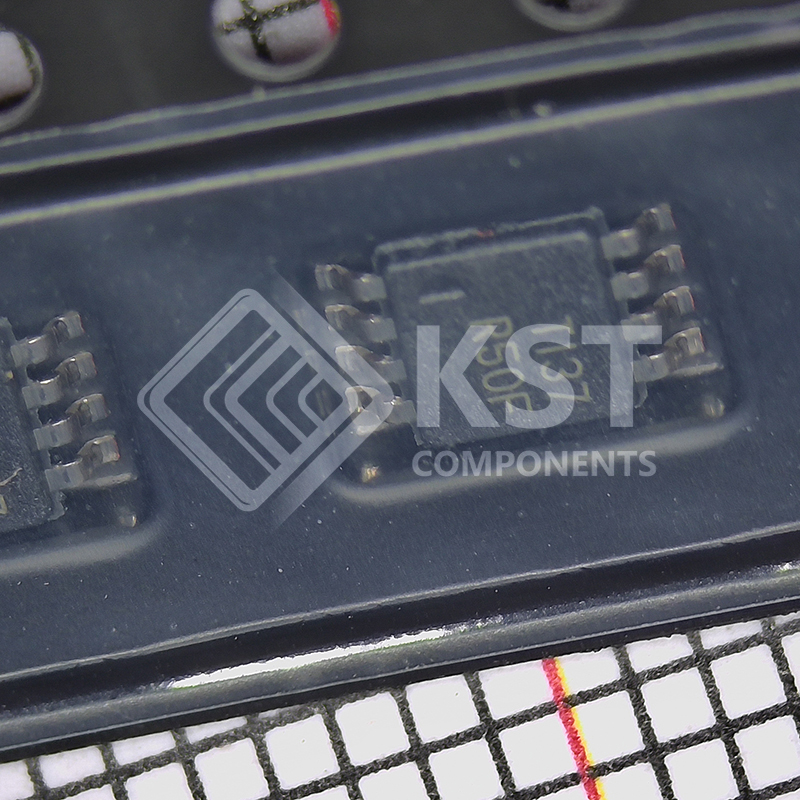

    voltages are offered in 8-pin VSSOP and SOIC
    packages, and are specified from –40°C to 125°C.

    Category:

    Download Details PDF
    Notice:

    In stock will ship in 2 days. Real-time inventory pls confirm with us.

    INQUIRY ONLINE




      SPECIFICATION

      • Low temperature drift:
      – High-grade: 3 ppm/°C (maximum)
      – Standard-grade: 8 ppm/°C (maximum)
      • High accuracy:
      – High-grade: 0.05% (maximum)
      – Standard-grade: 0.1% (maximum)
      • Low noise: 3 μVPP/V
      • Excellent long-term stability:
      – 22 ppm after first 1000 hours (SOIC-8)
      – 50 ppm after first 1000 hours (VSSOP-8)
      • High-output current: ±10 mA
      • Temperature range: –40°C to 125°C
