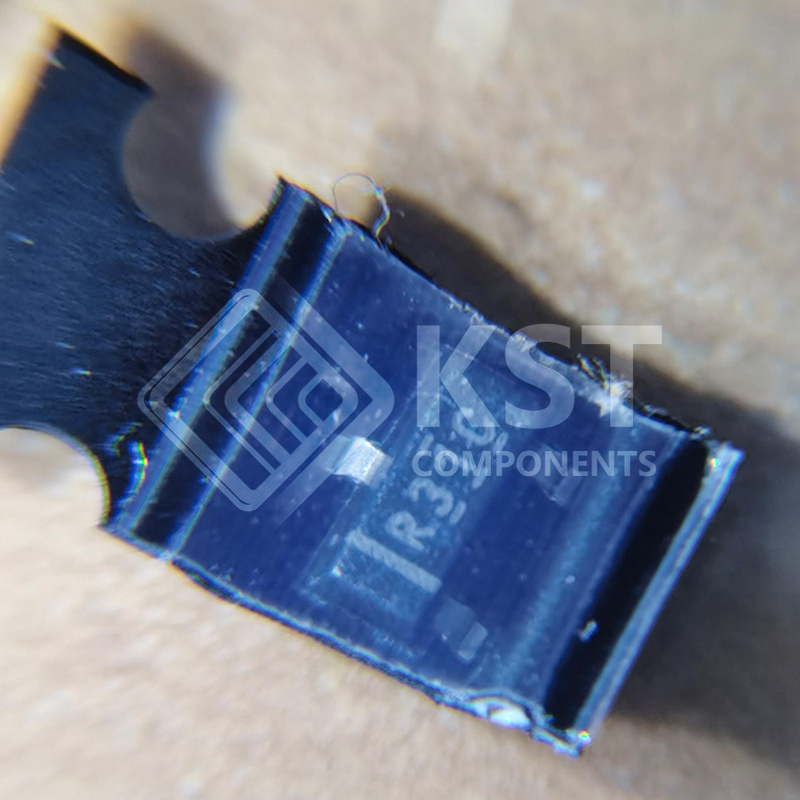

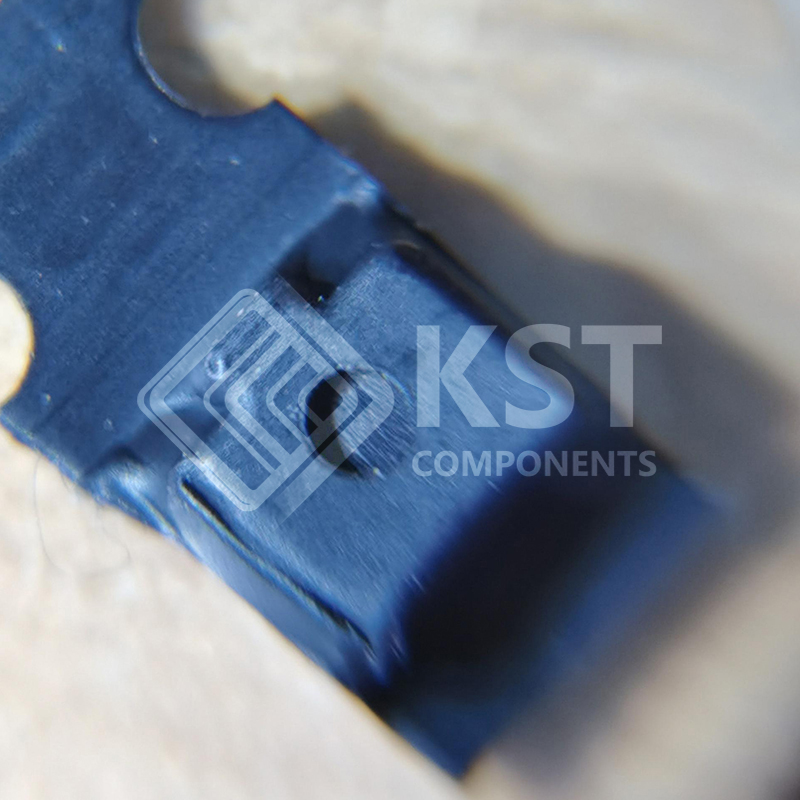

REF3125AIDBZR

The REF31xx is a family of precision, low power, low
dropout, series voltage references available in the
tiny 3-pin SOT-23 package.
The REF31xx’s small size and low power
consumption (100 μA typical) make it ideal for
portable and battery-powered applications. The
REF31xx does not require a load capacitor, but is
stable with any capacitive load and can sink or
source up to 10 mA of output current.
Unloaded, the REF31xx can operate on supplies
down to 5 mV above the output voltage. All models
are specified for the wide temperature range of –40°C
to +125°C.


Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE




    SPECIFICATION

    • MicroSize Package: SOT23-3
    • Low Dropout: 5 mV
    • High Output Current: ±10 mA
    • High Accuracy: 0.2% Maximum
    • Low IQ: 115 µA Maximum
    • Excellent Specified Drift Performance:
    – 15 ppm/°C (Maximum) from 0°C to +70°C
    – 20 ppm/°C (Maximum) from –40°C to +125°C
