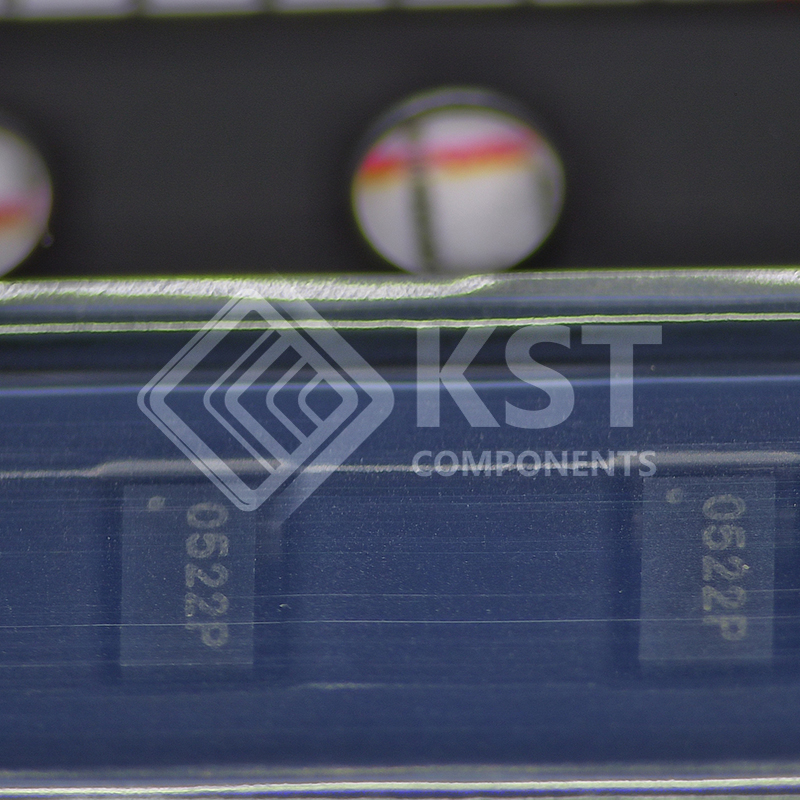

RCLAMP0522P.TCT
INQUIRY ONLINE
|
Category
|
Circuit Protection
Transient Voltage Suppressors (TVS)
TVS Diodes
|
|
|
Mfr
|
Semtech Corporation
|
|
|
Series
|
RailClamp®
|
|
|

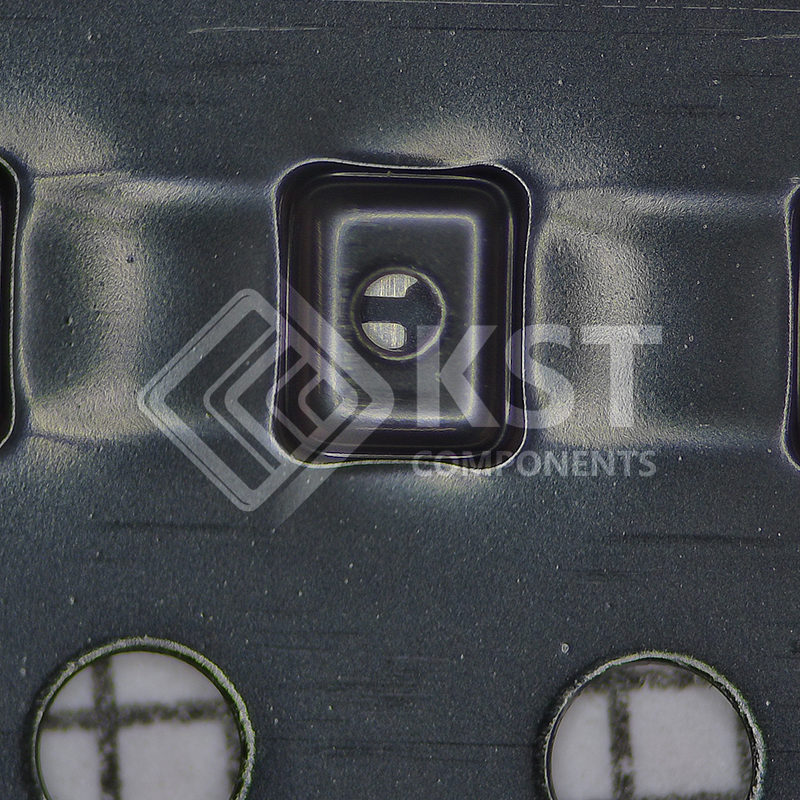

Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Type
|
Steering (Rail to Rail)
|
|
|
Unidirectional Channels
|
2
|
|
|
Voltage – Reverse Standoff (Typ)
|
5V (Max)
|
|
|
Voltage – Breakdown (Min)
|
6V
|
|
|
Voltage – Clamping (Max) @ Ipp
|
15V
|
|
|
Current – Peak Pulse (10/1000µs)
|
5A (8/20µs)
|
|
|
Power – Peak Pulse
|
150W
|
|
|
Power Line Protection
|
Yes
|
|
|
Applications
|
HDMI
|
|
|
Capacitance @ Frequency
|
0.8pF @ 1MHz
|
|
|
Operating Temperature
|
-55°C ~ 125°C (TJ)
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
6-UFDFN
|
|
|
Supplier Device Package
|
SLP1610P4
|
|
|
Base Product Number
|
RCLAMP0522
|
