RB521S30T1G
INQUIRY ONLINE
|
Category
|
Discrete Semiconductor Products
Diodes
Rectifiers
Single
|
|
|
Mfr
|
onsemi
|
|
|
Series
|
–
|
|
|
Packaging
|

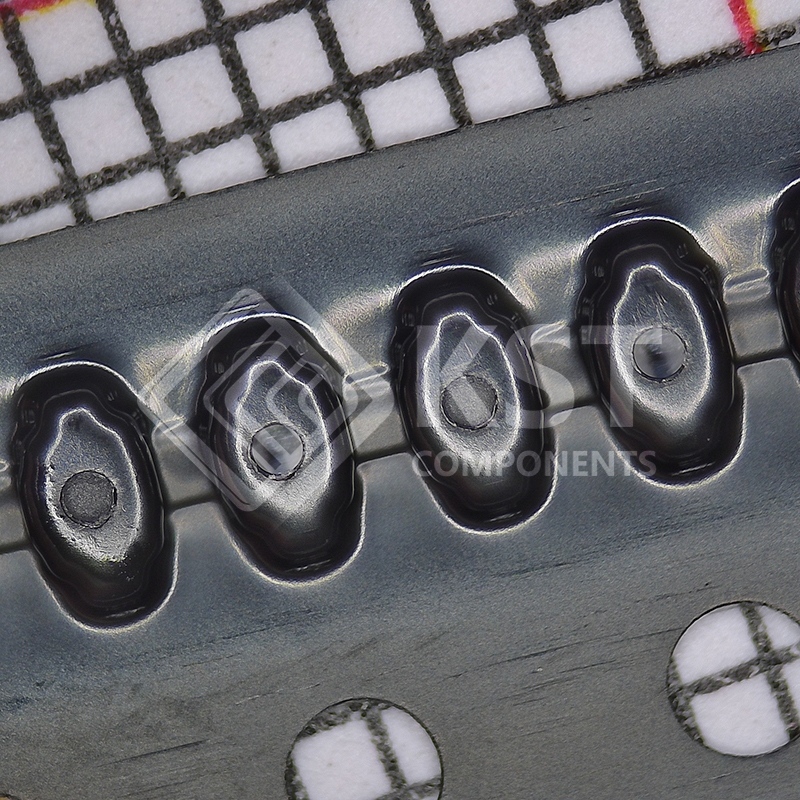

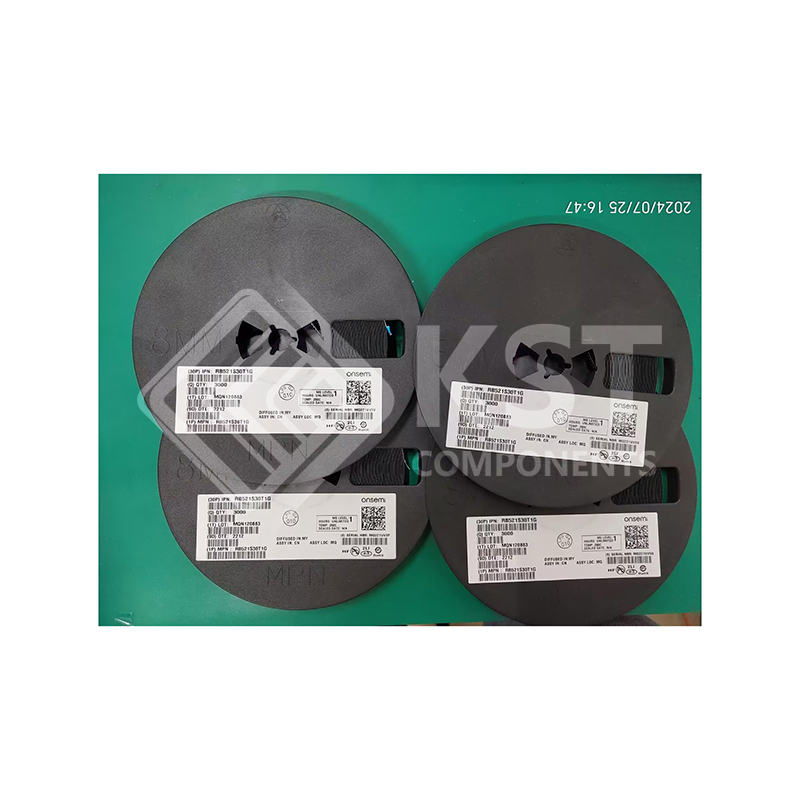

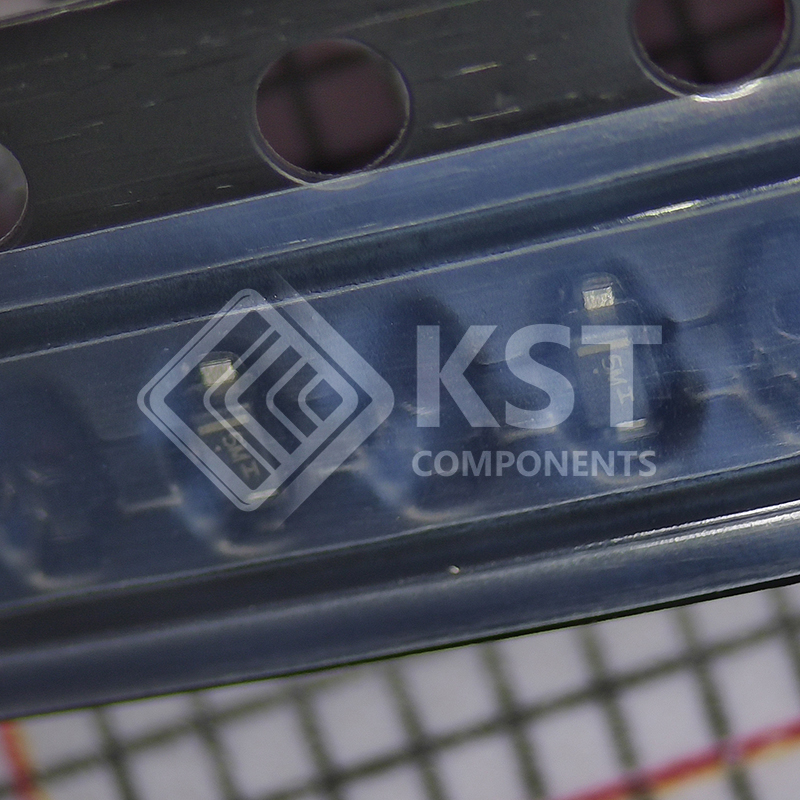

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Technology
|
Schottky
|
|
|
Voltage – DC Reverse (Vr) (Max)
|
30 V
|
|
|
Current – Average Rectified (Io)
|
200mA
|
|
|
Voltage – Forward (Vf) (Max) @ If
|
500 mV @ 200 mA
|
|
|
Speed
|
Small Signal =< 200mA (Io), Any Speed
|
|
|
Current – Reverse Leakage @ Vr
|
30 µA @ 10 V
|
|
|
Capacitance @ Vr, F
|
–
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|

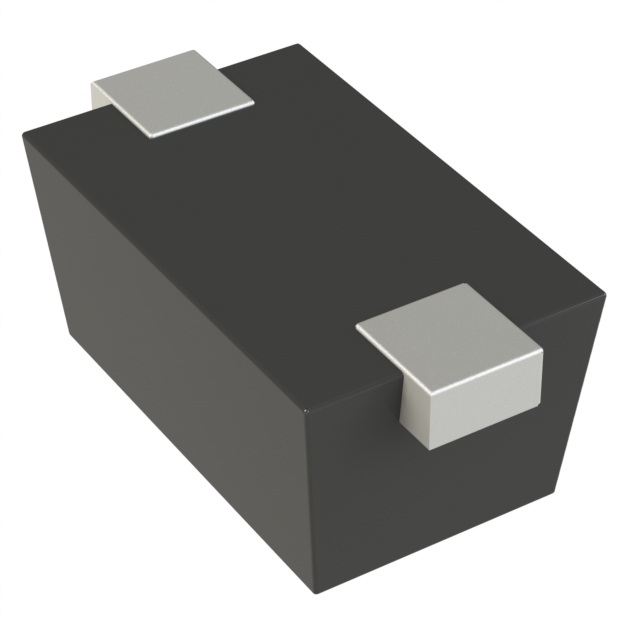

SC-79, SOD-523
|
|
|
Supplier Device Package
|
SOD-523
|
|
|
Operating Temperature – Junction
|
-55°C ~ 125°C
|
|
|
Base Product Number
|
RB521
|
