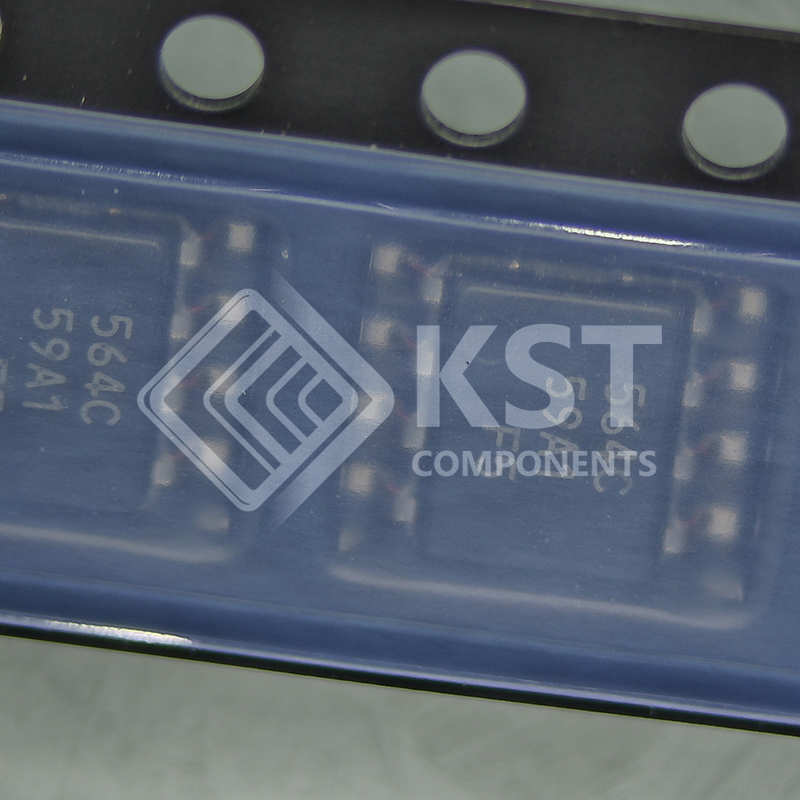

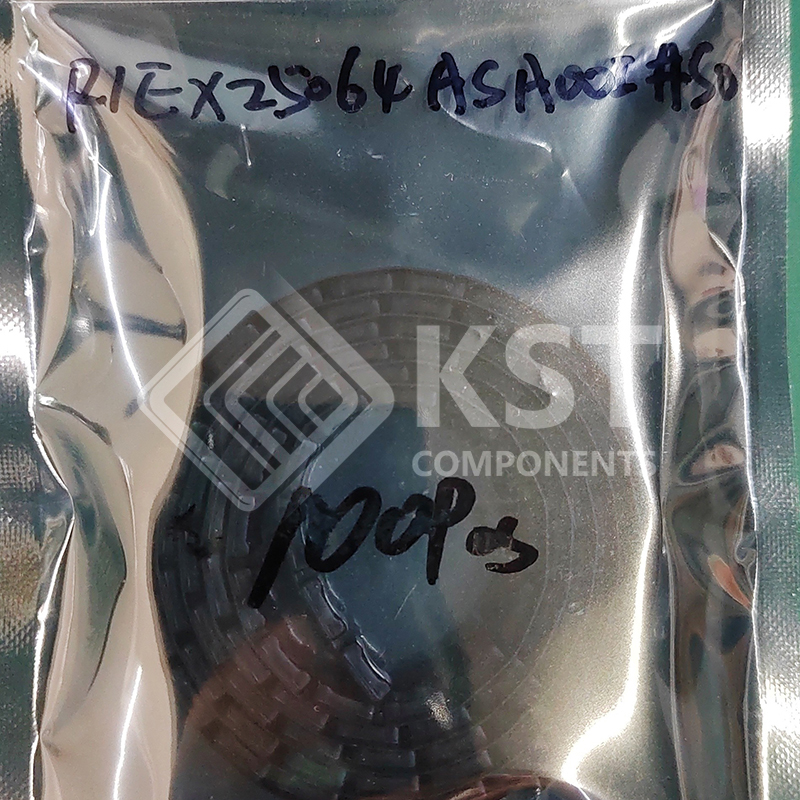

    R1EX25064ASA00I#S0

    R1EX25xxx Series is the Serial Peripheral Interface compatible (SPI) EEPROM (Electrically Erasable and
    Programmable ROM). It realizes high speed, low power consumption and a high level of reliability by employing
    advanced MONOS memory technology and CMOS process and low voltage circuitry technology. It also has a 32-byte
    page programming function to make it’s write operation faster.

    Category:

    Download Details PDF
    Notice:

    In stock will ship in 2 days. Real-time inventory pls confirm with us.

    INQUIRY ONLINE




      SPECIFICATION

      Single supply: 1.8 V to 5.5 V
      • Serial Peripheral Interface compatible (SPI bus)
      ⎯ SPI mode 0 (0,0), 3 (1,1)
      • Clock frequency: 5 MHz (2.5 V to 5.5 V), 3 MHz (1.8 V to 5.5 V)
      • Power dissipation:
      ⎯ Standby: 2.0 μA (max)
      ⎯ Active (Read): 3.0 mA (max)
      ⎯ Active (Write): 3.5 mA (max)
      • Automatic page write: 32-byte/page
      • Write cycle time: 5 ms
      • Endurance: 1,000k or more Cycles @25°C
      • Data retention: 100 or more Years @25°C
      • Small size packages: SOP-8pin, TSSOP-8pin
      • Shipping tape and reel
      ⎯ TSSOP-8pin : 3,000 IC/reel
      ⎯ SOP-8pin : 2,500 IC/reel
      • Temperature range: −40 to +85°C
      • Lead free product. (#U0, #S0)
      • Halogen free products. (#U0)
