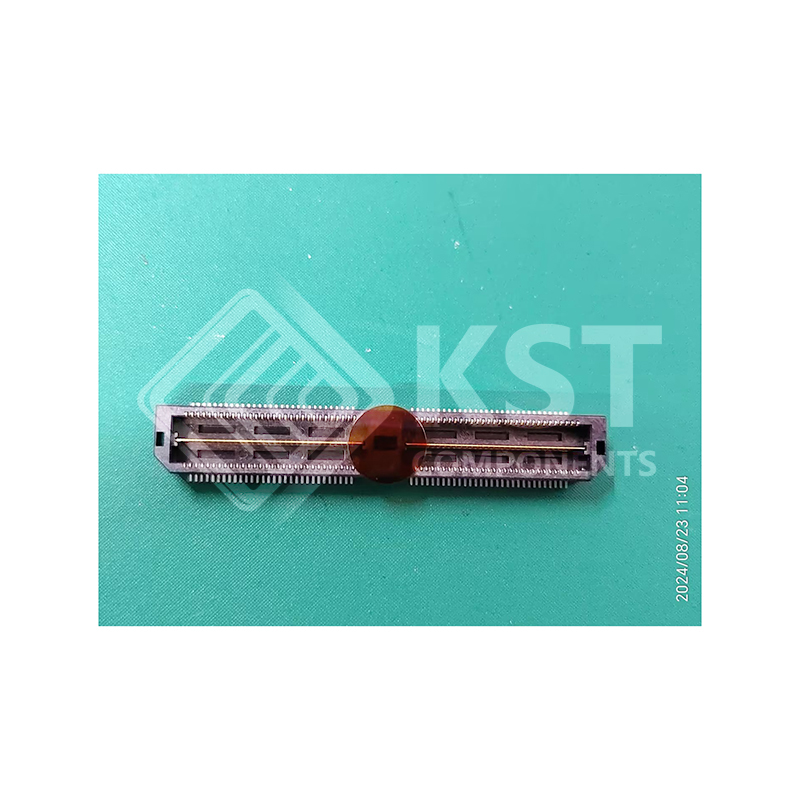

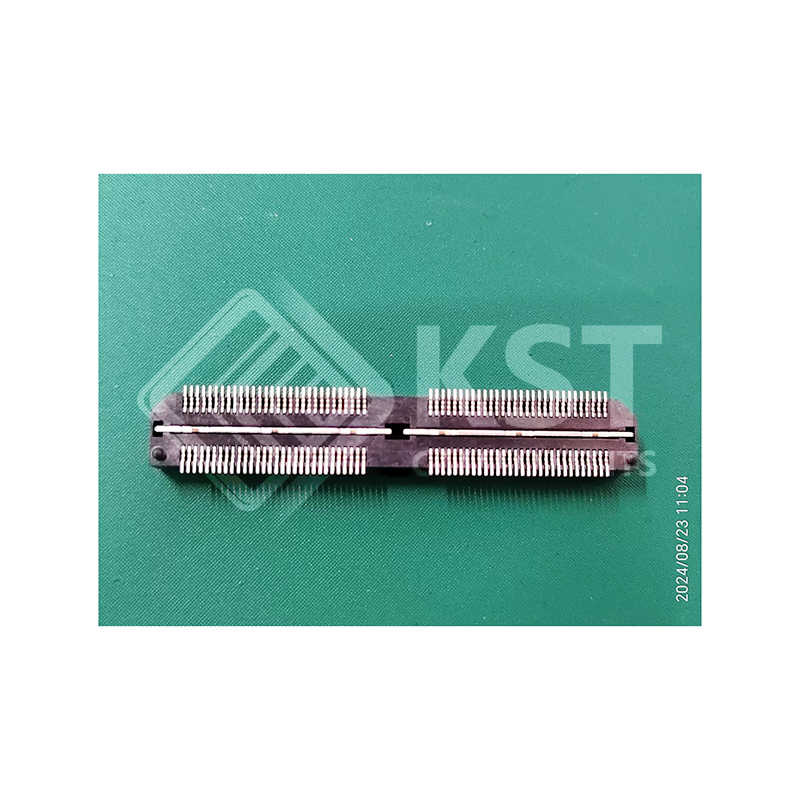

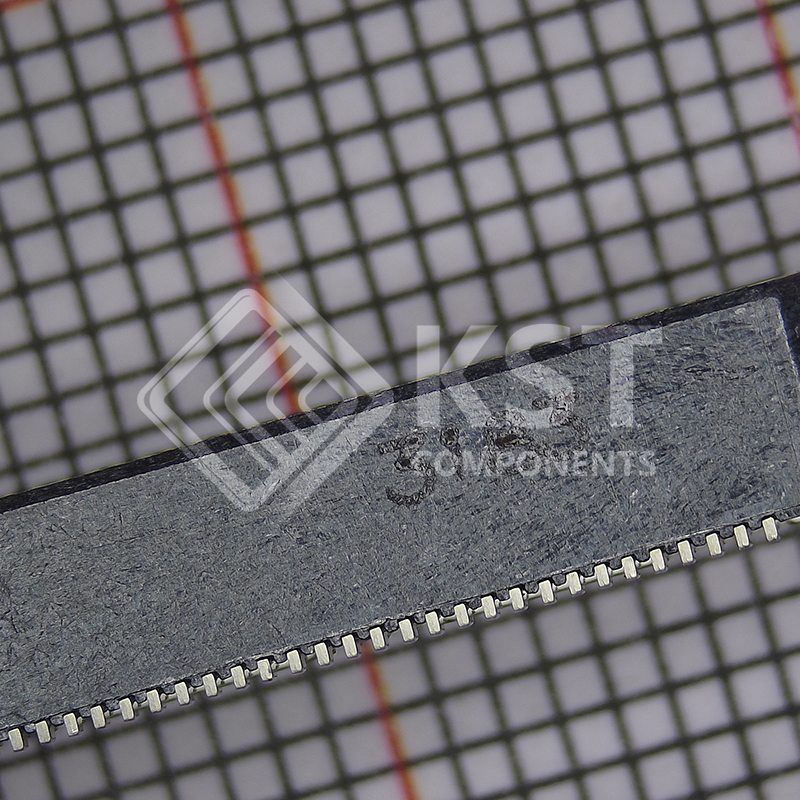

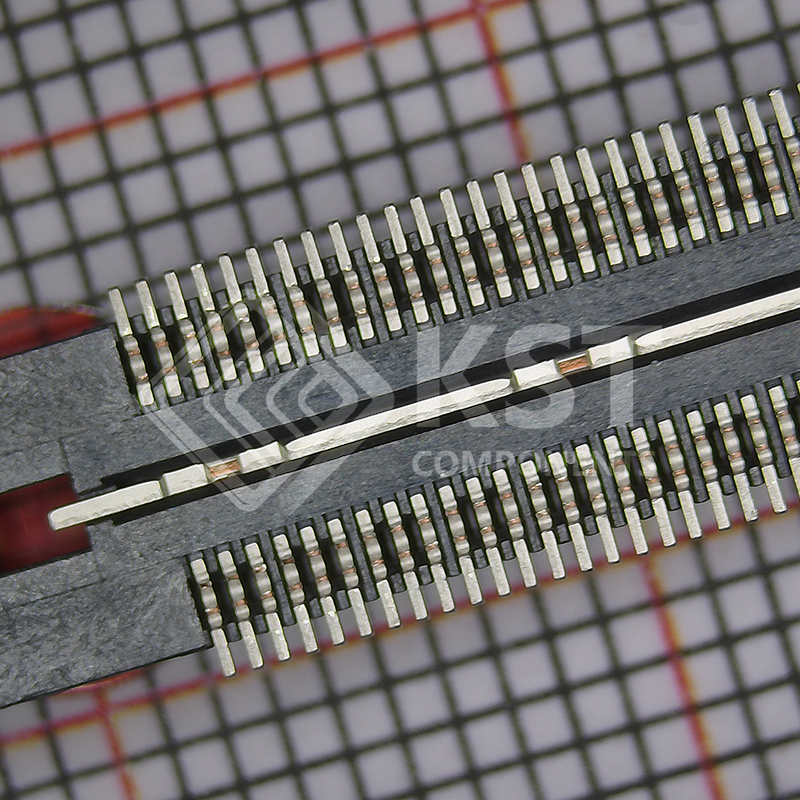

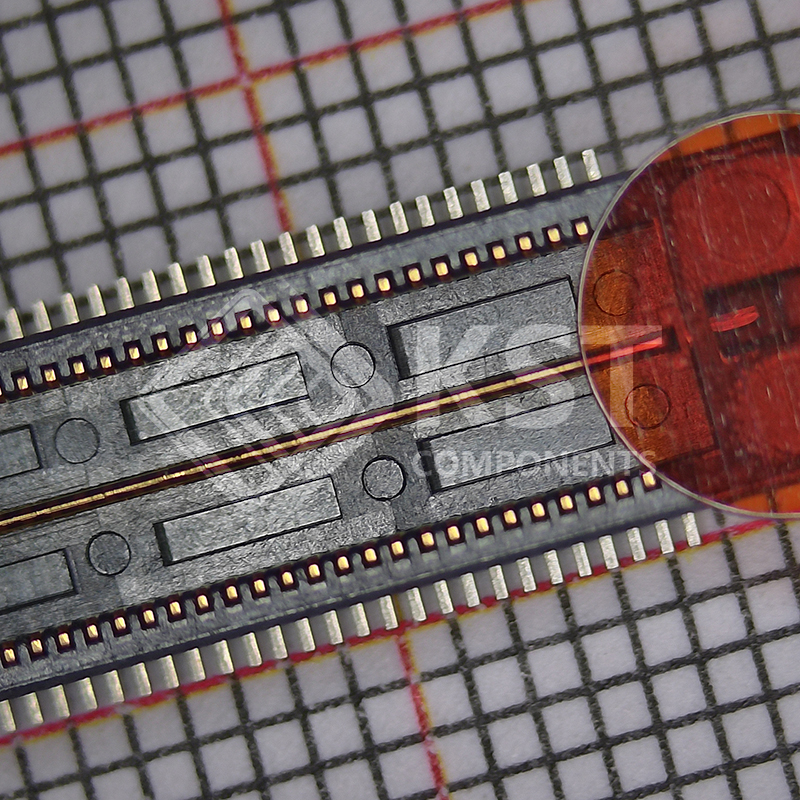

QTH-060-01-L-D-A-K-TR
INQUIRY ONLINE
|
Category
|
Connectors, Interconnects
Rectangular Connectors
Arrays, Edge Type, Mezzanine (Board to Board)
|
|
|
Manufacturer
|
Samtec Inc.
|
|
|
Series
|
Q Strip® QTH
|
|
|
Packaging
|

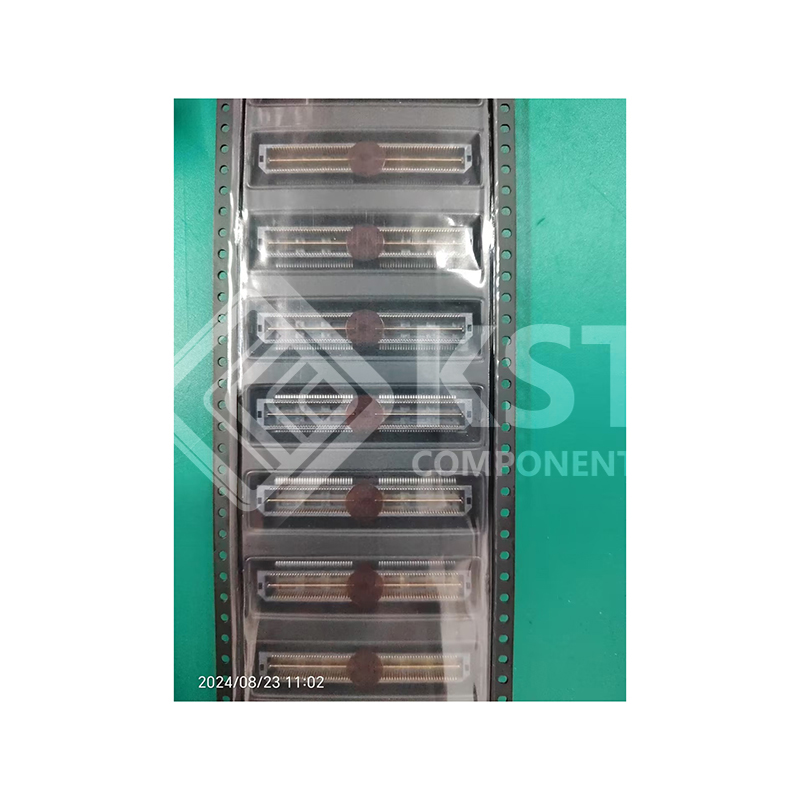

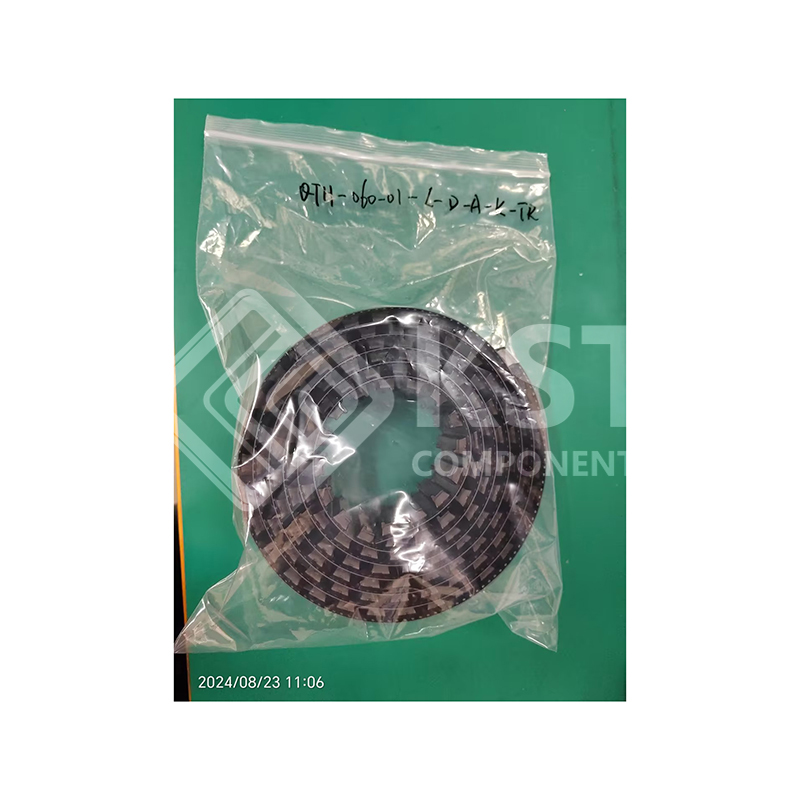

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Connector Type
|
Header, Outer Shroud Contacts
|
|
|
Number of Positions
|
120
|
|
|
Pitch
|
0.020″ (0.50mm)
|
|
|
Number of Rows
|
2
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Features
|
Board Guide, Ground Bus (Plane), Pick and Place
|
|
|
Contact Finish
|
Gold
|
|
|
Contact Finish Thickness
|
10.0µin (0.25µm)
|
|
|
Mated Stacking Heights
|
5mm
|
|
|
Height Above Board
|
0.160″ (4.06mm)
|
|
|
Base Product Number
|
QTH-060
|
