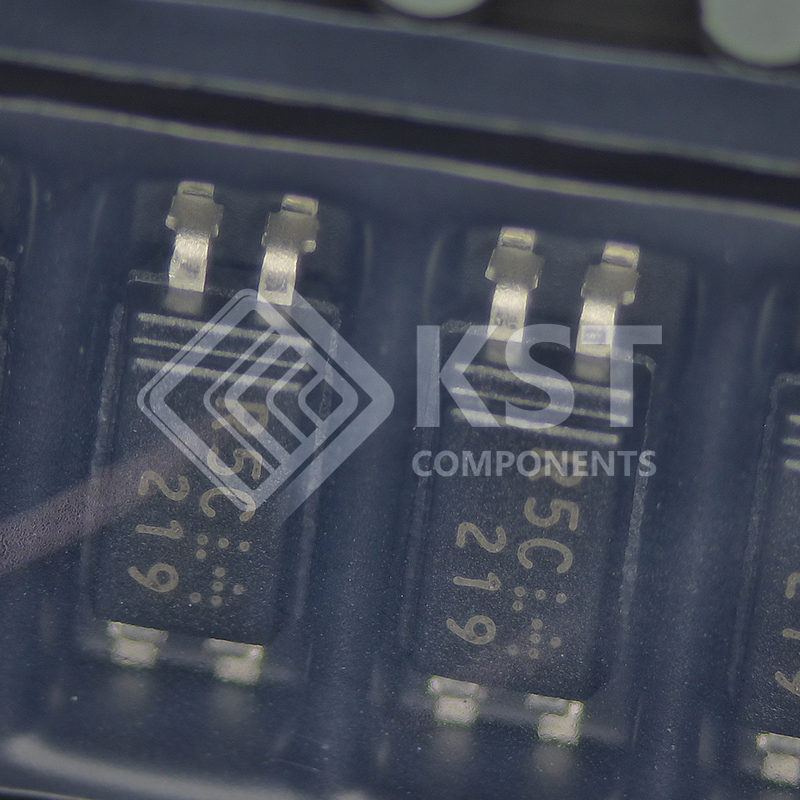

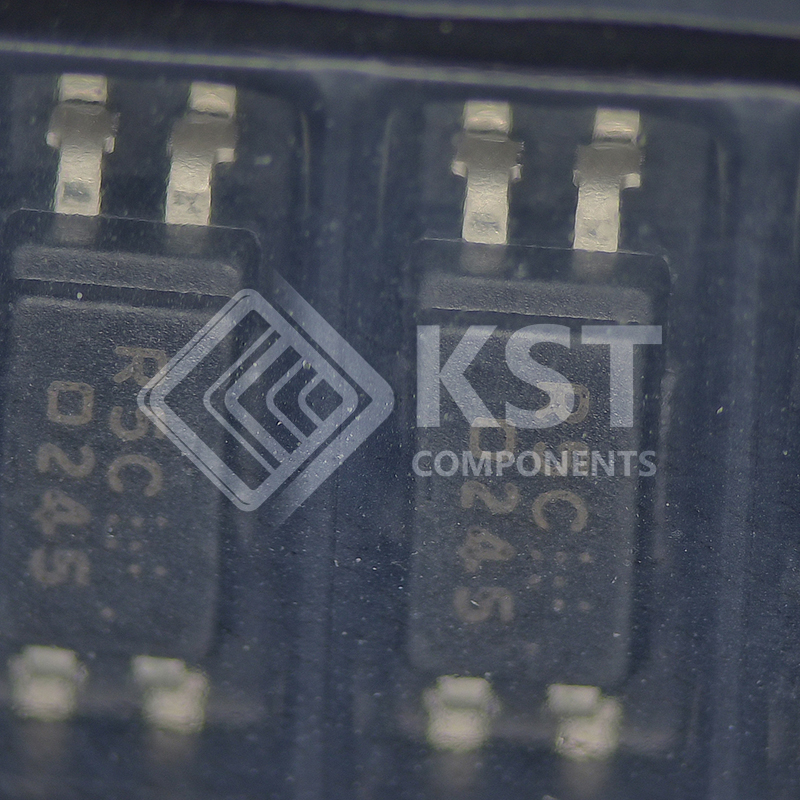

    PS2805C-1-F3-A

    The PS2805C-1 and PS2805C-4 are optically coupled isolators containing a GaAs light emitting diode and
    an NPN silicon phototransistor in a plastic SSOP for high density applications to realize an excellent cost
    performance.
    This package has shield effect to cut off ambient light.

    Categories: ,

    Download Details PDF
    Notice:

    In stock will ship in 2 days. Real-time inventory pls confirm with us.

    INQUIRY ONLINE




      SPECIFICATION

      • High isolation voltage (BV = 2 500 Vr.m.s.)
      • Small and thin package (4, 16-pin SSOP, Pin pitch 1.27 mm)
      • High collector to emitter voltage (VCEO : 80 V)
      • AC input response

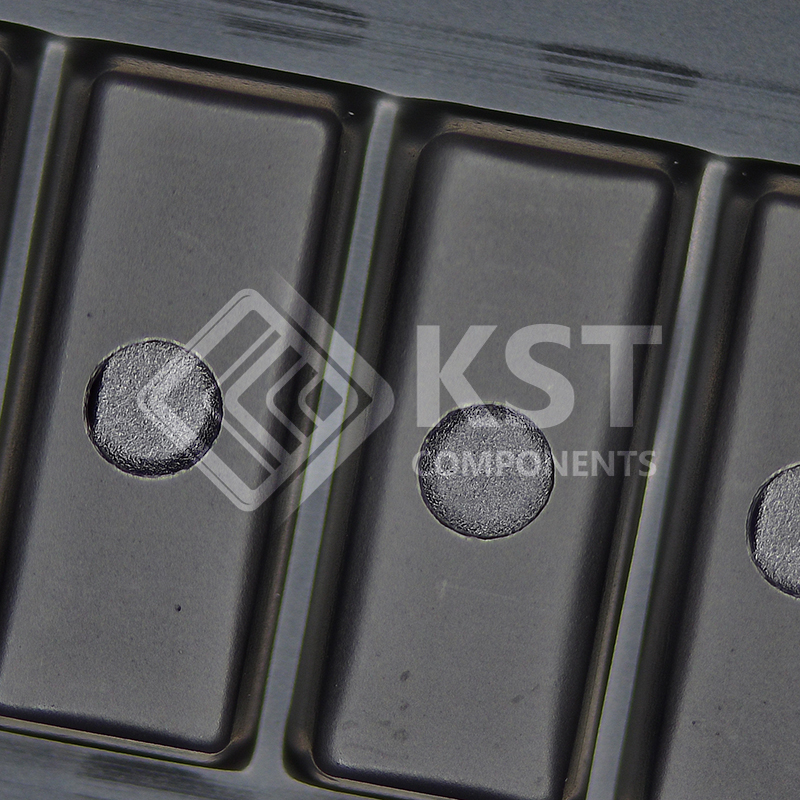

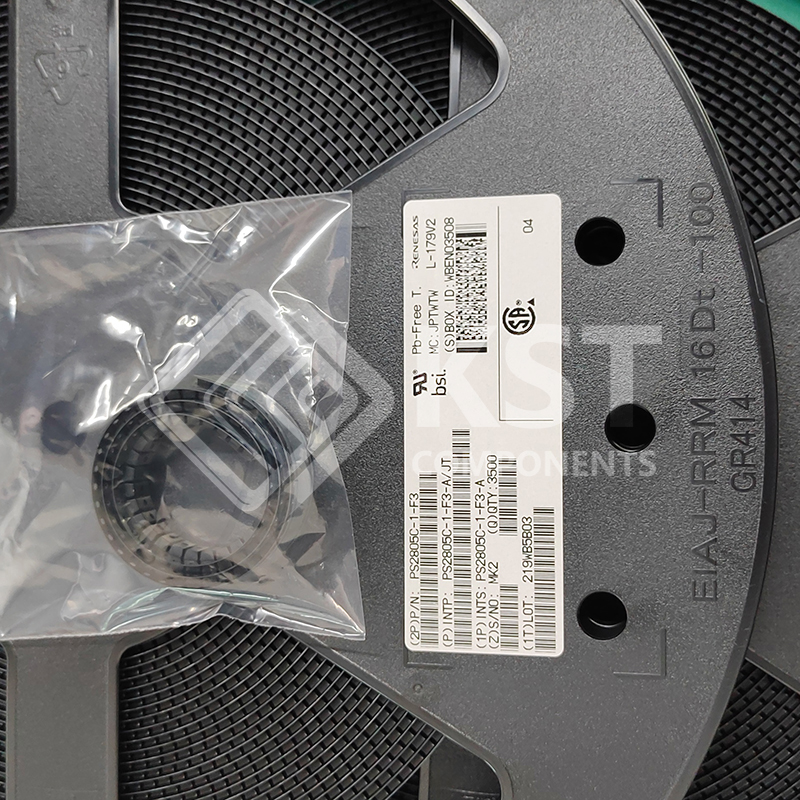

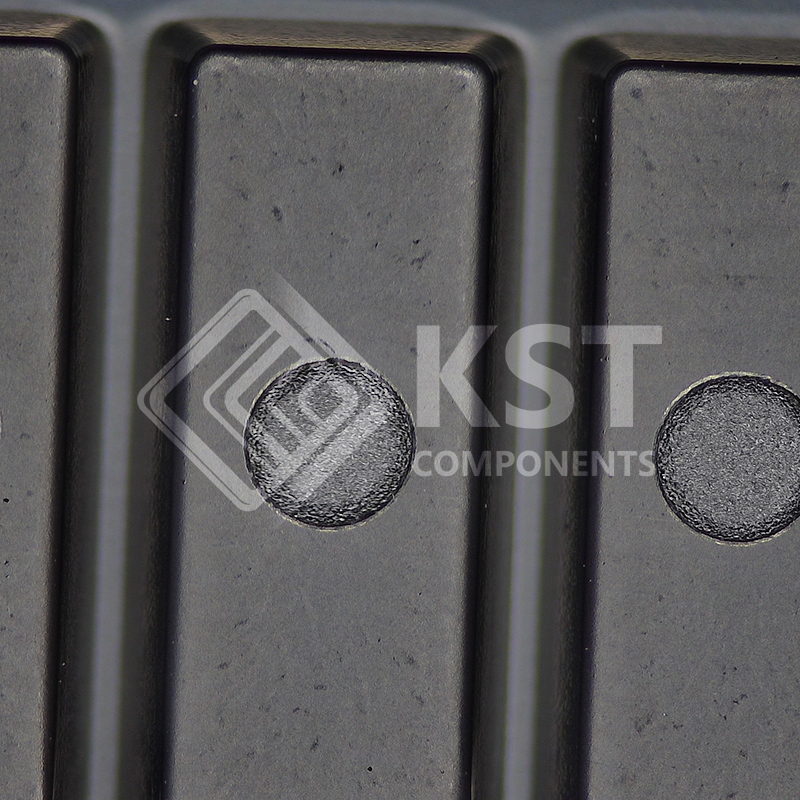

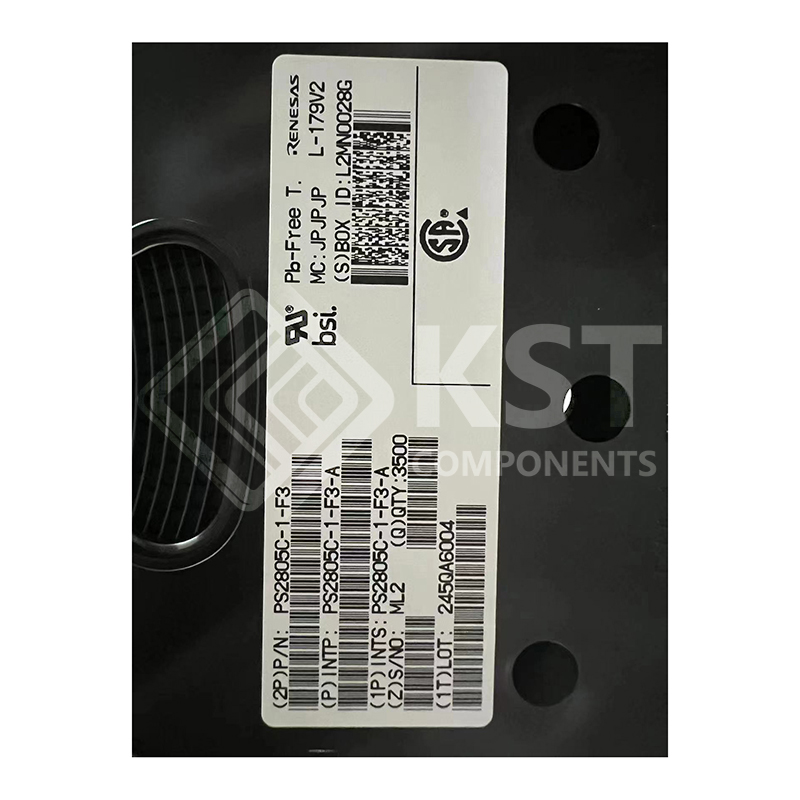

      • Embossed tape product：PS2805C-1-F3: 3 500 pcs/reel
      : PS2805C-4-F3: 2 500 pcs/reel
      • Pb-free product
      • Safety standards
      • UL approved: UL1577, Single protection
      • CSA approved: CAN/CSA-C22.2 No. 62368-1, Basic insulation
      • BSI approved: BS EN IEC 62368-1, Basic/Supplementary insulation
      (PS2805C-1 only)
      • VDE approved: DIN EN IEC 60747-5-5 (Option)
