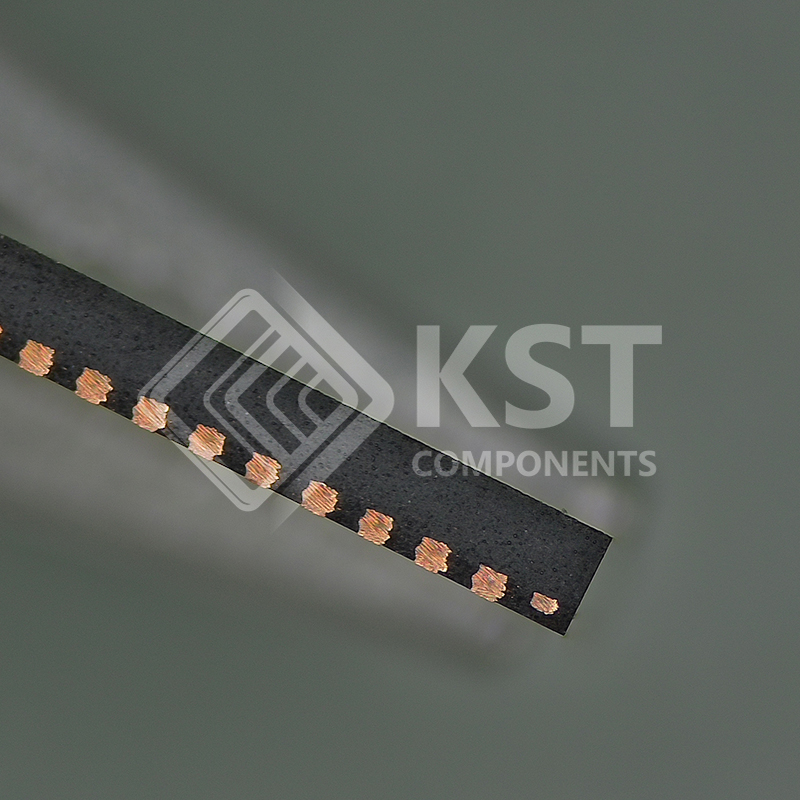

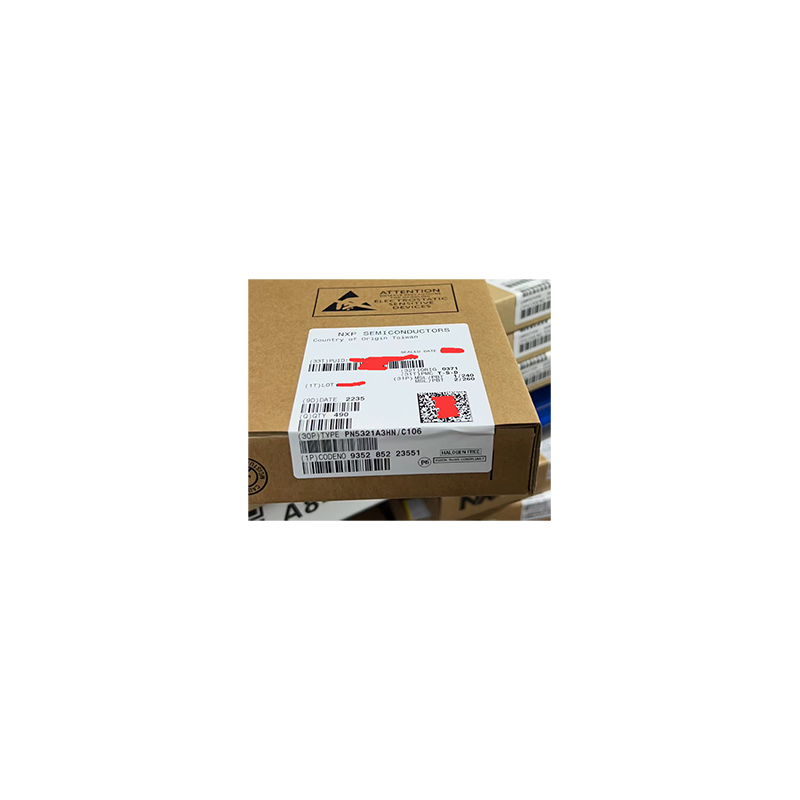

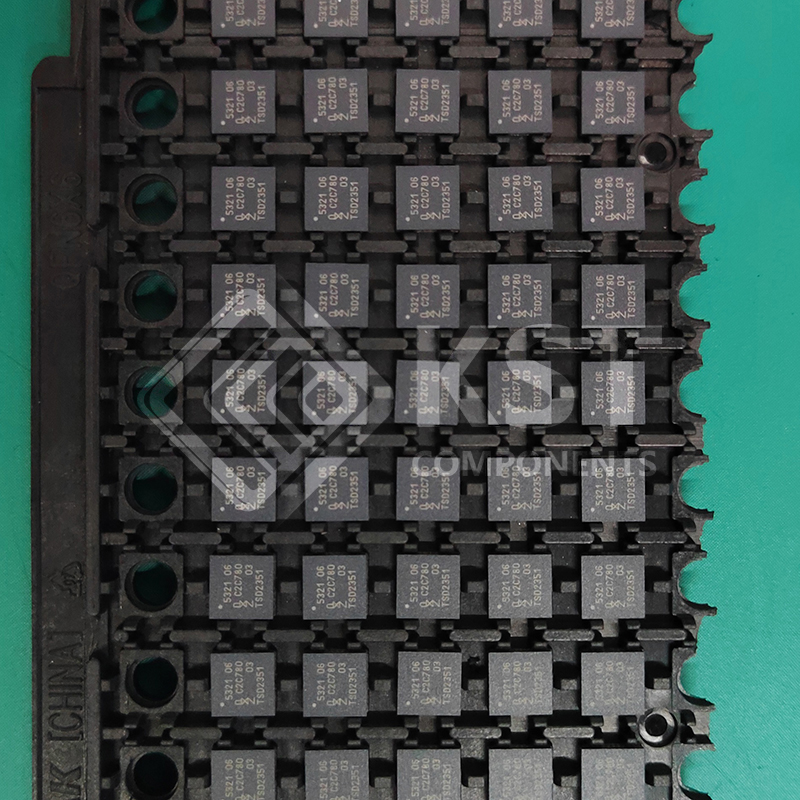

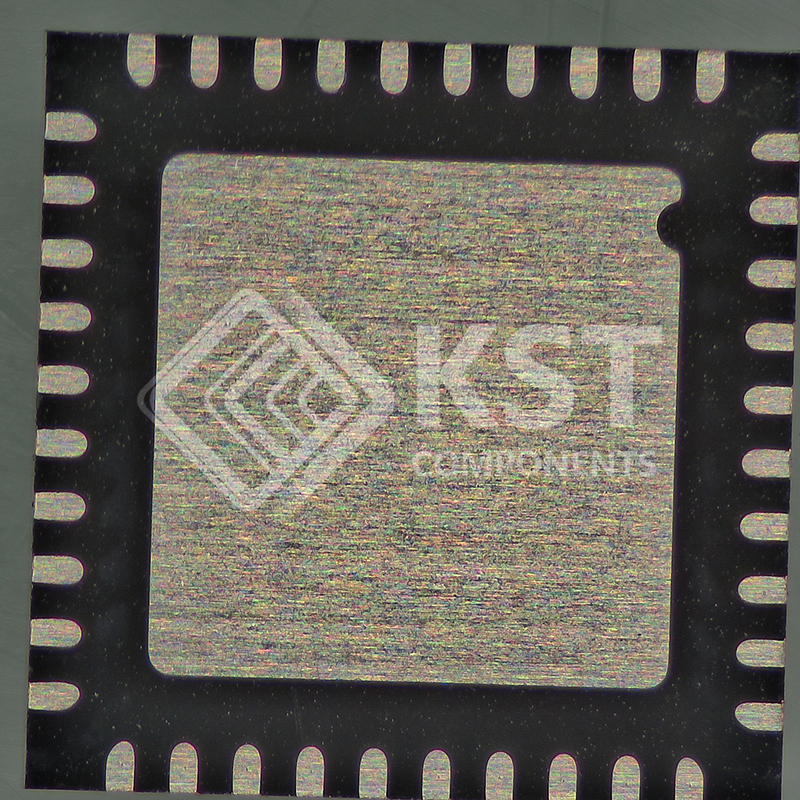

    PN5321A3HN/C106;55

    The PN532 is a highly integrated transceiver module for contactless communication at
    13.56 MHz based on the 80C51 microcontroller core. It supports 6 different operating
    modes:
    • ISO/IEC 14443A/MIFARE Reader/Writer
    • FeliCa Reader/Writer
    • ISO/IEC 14443B Reader/Writer
    • ISO/IEC 14443A/MIFARE Card MIFARE Classic 1K or MIFARE Classic 4K card
    emulation mode
    • FeliCa Card emulation
    • ISO/IEC 18092, ECMA 340 Peer-to-Peer
    The PN532 implements a demodulator and decoder for signals from
    ISO/IEC 14443A/MIFARE compatible cards and transponders. The PN532 handles the
    complete ISO/IEC 14443A framing and error detection (Parity & CRC).
    The PN532 supports MIFARE Classic 1K or MIFARE Classic 4K card emulation mode.
    The PN532 supports contactless communication using MIFARE Higher transfer speeds
    up to 424 kbit/s in both directions.
    The PN532 can demodulate and decode FeliCa coded signals. The PN532 handles the
    FeliCa framing and error detection. The PN532 supports contactless communication
    using FeliCa Higher transfer speeds up to 424 kbit/s in both directions.
    The PN532 supports layers 2 and 3 of the ISO/IEC 14443 B Reader/Writer
    communication scheme, except anticollision. This must be implemented in firmware as
    well as upper layers.
    In card emulation mode, the PN532 is able to answer to a Reader/Writer command either
    according to the FeliCa or ISO/IEC 14443A/MIFARE card interface scheme. The PN532
    generates the load modulation signals, either from its transmitter or from the LOADMOD
    pin driving an external active circuit. A complete secure card functionality is only possible
    in combination with a secure IC using the NFC-WI/S2C interface.
    Compliant to ECMA 340 and ISO/IEC 18092 NFCIP-1 Passive and Active communication
    modes, the PN532 offers the possibility to communicate to another NFCIP-1 compliant
    device, at transfer speeds up to 424 kbit/s.The PN532 handles the complete NFCIP-1
    framing and error detection.
    The PN532 transceiver can be connected to an external antenna for Reader/Writer or
    Card/PICC modes, without any additional active component.

    The PN532 supports the following host interfaces:
    • SPI
    • I2C
    • High Speed UART (HSU)
    An embedded low-dropout voltage regulator allows the device to be connected directly to
    a battery. In addition, a power switch is included to supply power to a secure IC.

    Category:

    Download Details PDF
    Notice:

    In stock will ship in 2 days. Real-time inventory pls confirm with us.

    INQUIRY ONLINE




      SPECIFICATION

       80C51 microcontroller core with 40 KB ROM and 1 KB RAM
       Highly integrated demodulator and decoder
       Buffered output drivers to connect an antenna with minimum number of external
      components
       Integrated RF level detector
       Integrated data mode detector
       Supports ISO/IEC 14443A/MIFARE
       Supports ISO/IEC 14443B (Reader/Writer mode only)
       Typical operating distance in Reader/Writer mode for communication to
      ISO/IEC 14443A/MIFARE, ISO/IEC 14443B or FeliCa cards up to 50 mm depending
      on antenna size and tuning
       Typical operating distance in NFCIP-1 mode up to 50 mm depending on antenna size,
      tuning and power supply
       Typical operating distance in ISO/IEC 14443A/MIFARE or FeliCa card emulation mode
      of approximately 100 mm depending on antenna size, tuning and external field
      strength
       Supports MIFARE Classic 1K or MIFARE Classic 4K encryption in Reader/Writer
      mode and MIFARE higher transfer speed communication at 212 kbit/s and 424 kbit/s
       Supports contactless communication according to the FeliCa protocol at 212 kbit/s and
      424 kbit/s
       Integrated RF interface for NFCIP-1 up to 424 kbit/s
       Possibility to communicate on the RF interface above 424 kbit/s using external analog
      components
       Supported host interfaces
       SPI interface
       I
      2C interface
       High-speed UART
       Dedicated host interrupts
       Low power modes
       Hard-Power-Down mode (1 A typical)
       Soft-Power-Down mode (22 A typical)
       Automatic wake-up on I2C, HSU and SPI interfaces when device is in Power-down
      mode
       Programmable timers
       Crystal oscillator
       2.7 to 5.5 V power supply operating range
       Power switch for external secure companion chip
       Dedicated IO ports for external device control
       Integrated antenna detector for production tests
       ECMA 373 NFC-WI interface to connect an external secure IC
