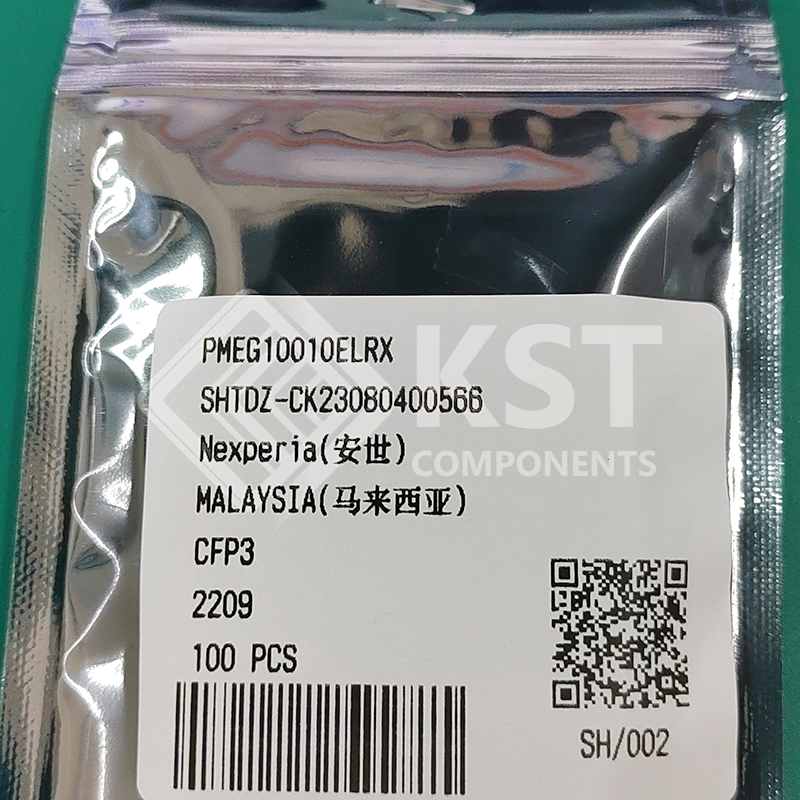

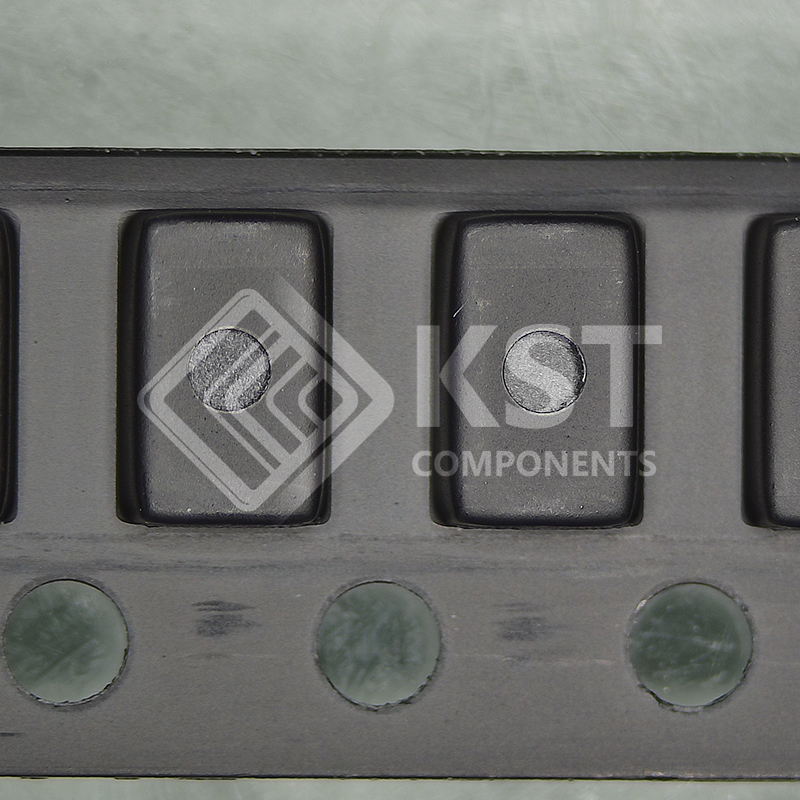

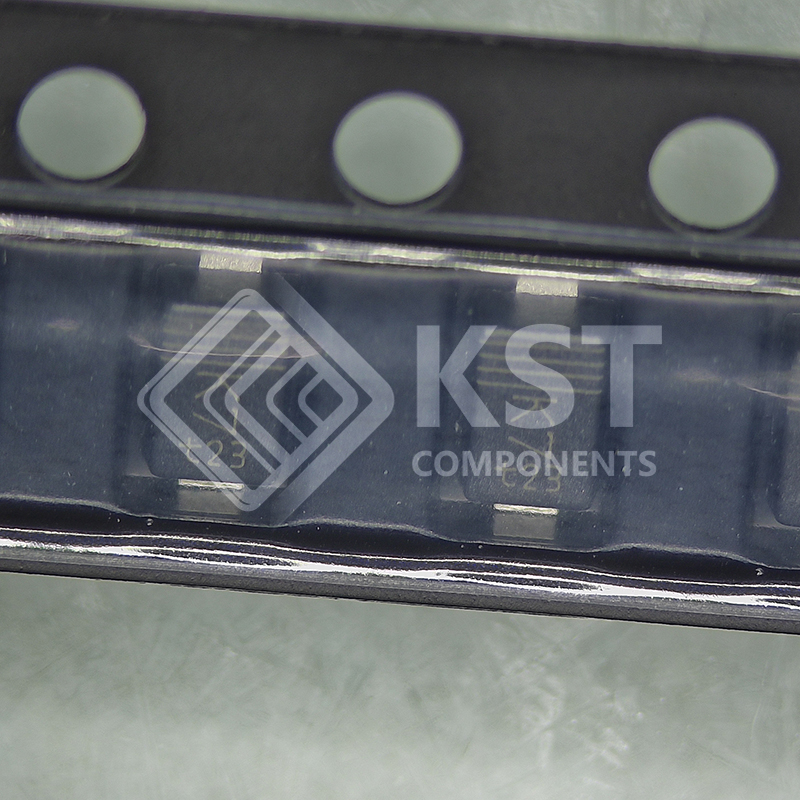

PMEG10010ELRX

Planar Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in
a SOD123W small and flat lead Surface-Mounted Device (SMD) plastic package.

Categories: Diodes, Transistors and Thyristors, Rectifiers

Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE

SPECIFICATION

• Average forward current: IF(AV) ≤ 1 A
• Reverse voltage: VR ≤ 100 V
• Low forward voltage: VF = 710 mV
• High power capability due to clip-bonding technology
• Extremely low leakage current IR = 40 nA
• High temperature Tj
≤ 175 °C
