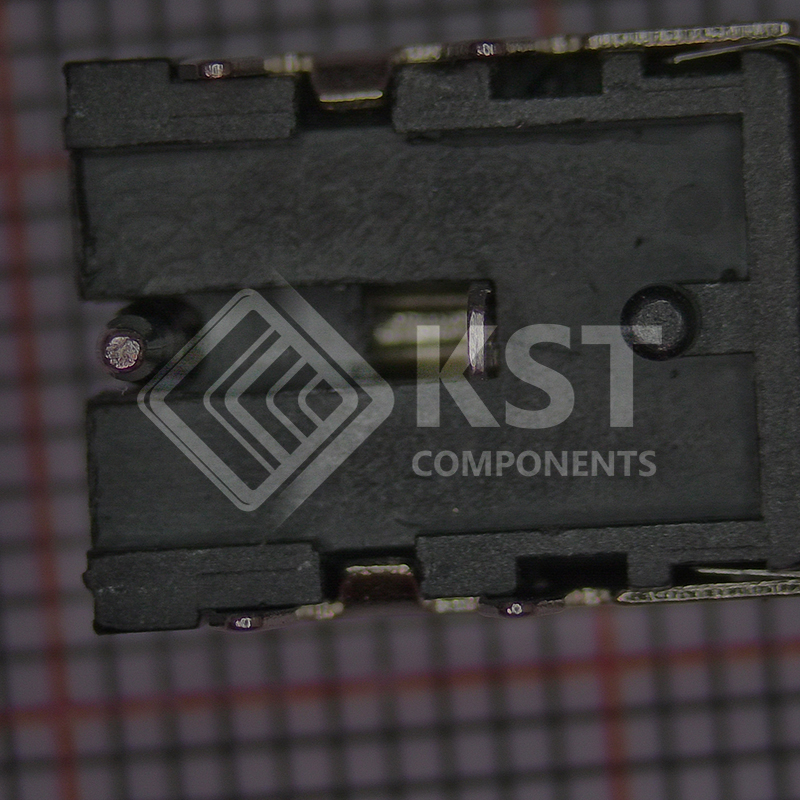

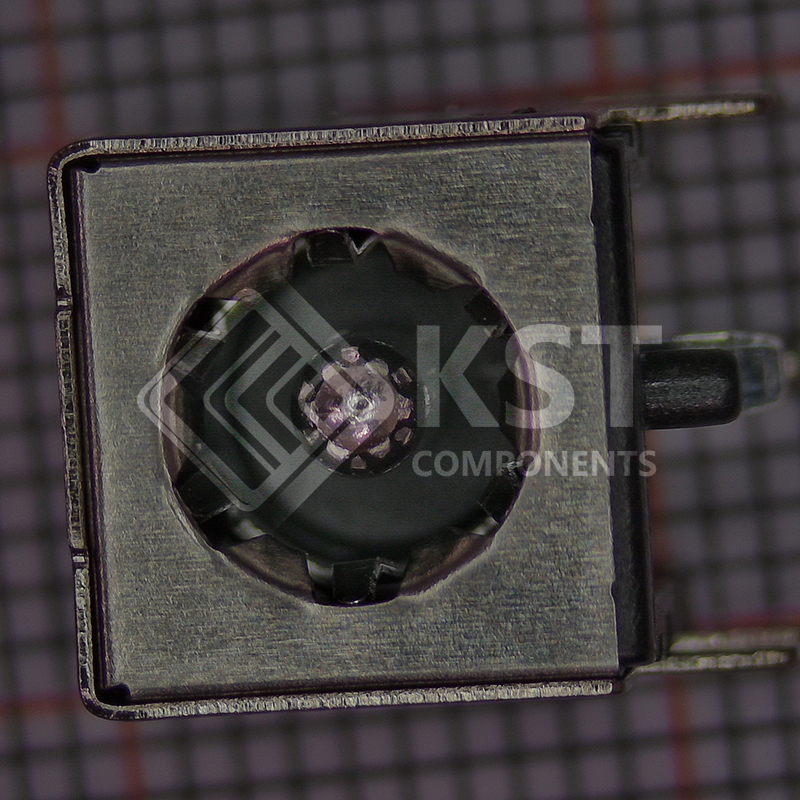

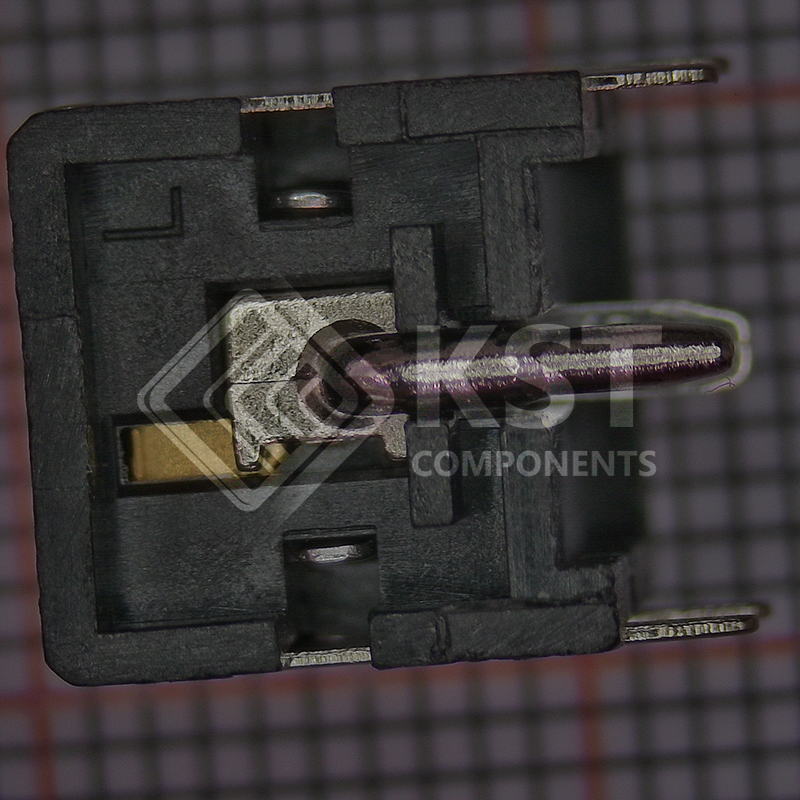

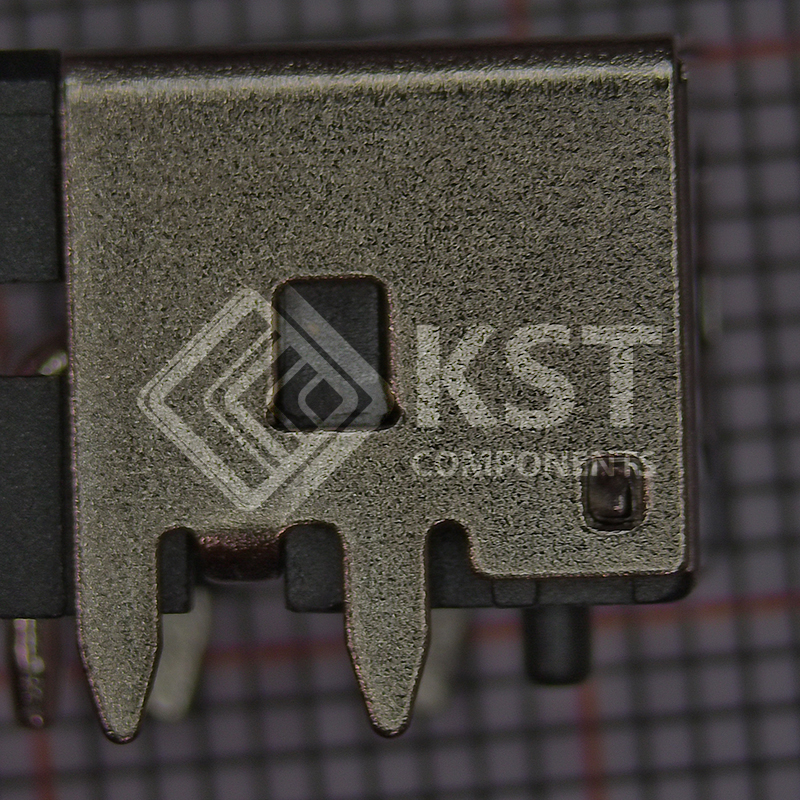

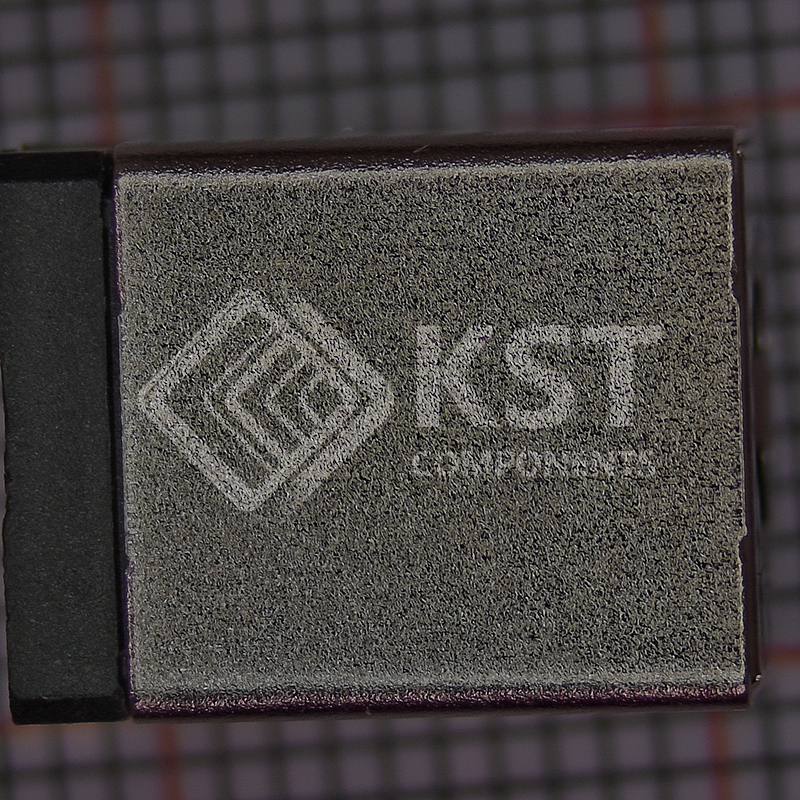

PJ-082BH
INQUIRY ONLINE
|
Category
|
Connectors, Interconnects
Barrel Connectors
Power Connectors
|
|
|
Manufacturer
|
Same Sky (Formerly CUI Devices)
|
|
|
Series
|
–
|
|
|

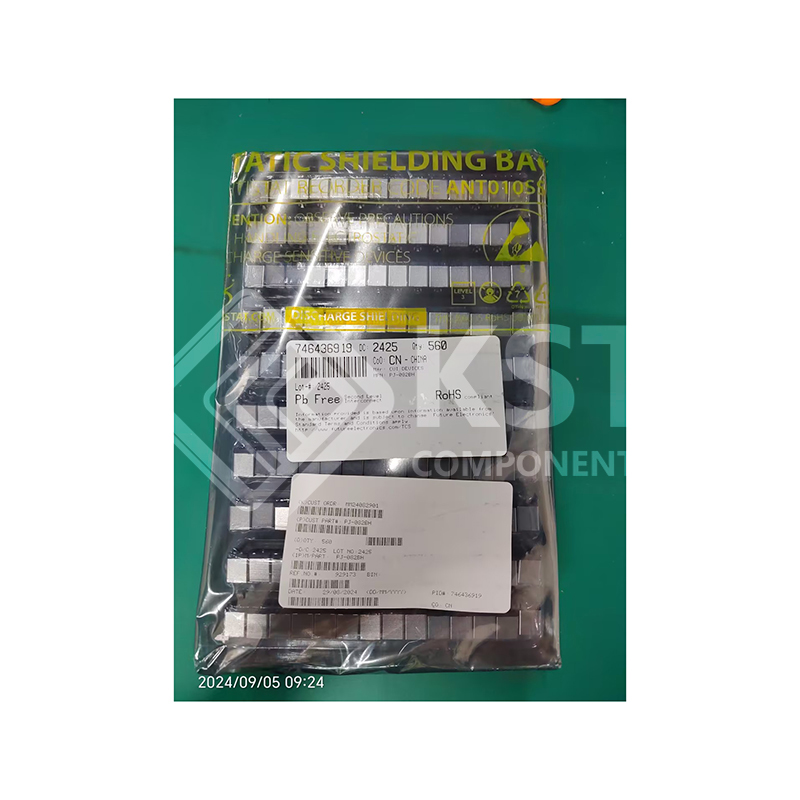

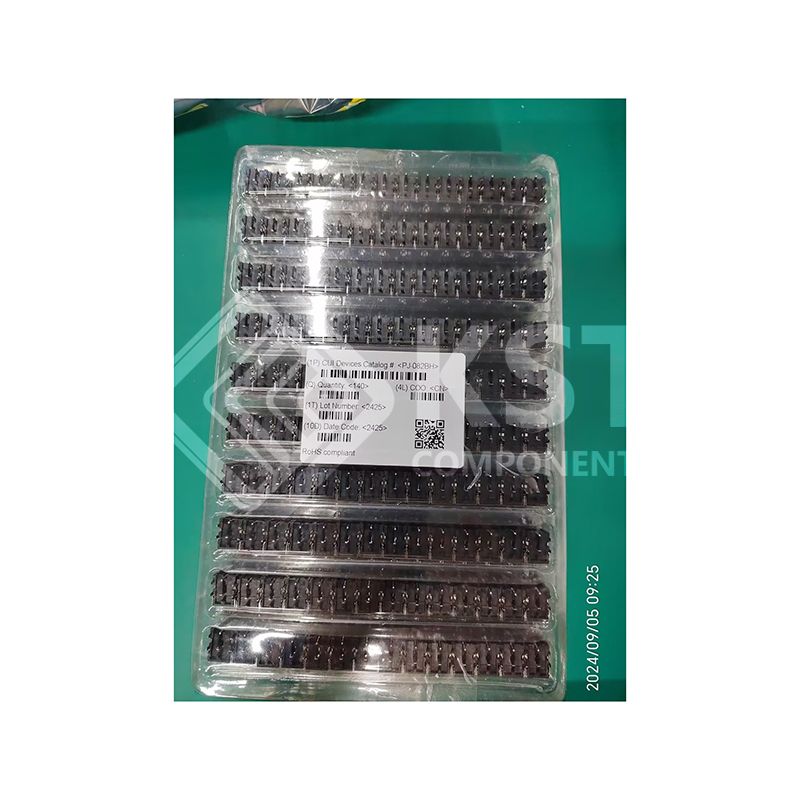

Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
|
|
|
Part Status
|
Active
|
|
|
Connector Type
|
Jack
|
|
|
Gender
|
Male
|
|
|
Industry Recognized Mating Diameter
|
2.50mm ID (0.098″), 5.50mm OD (0.217″)
|
|
|
Actual Diameter
|
0.098″ (2.50mm ID), 0.236″ (6.00mm OD)
|
|
|
Number of Positions/Contacts
|
2 Conductors, 2 Contacts
|
|
|
Internal Switch(s)
|
Does Not Contain Switch
|
|
|
Mounting Type
|
Through Hole, Right Angle
|
|
|
Mounting Feature
|
–
|
|
|
Termination
|
Solder
|
|
|
Shielding
|
Shielded
|
|
|
Features
|
Board Guide
|
|
|
Insulation Color
|
–
|
|
|
Voltage – Rated
|
36VDC
|
|
|
Current Rating (Amps)
|
10 A
|
|
|
Mating Length/Depth
|
0.324″ (8.23mm)
|
|
|
Ingress Protection
|
–
|
|
|
Material Flammability Rating
|
UL94 V-0
|
|
|
Operating Temperature
|
-25°C ~ 85°C
|
|
|
Contact Material – Plating
|
Silver
|
|
|
Body Material
|
–
|
|
|
Includes
|
–
|
|
|
Housing Material
|
Polyamide (PA6T), Nylon 6T
|
|
|
Contact Material
|
Brass, Copper Alloy
|
|
|
Thread Size
|
–
|
|
|
Body Color
|
Black
|
|
|
Base Product Number
|
PJ-082
|
