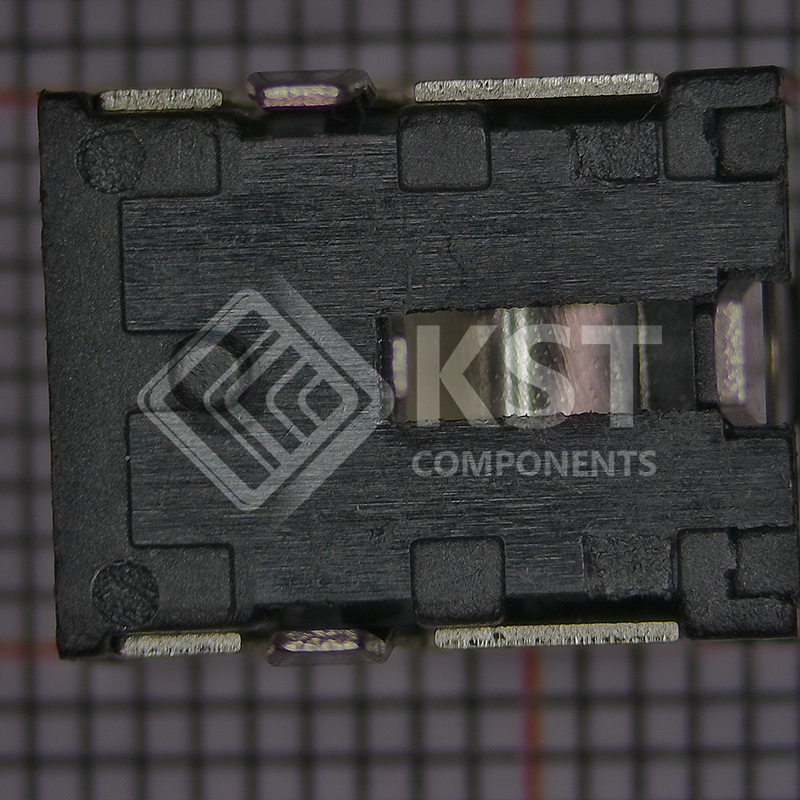

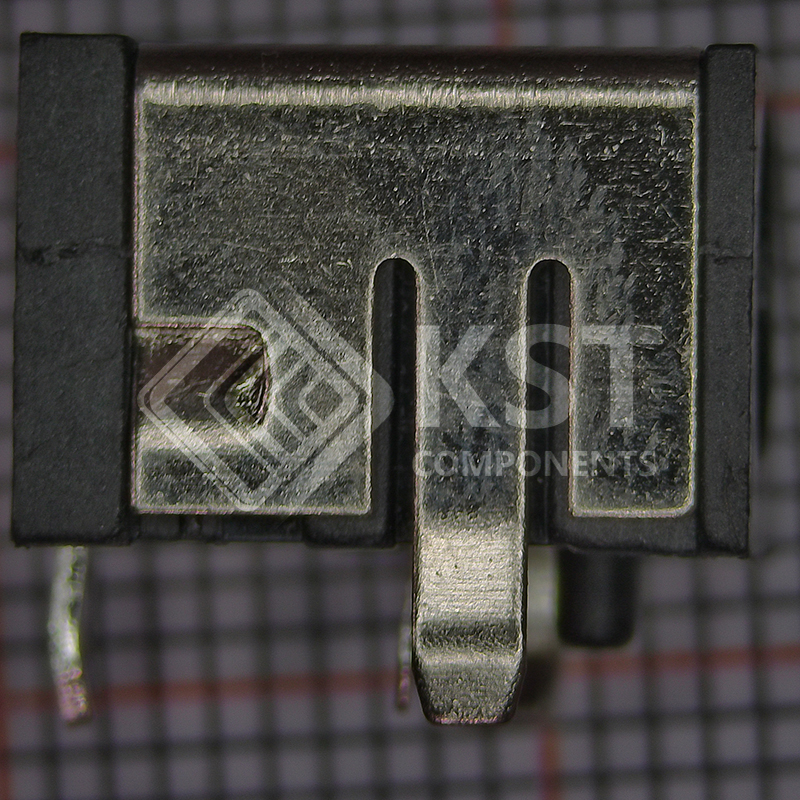

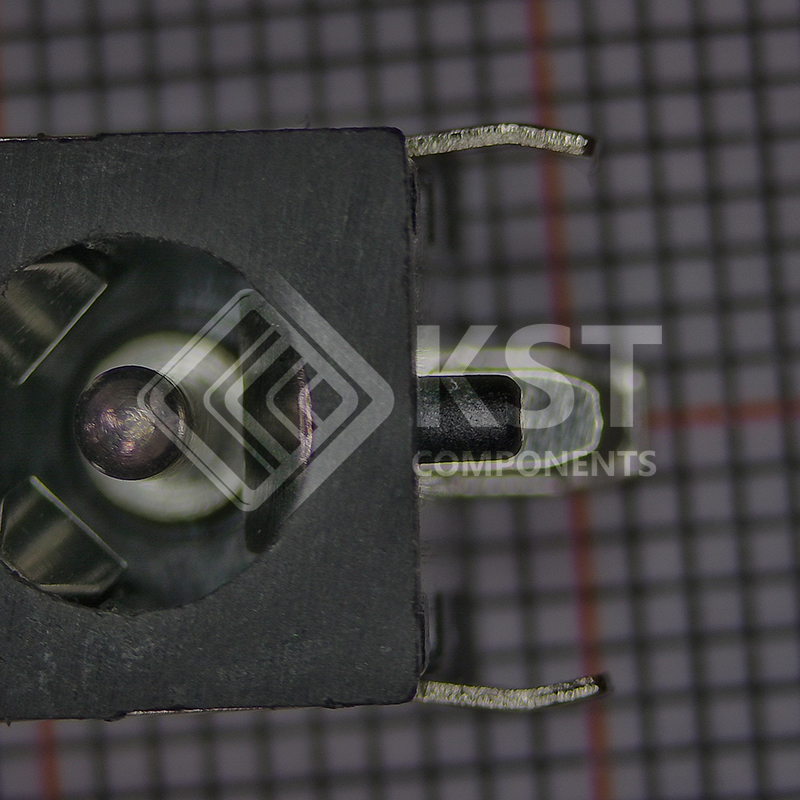

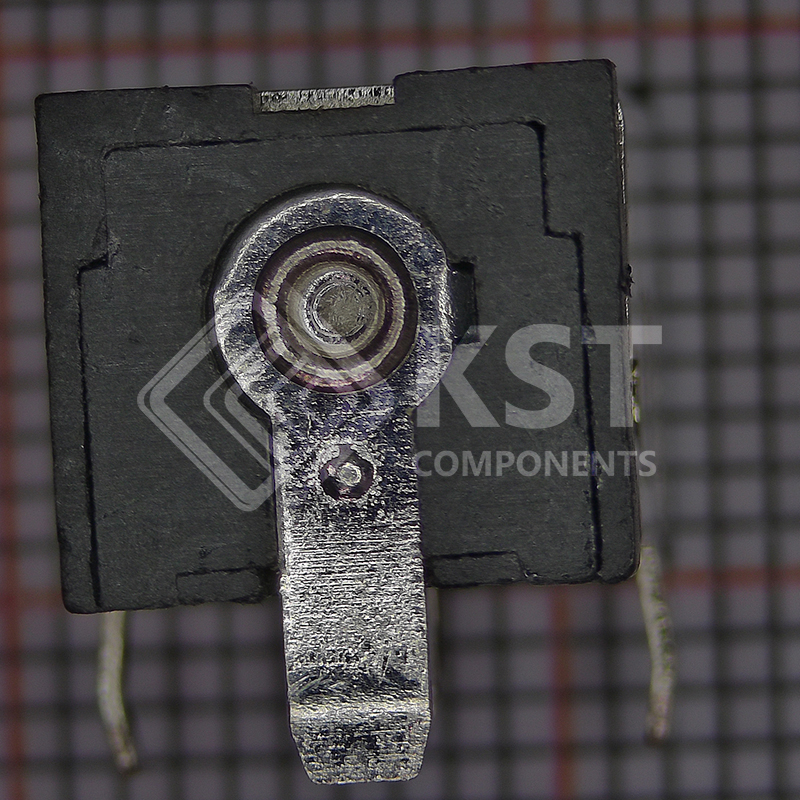

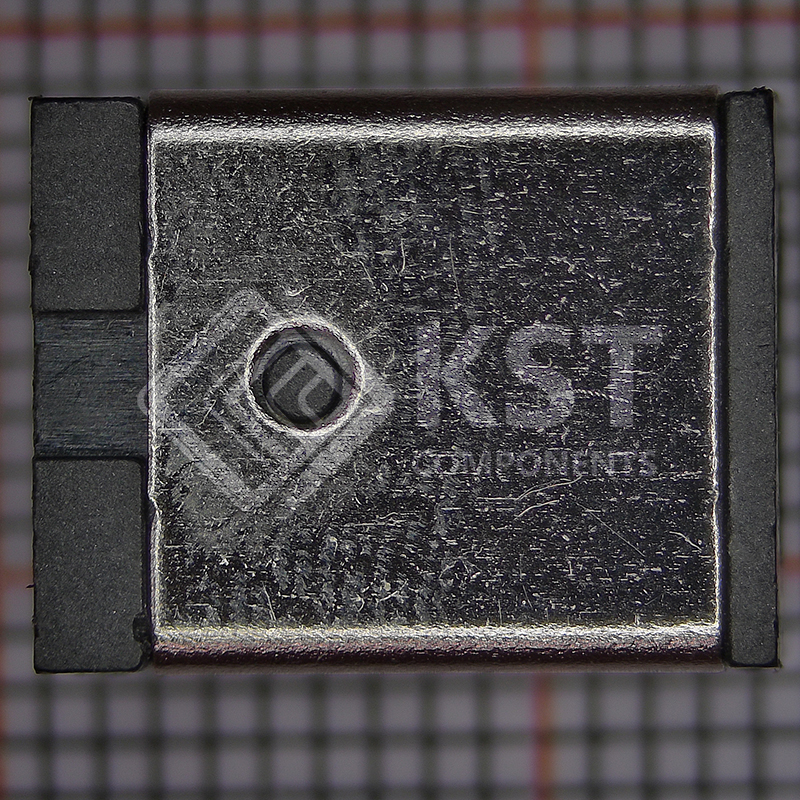

PJ-063AH
INQUIRY ONLINE
|
Category
|
Connectors, Interconnects
Barrel Connectors
Power Connectors
|
|
|
Manufacturer
|
Same Sky (Formerly CUI Devices)
|
|
|
Series
|
–
|
|
|

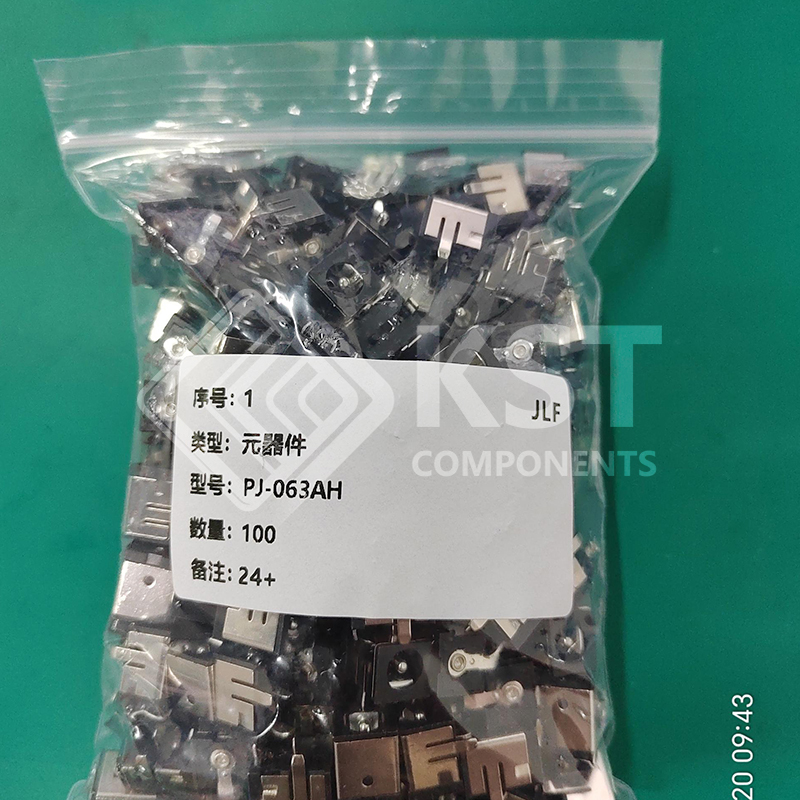

Packaging
|
Bag
|
|
|
Part Status
|
Active
|
|
|
Connector Type
|
Jack
|
|
|
Gender
|
Male
|
|
|
Industry Recognized Mating Diameter
|
2.10mm ID (0.083″), 5.50mm OD (0.217″)
|
|
|
Actual Diameter
|
0.079″ (2.00mm ID), 0.256″ (6.50mm OD)
|
|
|
Number of Positions/Contacts
|
2 Conductors, 2 Contacts
|
|
|
Internal Switch(s)
|
Does Not Contain Switch
|
|
|
Mounting Type
|
Through Hole, Right Angle
|
|
|
Mounting Feature
|
–
|
|
|
Termination
|
Solder
|
|
|
Shielding
|
Shielded
|
|
|
Features
|
Board Guide
|
|
|
Insulation Color
|
–
|
|
|
Voltage – Rated
|
24VDC
|
|
|
Current Rating (Amps)
|
8 A
|
|
|
Mating Length/Depth
|
0.348″ (8.85mm)
|
|
|
Ingress Protection
|
–
|
|
|
Material Flammability Rating
|
UL94 V-0
|
|
|
Operating Temperature
|
-25°C ~ 85°C
|
|
|
Contact Material – Plating
|
Silver
|
|
|
Body Material
|
–
|
|
|
Includes
|
–
|
|
|
Housing Material
|
Polybutylene Terephthalate (PBT)
|
|
|
Contact Material
|
Brass, Copper Alloy
|
|
|
Thread Size
|
–
|
|
|
Body Color
|
Black
|
|
|
Base Product Number
|
PJ-063
|
