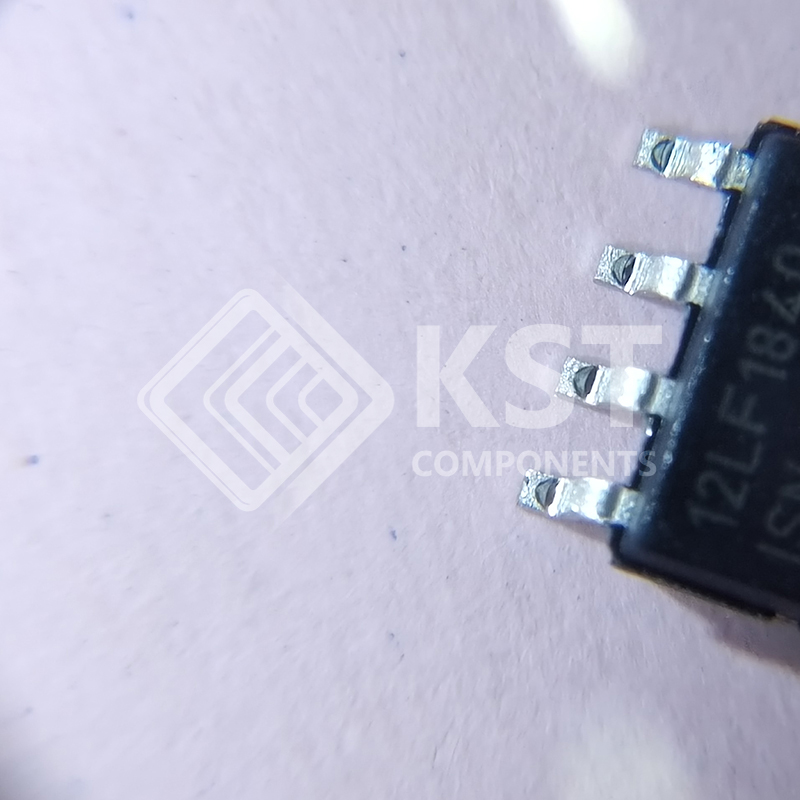

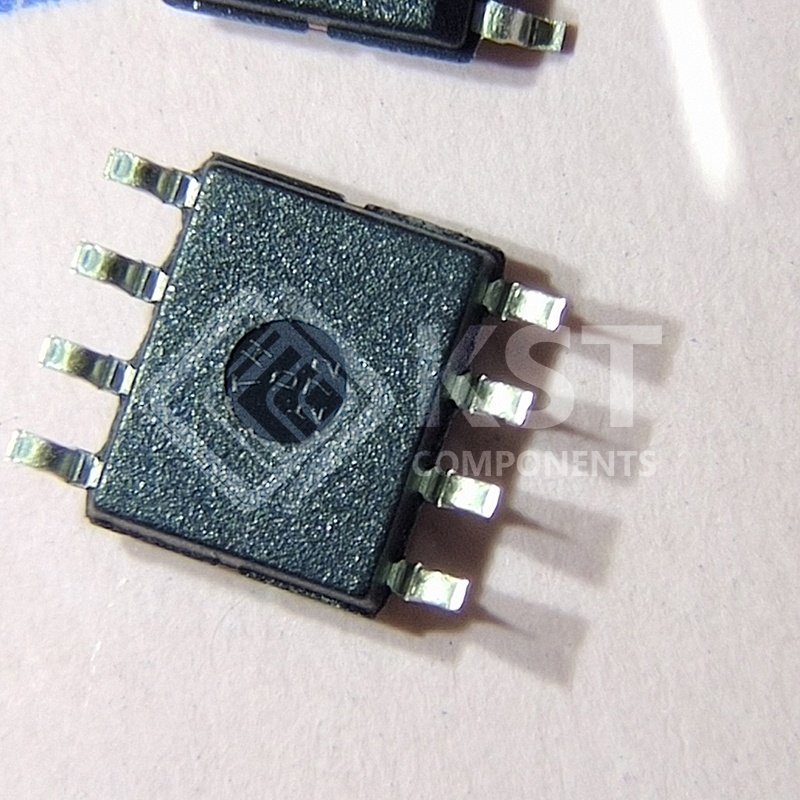

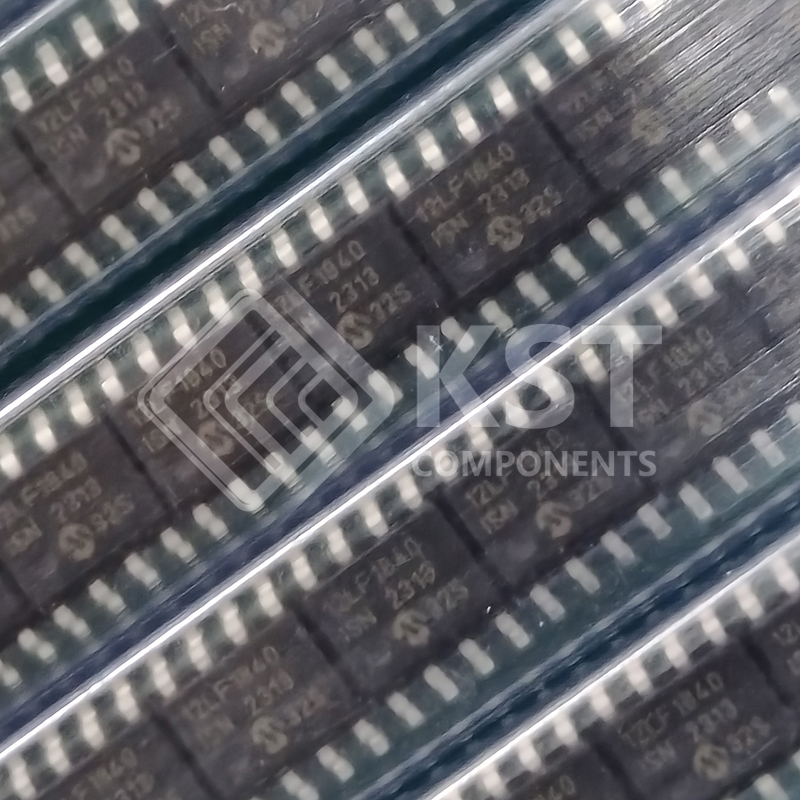

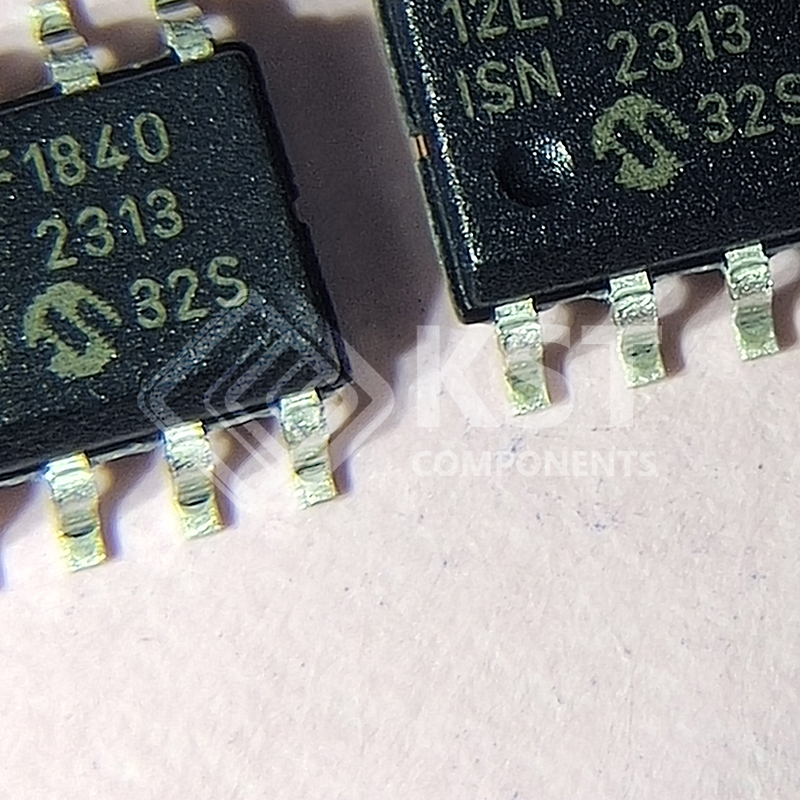

    PIC12LF1840-I/SN

    PIC PIC® XLP™ 12F Microcontroller IC 8-Bit 32MHz 7KB (4K x 14) FLASH 8-SOIC

    Category:

    Download Details PDF
    Notice:

    In stock will ship in 2 days. Real-time inventory pls confirm with us.

    INQUIRY ONLINE




      SPECIFICATION

      • Enhanced Mid-range Core with 49 Instruction, 16 Stack Levels
      • Flash Program Memory with self read/write capability
      • Internal 32MHz oscillator
      • Integrated Capacitive mTouch Sensing Module
      • Data Signal Modulator Module
      • MI2C, SPI, EUSART w/auto baud
      • ECCP (Enhanced/Capture Compare PWM) Module
      • Comparator with selectable Voltage Reference
      • 4 Channel 10b ADC with Voltage Reference
      • 25mA Source/Sink current I/O
      • Two 8-bit Timers (TMR0/TMR2)
      • One 16-bit Timer (TMR1)
      • Extended Watchdog Timer (EWDT)
      • Enhanced Power-On/Off-Reset
      • Brown-Out Reset (BOR)
      • In Circuit Serial Programming (ICSP)
      • On Board In-Circuit Debug
      • Wide Operating Voltage (1.8V – 5.5V)
      • Low Power PIC12LF182x variants (1.8V – 3.6V)
      • Standby Current (PIC12LF1840): 20 nA @ 1.8V, typical
      • Active Current (PIC12LF1840): 50uA/MHz @ 1.8V, typical
