PI6CG18201ZDIEX

The PI6CG18201 is an 2-output very low power PCIe Gen1/
Gen2/Gen3/ Gen4 clock generator. It uses 25MHz crystal or
CMOS reference as an input to generate the 100MHz low power
differential HCSL outputs with on-chip terminations. The on-chip
termination can save 8 external resistors and make layout easier.
An additional buffered reference output is provided to serve as a
low noise reference for other circuitry.
It uses Diodes’ proprietary PLL design to achieve very low jitter that
meets PCIe Gen1/Gen2/Gen3/Gen4 requirements. It also provides
various options such as different slew rate and amplitude through
strapping pins or SMBUS so that users can configure the device
easily to get the optimized performance for their individual boards.
The device also supports selectable spread-spectrum options to
reduce EMI for various applications.

Category: Clock/Timing

Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE

SPECIFICATION

1.8V supply voltage
Crystal/CMOS input: 25 MHz
2 differential low power HCSL outputs with on-chip
termination
Individual output enable
Reference CMOS output
Programmable Slew rate and output amplitude for each output
Differential outputs blocked until PLL is locked
Selectable 0%, -0.25% or -0.5% spread on differential outputs
Strapping pins or SMBus for configuration;
3.3V tolerant SMBus interface support
Very low jitter outputs
Differential cycle-to-cycle jitter <50ps
Differential output-to-output skew <50ps
PCIe Gen1/Gen2/Gen3/Gen4 compliant
CMOS REFOUT phase jitter is < 1.5ps RMS
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
For automotive applications requiring specific change control
(i.e. parts qualified to AEC-Q100/101/200, PPAP capable,
and manufactured in IATF 16949 certified facilities), please
contact us or your local Diodes representative.
https://www.diodes.com/quality/product-definitions/

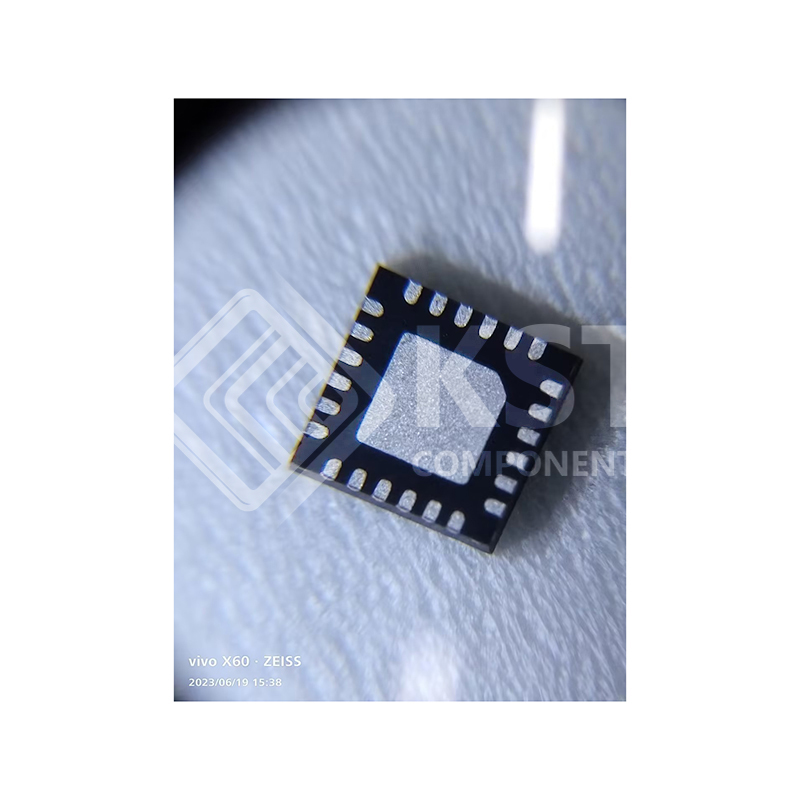

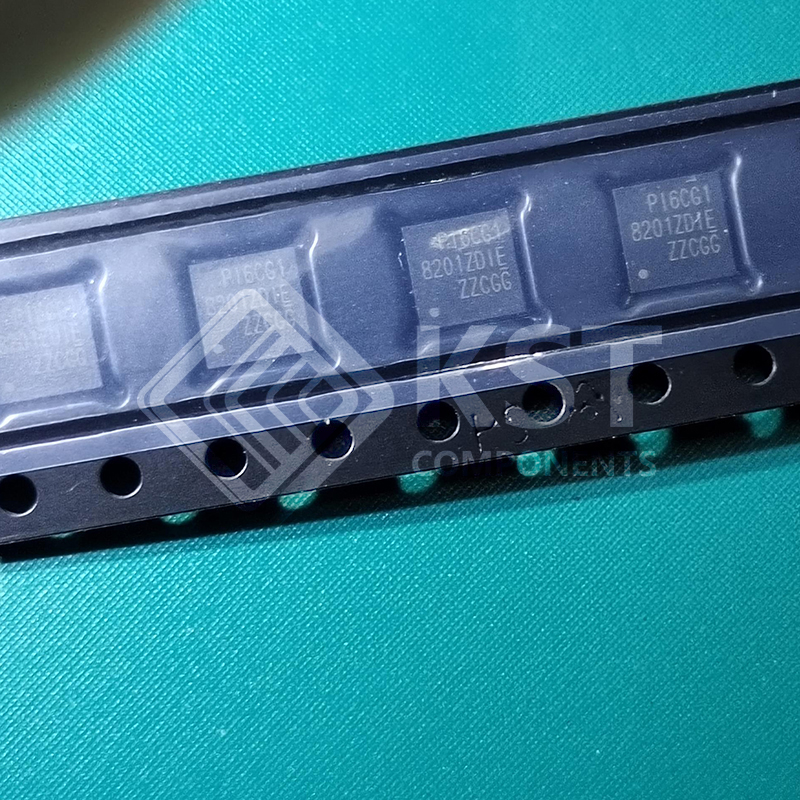

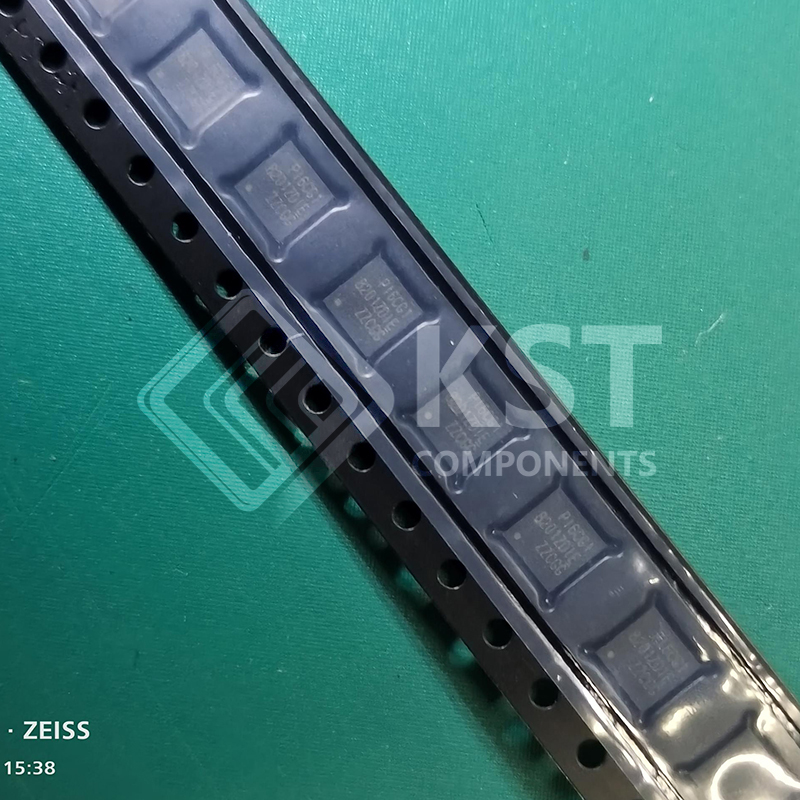

Packaging (Pb-free & Green): 24-lead 4×4mm TQFN
