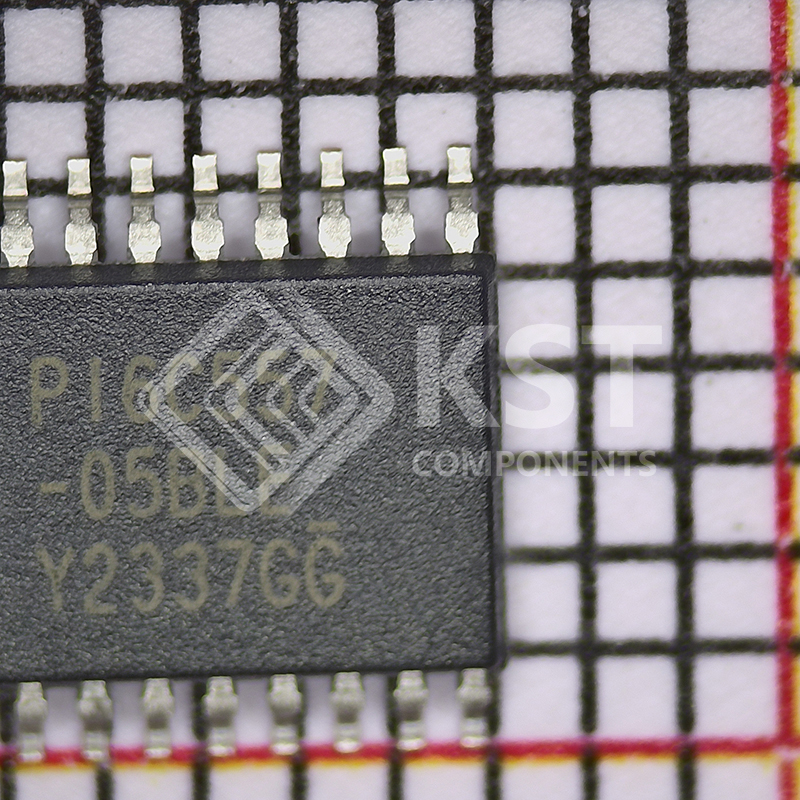

    PI6C557-05BLEX

    The PI6C557-05B is a spread spectrum clock generator compliant to
    PCI Express® 3.0 and Ethernet requirements. The device is used for
    PC or embedded systems to substantially reduce Electromagnetic
    Interference (EMI).
    The PI6C557-05B provides four differential (HCSL) or LVDS spread
    spectrum outputs. The PI6C557-05B is configured to select spread
    and clock selection. Using Pericom’s patented Phase-Locked Loop
    (PLL) techniques, the device takes a 25MHz crystal input and
    produces four pairs of differential outputs (HCSL) at 100MHz
    and 200MHz clock frequencies. It also provides spread selection
    of -0.5%, -1.0%, -1.5%, and no spread.

    Category:

    Download Details PDF
    Notice:

    In stock will ship in 2 days. Real-time inventory pls confirm with us.

    INQUIRY ONLINE




      SPECIFICATION

      Î PCIe® 3.0 complaint
      • PCIe 3.0 Phase jitter: 0.48ps RMS (High Freq. Typ.)
      Î LVDS compatible outputs
      Î Supply voltage of 3.3V ±5%
      Î 25MHz crystal or clock input frequency
      Î HCSL outputs, 0.7V Current mode differential pair
      Î Jitter 40ps cycle-to-cycle (typ)
      Î Spread of -0.5%, -1.0%, -1.5%, and no spread
      Î Industrial temperature range
      Î Spread Bypass option available
      Î Spread and frequency selection via external pins
      Î Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
      Î Halogen and Antimony Free. “Green” Device (Note 3)
      Î For automotive applications requiring specific change control
      (i.e. parts qualified to AEC-Q100/101/200, PPAP capable, and
      manufactured in IATF 16949 certified facilities), please contact
      us or your local Diodes representative.
      https://www.diodes.com/quality/product-definitions/
      Î Packaging: (Pb-free and Green)

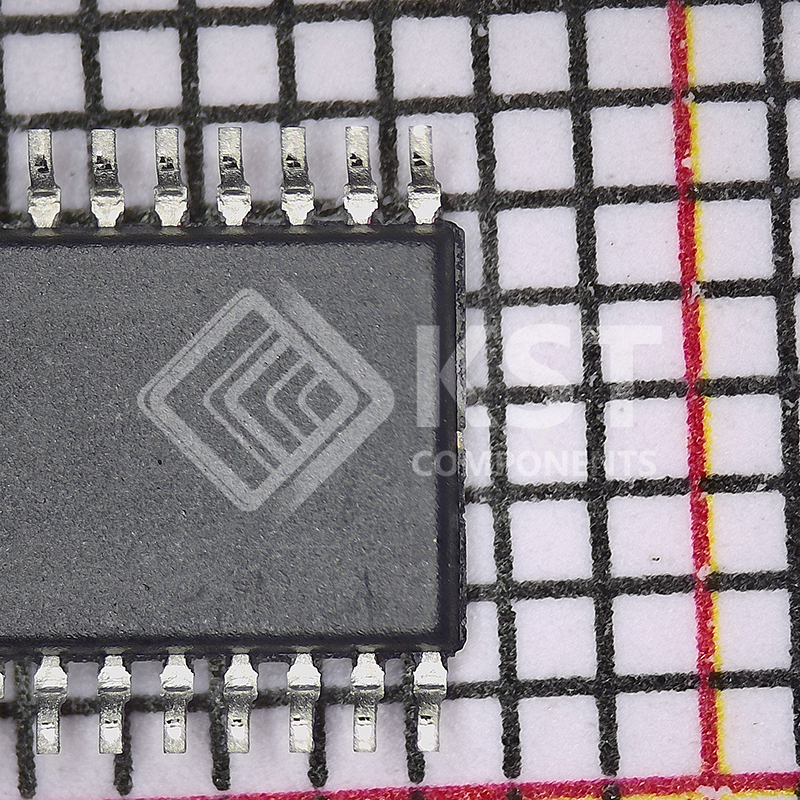

      • 20-pin, TSSOP (L)
