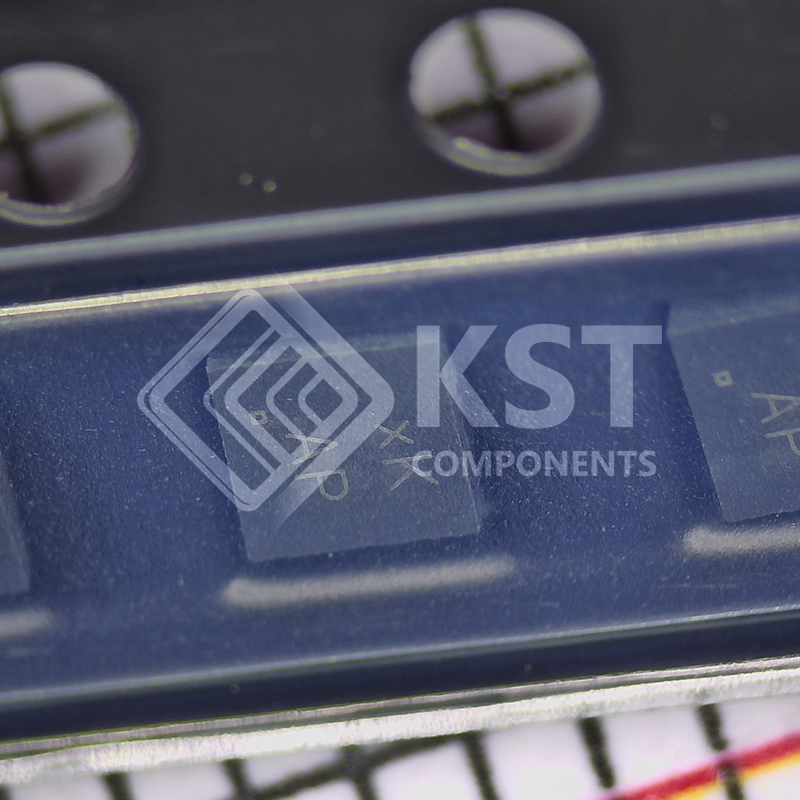

    PI3AUX221ZTAEX

    PI3AUX221 is an interface chip between the discrete Graphics
    Processing Unit (GPU) and the Display Port (DP) connector. The
    device is ideal for applications that require support of Dual-Mode
    Display Port. It integrates the support function for Display Data
    Channel (DDC) in HDMI mode and includes the functions of level
    translation, mux function, over-voltage protection, back-drive protection and inversion of Hot Plug Detect (HPD). The level translation function allows a wide range of voltages between 1V to 5V. The
    device eliminates the requirement of many discrete components,
    and it is available in a space-saving 12-pin ultra-thin 0.65mm high
    2×2 mm QFN package.

    Category:

    Download Details PDF
    Notice:

    In stock will ship in 2 days. Real-time inventory pls confirm with us.

    INQUIRY ONLINE




      SPECIFICATION

      Î AC-coupling of AUX signal or DC-level translated Display
      Data Channel (DDC) signal controlled by the SEL pin
      Î Bi-directional level translation of 100KHz DDC signals
      Î Inverted level translation of HPD signal from DisplayPort
      Connector to GPU
      Î Protection function to prevent signal propagation across
      AUX1 and AUX2A/B when either VREF1 or VREF2 voltage
      is invalid
      Î Protection function to prevent signal propagation from HPD2
      to HPD1 when VREF1 is invalid
      Î Protection on AUX1 from over-voltage condition of AUX2A
      and AUX2B
      Î Leakage current between VREF1 and VREF2 limited to
      100nA
      Î 10MHz, -3dB Bandwidth for AUX switches
      Î Complies with DisplayPort 2.0
      Î Complies with HDMI 2.1
      Î Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
      Î Halogen and Antimony Free. “Green” Device (Note 3)
      Î For automotive applications requiring specific change control
      (i.e. parts qualified to AEC-Q100/101/200, PPAP capable,
      and manufactured in IATF 16949 certified facilities), please
      contact us or your local Diodes representative.
      https://www.diodes.com/quality/product-definitions/
      Î Packaging (Pb-free & Green):
      ß 12-Pin, 2x2mm UQFN (ZTA)
