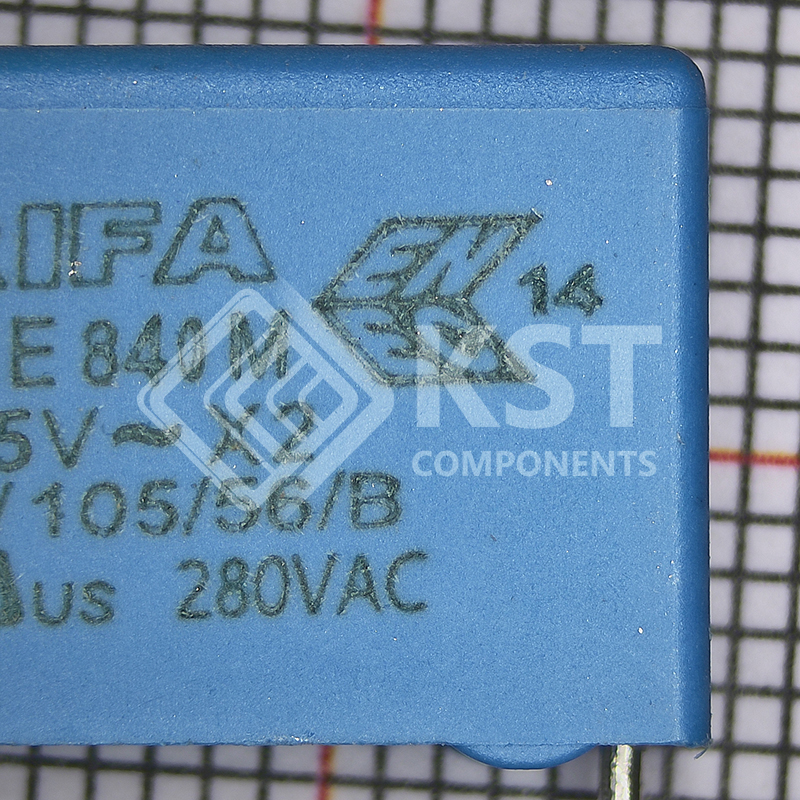

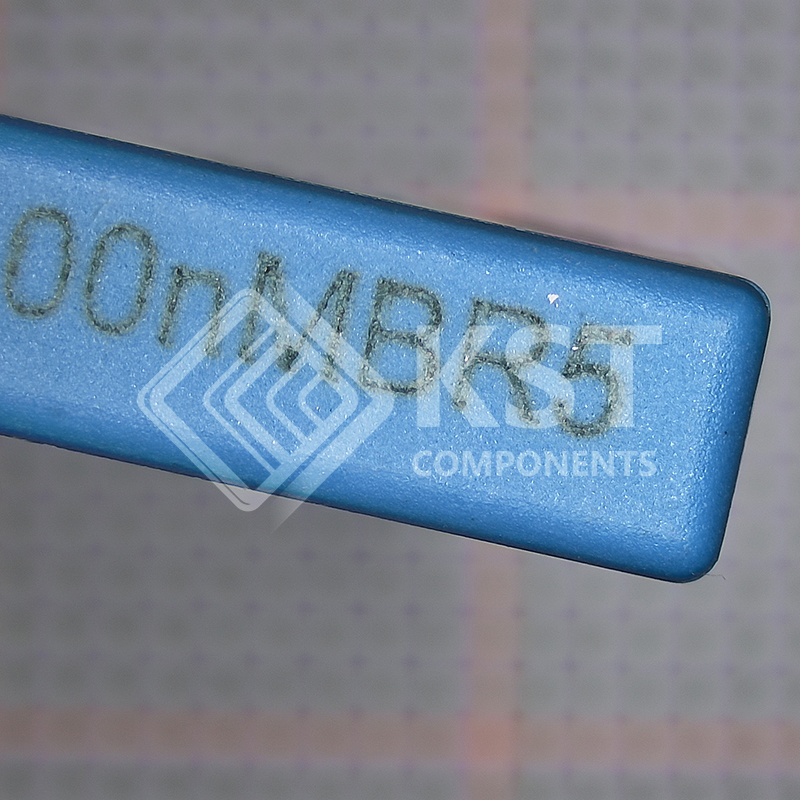

PHE840MB6100MB05R17

Rated voltage 275 VAC 50/60 Hz (ENEC)
280 VAC 50/60 Hz (UL, cUL)
Capacitance range 0.01 – 10.0 µF
Capacitance tolerance ± 20% standard, ± 10% option, ± 5% on request
Temperature range –55 to +105°C
Climatic category 55/105/56/B
Approvals ENEC, UL, cUL
Dissipation factor Maximum values at +23°C
C ≤ 0.1 µF 0.1µF < C ≤ 1 µF C > 1 µF
1 kHz 0.1% 0.1% 0.1%
10 kHz 0.2% 0.4% 0.8%
100 kHz 0.6% – –
Test voltage between The 100% screening factory test is carried out at 2200
terminals VDC. The voltage level is selected to meet the
requirements in applicable equipment standards. All
electrical characteristics are checked after the test.
Insulation resistance C ≤ 0.33 µF: ≥ 30 000 MΩ
C > 0.33 µF: ≥ 10 000 s
In DC applications Recommended voltage ≤ 760 VDC
