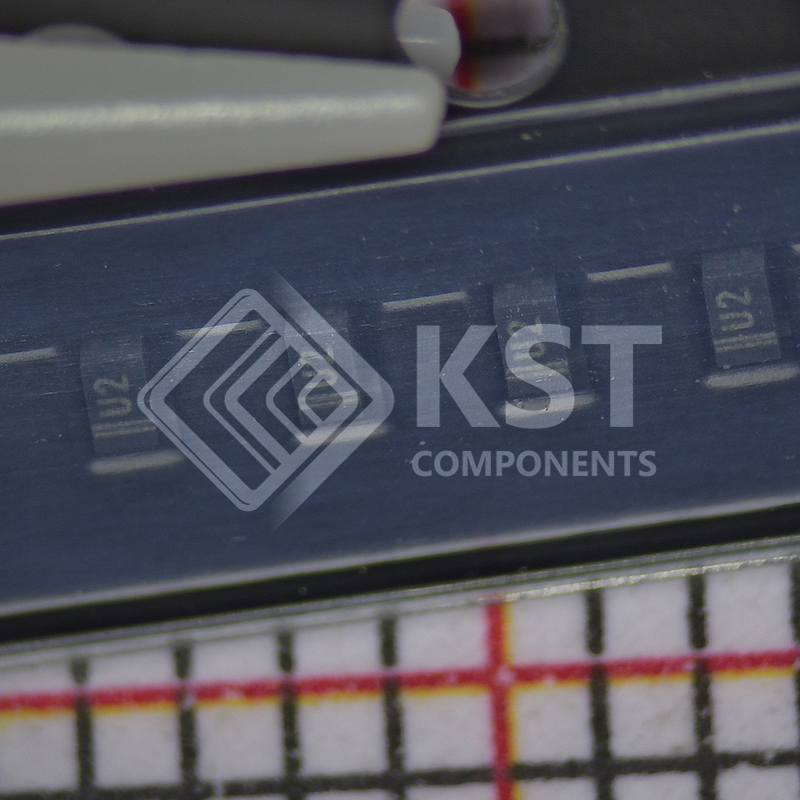

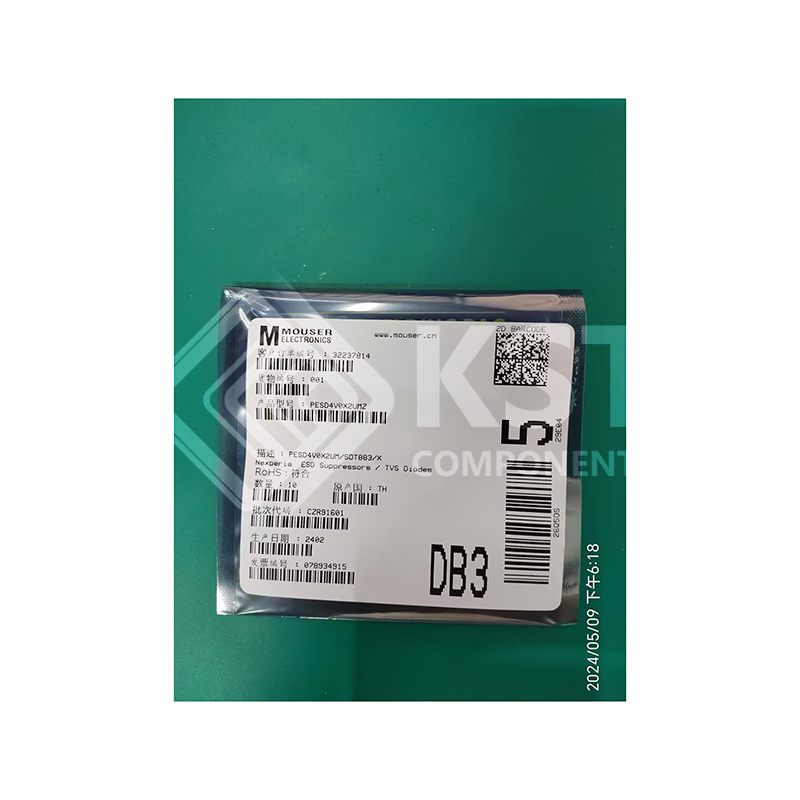

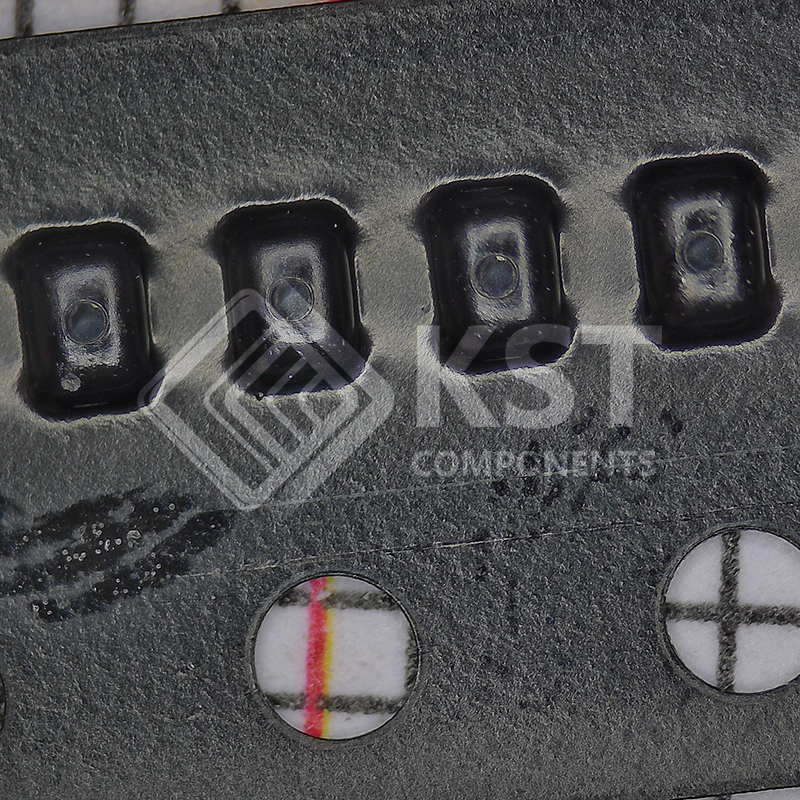

    PESD4V0X2UMZ

    Extremely low capacitance bidirectional ElectroStatic Discharge (ESD) protection diode array, part
    of the TrEOS protection family. This device is housed in a DFN1006-3 (SOT883-3) leadless ultra
    small Surface-Mounted Device (SMD) plastic package designed to protect up to two signal lines
    from the damage caused by ESD and other transients.

    Category:

    Download Details PDF
    Notice:

    In stock will ship in 2 days. Real-time inventory pls confirm with us.

    INQUIRY ONLINE




      SPECIFICATION

      • Unidirectional ESD protection of one line pair
      • VRWM = 4 V device
      • Extremely high surge robustness of 11.5 A for a 8/20 µs pulse
      • Extremely low diode capacitance, Cd = 0.82 pF typical
      • Extremely low clamping voltage to protect sensitive I/Os
      • ESD protection up to ±20 kV according to IEC 61000-4-2
      • Leadless ultra small SOT883-3 surface mount package
      • IEC 61000-4-4 robust up to level 4 for I/O data lines (corresponds to 40 A into a 50 Ohm
      termination)
