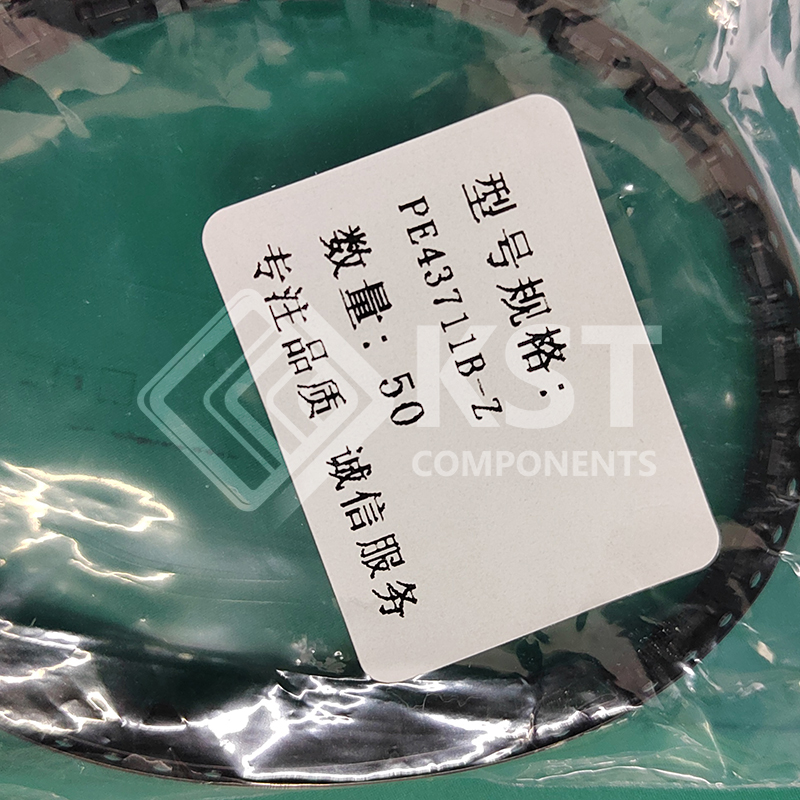

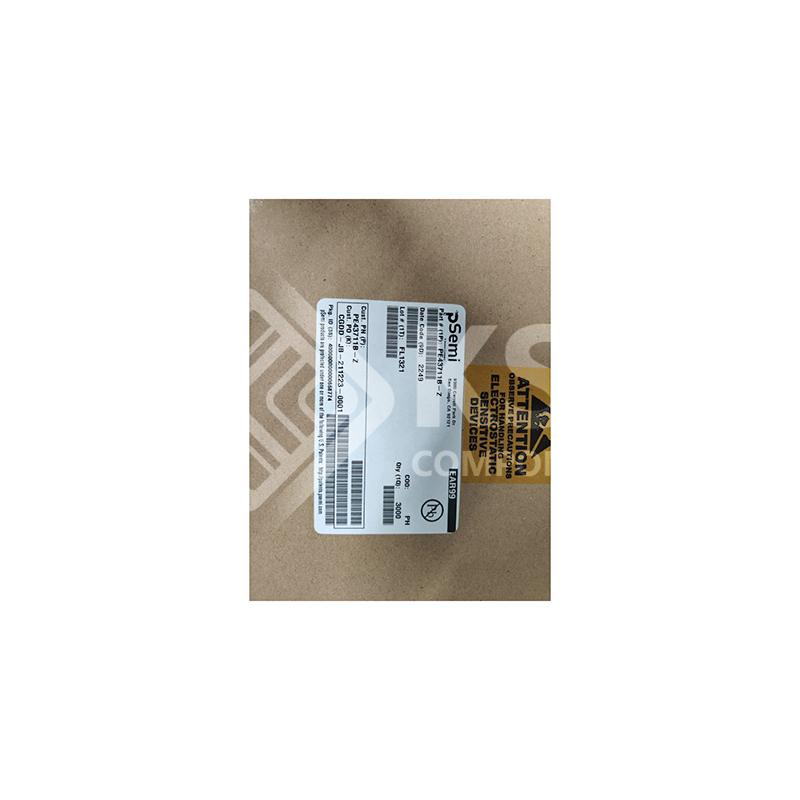

PE43711B-Z

The PE43711 is a 50Ω, HaRP™ technology-enhanced, 7-bit RF digital step attenuator (DSA) that supports a
broad frequency range from 9 kHz to 6 GHz. It features glitch-less attenuation state transitions and supports
1.8V control voltage and an extended operating temperature range to +105 °C, making this device ideal for
many broadband wireless applications.
The PE43711 is a pin-compatible upgraded version of the PE43502, PE43503, PE43602 and PE43702. An
integrated digital control interface supports both Serial and Parallel programming of the attenuation, including
the capability to program an initial attenuation state at power-up.
The PE43711 covers a 31.75 dB attenuation range in 0.25 dB, 0.5 dB and 1 dB steps. It is capable of
maintaining 0.25 dB monotonicity through 4 GHz, 0.5 dB monotonicity through 5 GHz and 1 dB monotonicity
through 6 GHz. In addition, no external blocking capacitors are required if 0 VDC is present on the RF ports.
The PE43711 is manufactured on pSemi’s UltraCMOS® process, a patented variation of silicon-on-insulator
(SOI) technology on a sapphire substrate.

Category:

Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE




    SPECIFICATION

    • Flexible attenuation steps of 0.25 dB, 0.5 dB and
    1 dB up to 31.75 dB
    • Glitch-less attenuation state transitions
    • Monotonicity: 0.25 dB up to 4GHz, 0.5 dB up to
    5 GHz and 1 dB up to 6 GHz
    • Extended +105 °C operating temperature
    • Parallel and Serial programming interfaces
    • Packaging—24-lead 4 × 4 mm QFN
