PAM8301AAF

The PAM8301 is a 1.5W Class-D mono audio amplifier. Its low
THD+N feature offers high quality sound reproduction. The new
filterless architecture allows the device to drive speaker directly
instead of using low-pass output filters, therefore saving system cost
and PCB area.
With the same number of external components, the efficiency of the
PAM8301 is much better than that of Class-AB cousins. It can
optimize battery life thus is ideal for portable applications.

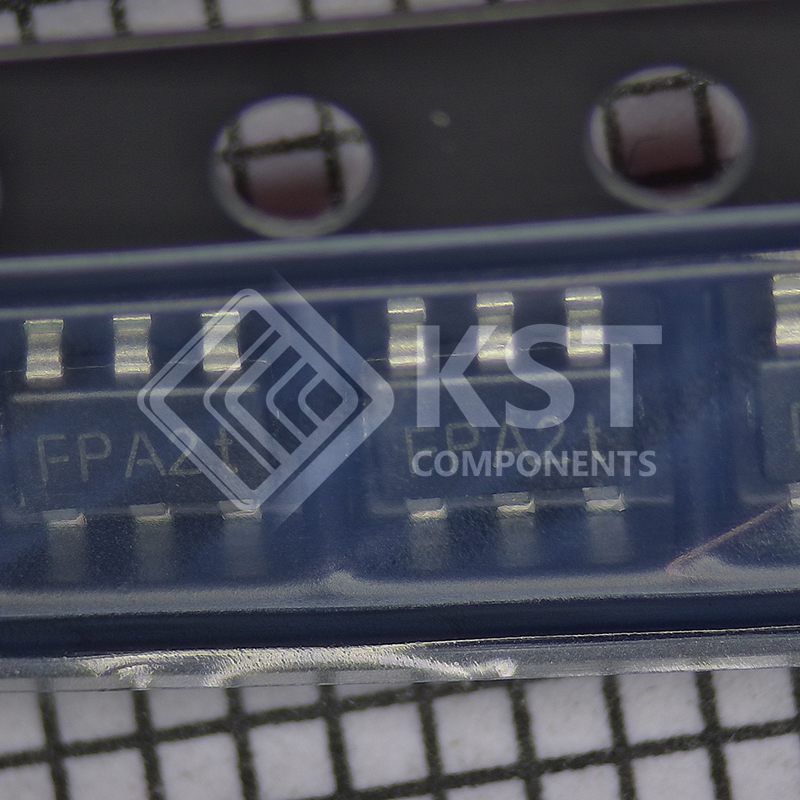

The PAM8301 is available in SOT23-6 package.

Category: Amplifiers

Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE

SPECIFICATION

• 1.5W Output at 10% THD with a 8Ω Load and 5V Power Supply
• Filterless, Low Quiescent Current and Low EMI
• High Efficiency up to 88%
• Superior Low Noise
• Short Circuit Protection
• Thermal Shutdown
• Few External Components to Save Space and Cost
• Tiny SOT23-6 Package
• Pb-Free Package
