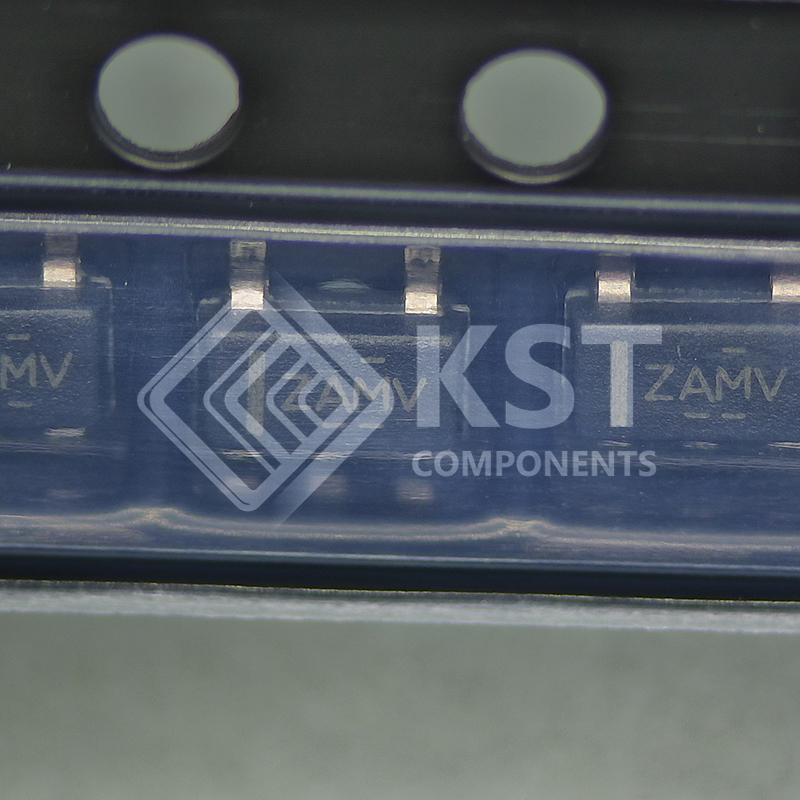

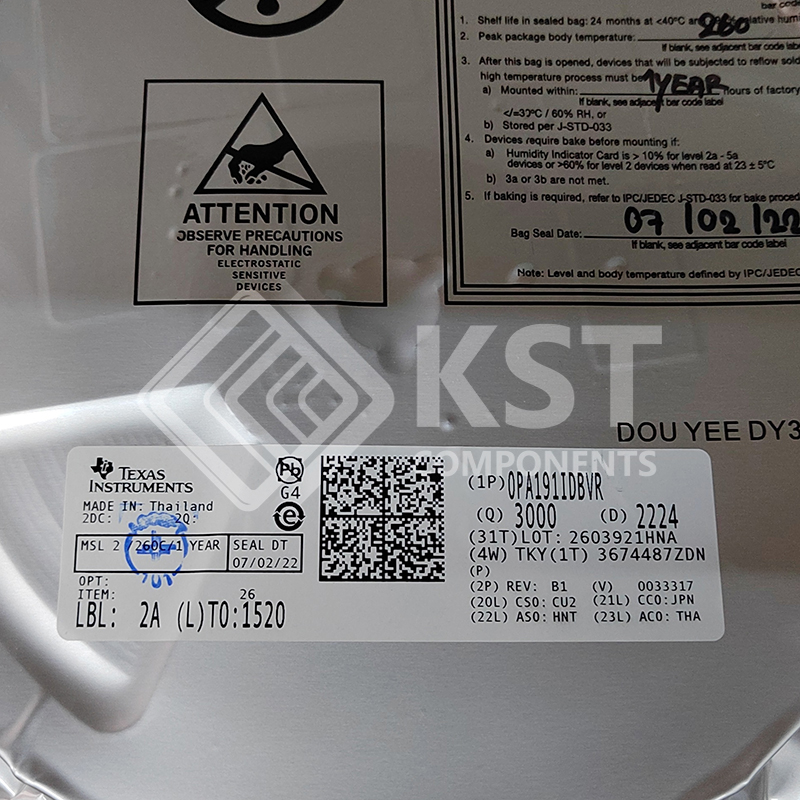

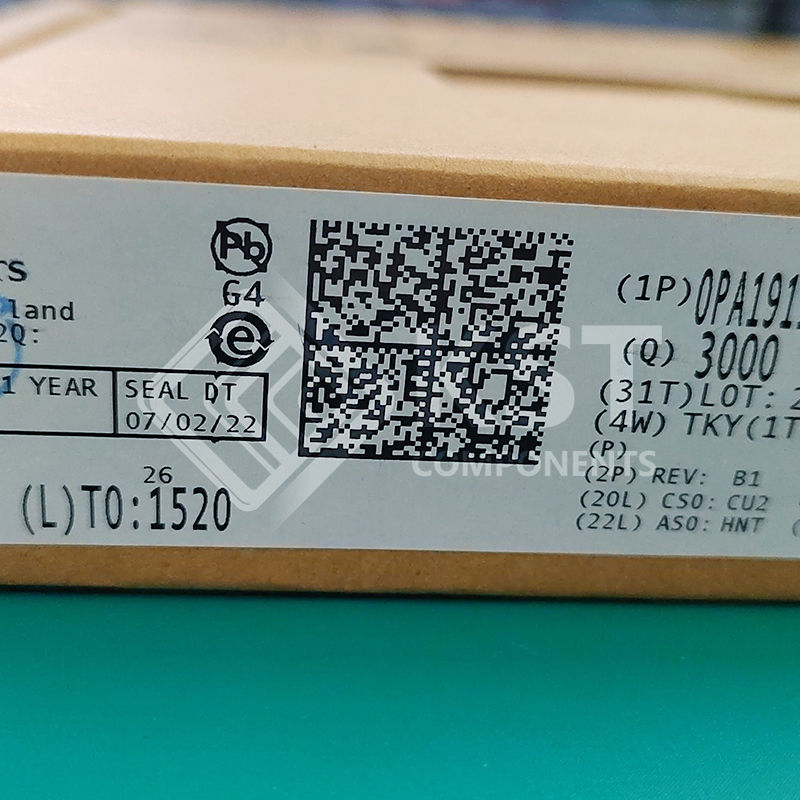

OPA191IDBVR

The OPAx191 family (OPA191, OPA2191, and
OPA4191) is a new generation of 36-V, e-trim™
operational amplifiers.
These devices offer outstanding dc precision and
ac performance, including rail-to-rail input/output, low
offset voltage (±5 µV, typ), low offset drift (±0.2 µV/°C,
typ), and 2-MHz bandwidth.
Unique features, such as differential input-voltage
range to the supply rail, high output current (±65 mA),
high capacitive load drive of up to 1 nF, and high
slew rate (5 V/µs), make the OPAx191 a robust, highperformance operational amplifier for high-voltage
industrial applications.
The OPAx191 family of op amps is available in
standard packages and is specified from –40°C to
+125°C.

Category:

Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE




    SPECIFICATION

    • Low offset voltage: ±5 µV
    • Low offset voltage drift: ±0.1 µV/°C
    • Low noise: 15 nV/√ Hz at 1 kHz
    • High common-mode rejection: 140 dB
    • Low bias current: ±5 pA
    • Rail-to-rail input and output
    • Wide bandwidth: 2.5-MHz GBW
    • High slew rate: 5 V/µs
    • Low quiescent current: 140 µA per amplifier
    • Wide supply: ±2.25 V to ±18 V, 4.5 V to 36 V
    • EMI/RFI filtered inputs
    • Differential input voltage range to supply rail
    • High capacitive load drive capability: 1 nF
    • Industry standard packages:
    – Single in SOIC-8, SOT-5, and VSSOP-8
    – Dual in SOIC-8 and VSSOP-8
    – Quad in SOIC-14, TSSOP-14, and WQFN-16
