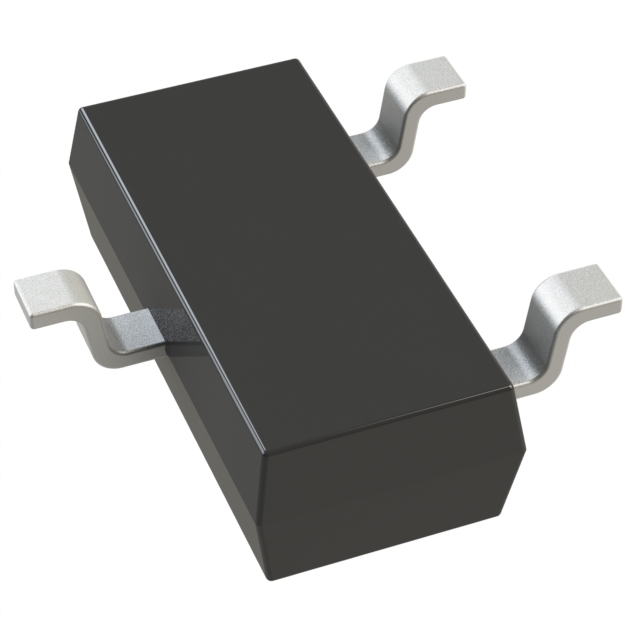

NX3008NBKW,115

MOSFET N-CH 30V 350MA SOT323

Category:

Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE




    SPECIFICATION

    Category
    Discrete Semiconductor Products
    Transistors
    FETs, MOSFETs
    Single FETs, MOSFETs
    Mfr
    Nexperia USA Inc.
    Series
    TrenchMOS™
    Packaging
    Tape & Reel (TR)
    Cut Tape (CT)
    Digi-Reel®
    Part Status
    Active
    FET Type
    N-Channel
    Technology
    MOSFET (Metal Oxide)
    Drain to Source Voltage (Vdss)
    30 V
    Current – Continuous Drain (Id) @ 25°C
    350mA (Ta)
    Drive Voltage (Max Rds On, Min Rds On)
    1.8V, 4.5V
    Rds On (Max) @ Id, Vgs
    1.4Ohm @ 350mA, 4.5V
    Vgs(th) (Max) @ Id
    1.1V @ 250µA
    Gate Charge (Qg) (Max) @ Vgs
    0.68 nC @ 4.5 V
    Vgs (Max)
    ±8V
    Input Capacitance (Ciss) (Max) @ Vds
    50 pF @ 15 V
    FET Feature
    Power Dissipation (Max)
    260mW (Ta), 830mW (Tc)
    Operating Temperature
    -55°C ~ 150°C (TJ)
    Grade
    Automotive
    Qualification
    AEC-Q101
    Mounting Type
    Surface Mount
    Supplier Device Package
    SOT-323
    Package / Case
    SC-70, SOT-323
    Base Product Number
    NX3008
