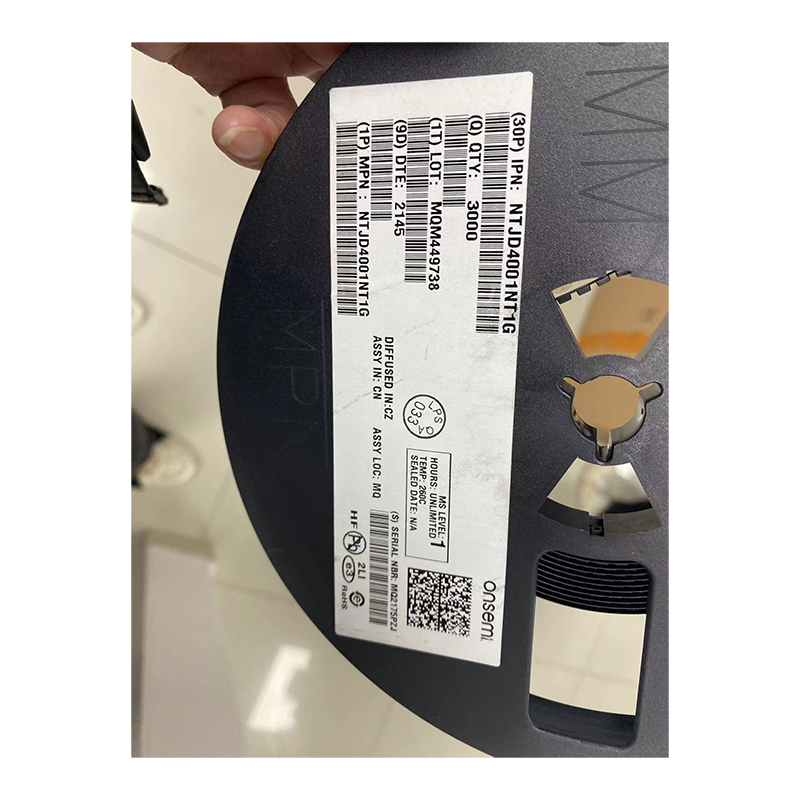

NTJD4001NT1G
INQUIRY ONLINE
|
Category
|
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
FET, MOSFET Arrays
|
|
|
Manufacturer
|
onsemi
|
|
|
Series
|
–
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Technology
|
MOSFET (Metal Oxide)
|
|
|
Configuration
|
2 N-Channel (Dual)
|
|
|
FET Feature
|
–
|
|
|
Drain to Source Voltage (Vdss)
|
30V
|
|
|
Current – Continuous Drain (Id) @ 25°C
|
250mA
|
|
|
Rds On (Max) @ Id, Vgs
|
1.5Ohm @ 10mA, 4V
|
|
|
Vgs(th) (Max) @ Id
|
1.5V @ 100µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs
|
1.3nC @ 5V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
33pF @ 5V
|
|
|
Power – Max
|
272mW
|
|
|
Operating Temperature
|
-55°C ~ 150°C (TJ)
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
6-TSSOP, SC-88, SOT-363
|
|
|
Supplier Device Package
|
SC-88/SC70-6/SOT-363
|
|
|
Base Product Number
|
NTJD4001
|
