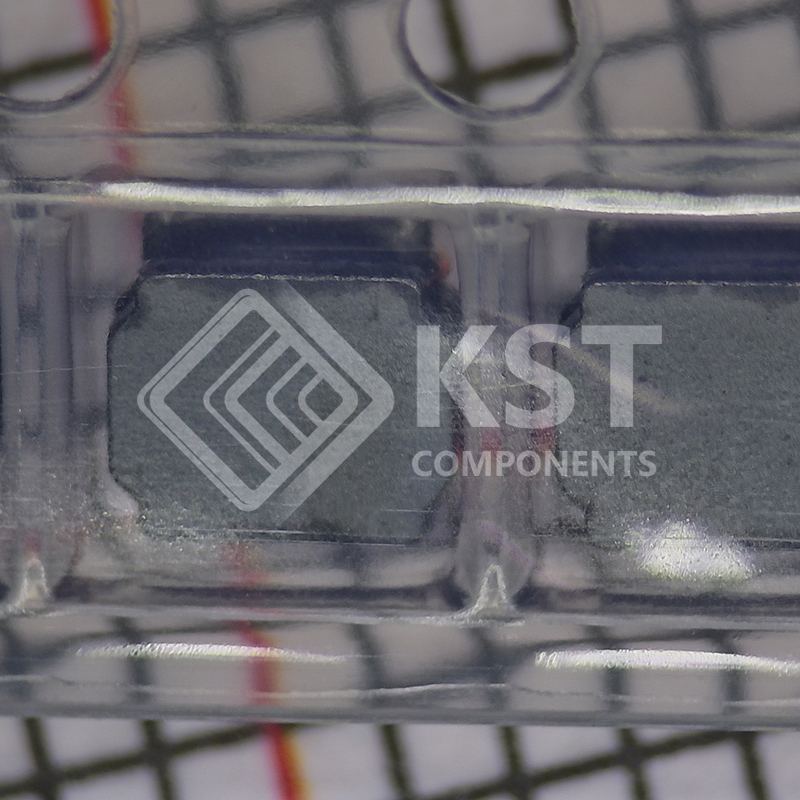

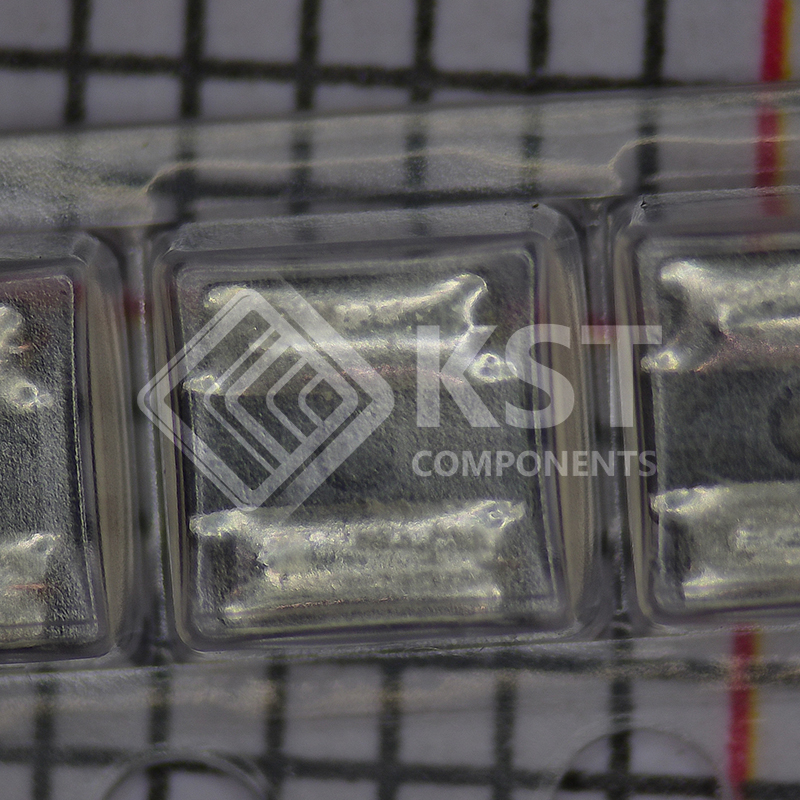

NR3015T3R3M
INQUIRY ONLINE
|
Mfr
|
|
|
|
Series
|
|
|
|

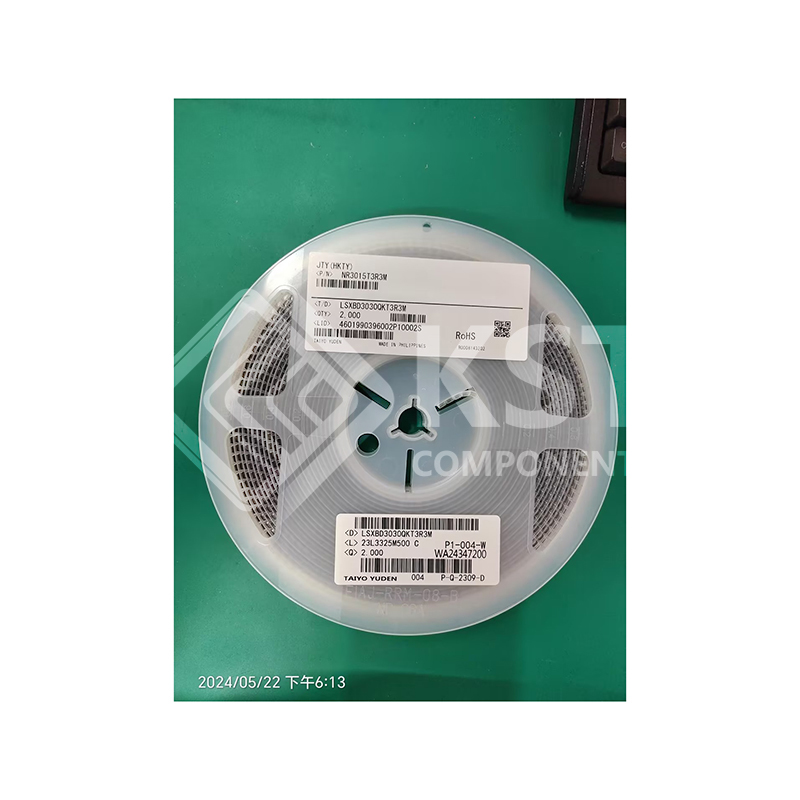

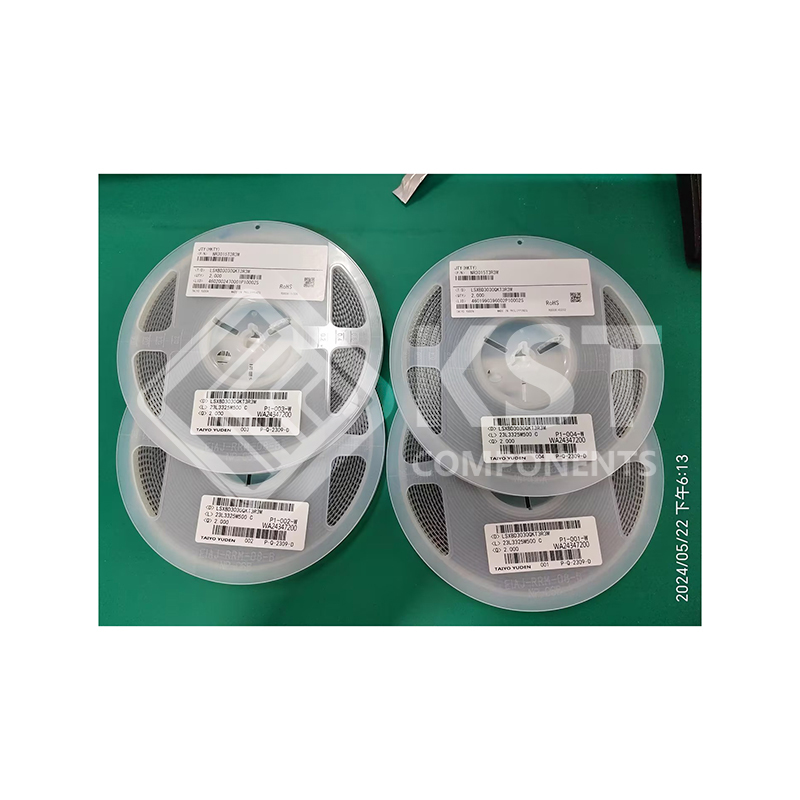

Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Not For New Designs
|
|
|
Type
|
Drum Core, Wirewound
|
|
|
Material – Core
|
|
|
|
Inductance
|
3.3 µH
|
|
|
Tolerance
|
±20%
|
|
|
Current Rating (Amps)
|
|
|
|
Current – Saturation (Isat)
|
1.21A
|
|
|
Shielding
|
Shielded
|
|
|
DC Resistance (DCR)
|
96mOhm Max
|
|
|
Q @ Freq
|
–
|
|
|
Frequency – Self Resonant
|
49MHz
|
|
|
Ratings
|
–
|
|
|
Operating Temperature
|
-25°C ~ 120°C
|
|
|
Inductance Frequency – Test
|
100 kHz
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
Nonstandard
|
|
|
Supplier Device Package
|
–
|
|
|
Size / Dimension
|
0.118″ L x 0.118″ W (3.00mm x 3.00mm)
|
|
|
Height – Seated (Max)
|
0.059″ (1.50mm)
|
