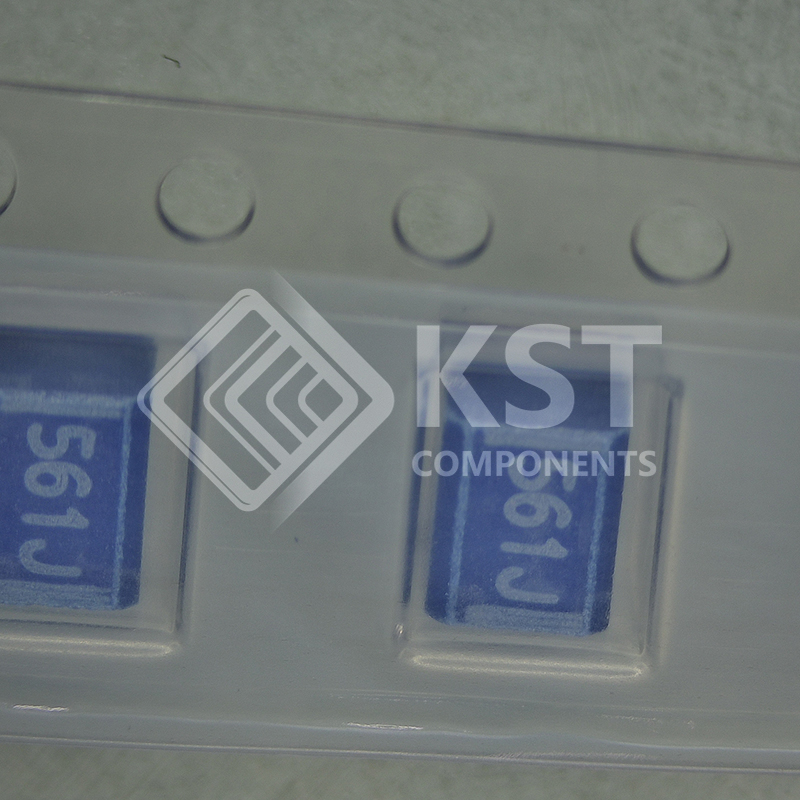

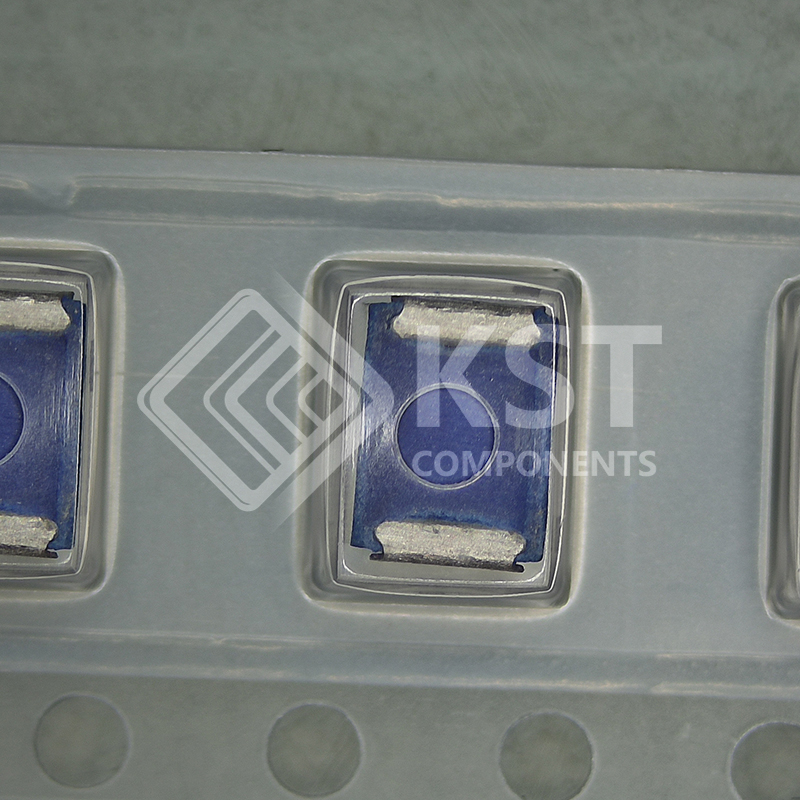

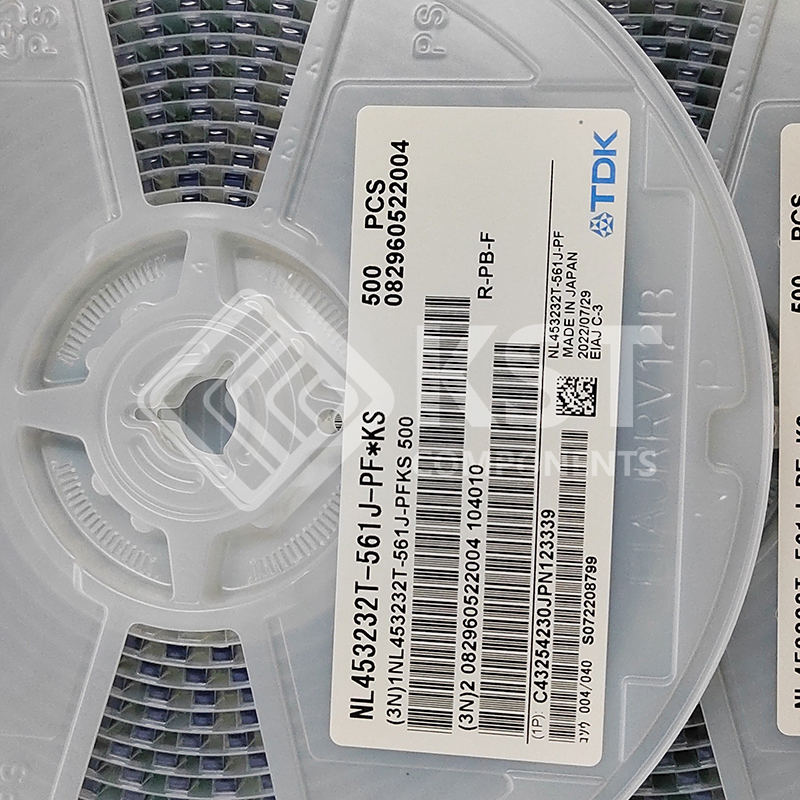

NL453232T-561J-PF
INQUIRY ONLINE
|
Category
|
Inductors, Coils, Chokes
Fixed Inductors
|
|
|
Mfr
|
TDK Corporation
|
|
|
Series
|
NL
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Obsolete
|
|
|
Type
|
Wirewound
|
|
|
Material – Core
|
–
|
|
|
Inductance
|
560 µH
|
|
|
Tolerance
|
±5%
|
|
|
Current Rating (Amps)
|
50 mA
|
|
|
Current – Saturation (Isat)
|
–
|
|
|
Shielding
|
Unshielded
|
|
|
DC Resistance (DCR)
|
30Ohm Max
|
|
|
Q @ Freq
|
30 @ 796kHz
|
|
|
Frequency – Self Resonant
|
3MHz
|
|
|
Ratings
|
–
|
|
|
Operating Temperature
|
-40°C ~ 105°C
|
|
|
Inductance Frequency – Test
|
796 kHz
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
1812 (4532 Metric)
|
|
|
Supplier Device Package
|
1812
|
|
|
Size / Dimension
|
0.177″ L x 0.126″ W (4.50mm x 3.20mm)
|
|
|
Height – Seated (Max)
|
0.134″ (3.40mm)
|
