NCV8189CMTWADJTAG
INQUIRY ONLINE
|
Category
|
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators – Linear, Low Drop Out (LDO) Regulators
|
|
|
Mfr
|
onsemi
|
|
|
Series
|
–
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Output Configuration
|
Positive
|
|
|
Output Type
|
Adjustable
|
|
|
Number of Regulators
|
1
|
|
|
Voltage – Input (Max)
|
5.5V
|
|
|
Voltage – Output (Min/Fixed)
|
0.6V
|
|
|
Voltage – Output (Max)
|
5V
|
|
|
Voltage Dropout (Max)
|
0.21V @ 500mA
|
|
|
Current – Output
|
500mA
|
|
|
Current – Quiescent (Iq)
|
55 µA
|
|
|
PSRR
|
85dB ~ 40dB (1kHz ~ 1MHz)
|
|
|
Control Features
|
Enable, Power Good, Soft Start
|
|
|
Protection Features
|
Over Current, Over Temperature, Short Circuit
|
|
|
Operating Temperature
|
150°C (TJ)
|
|
|
Grade
|
Automotive
|
|
|
Qualification
|
AEC-Q100
|
|
|
Mounting Type
|
Surface Mount, Wettable Flank
|
|
|
Package / Case
|

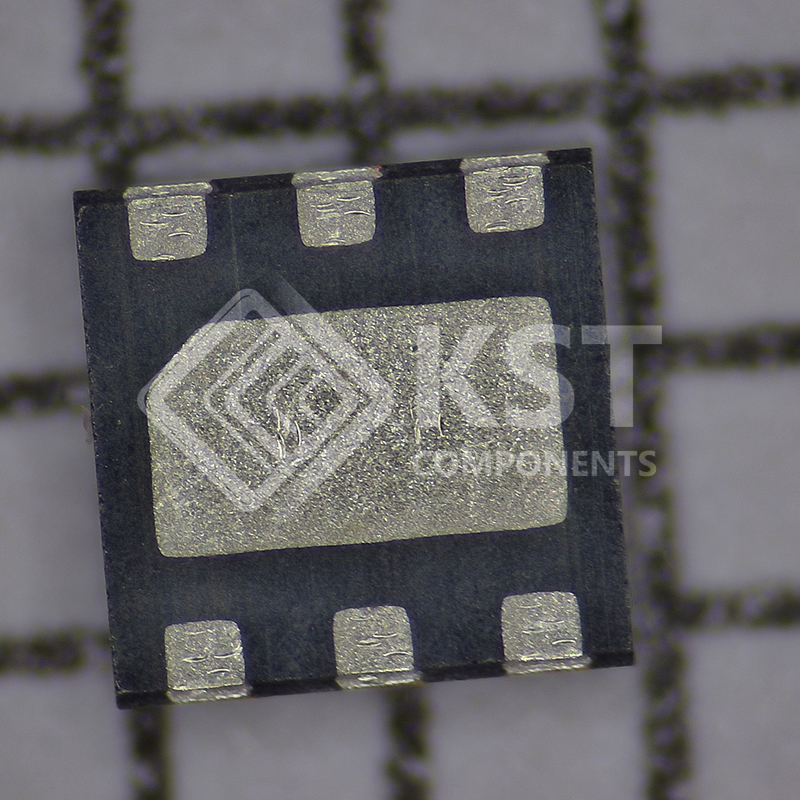

6-WDFN Exposed Pad
|
|
|
Supplier Device Package
|
6-WDFNW (2×2)
|
