    NCV5703ADR2G

    The NCx5703y are high−current, high−performance stand−alone
    IGBT drivers for high power applications that include solar inverters,
    motor control and uninterruptible power supplies. The devices offer a
    cost−effective solution by eliminating external output buffer. Devices
    protection features include accurate Under−voltage−lockout (UVLO),
    desaturation protection (DESAT) and Active open−drain FAULT
    output. The drivers also feature an accurate 5.0 V output. The drivers
    are designed to accommodate a wide voltage range of bias supplies
    including unipolar and NCx5703B even bipolar voltages.
    Depending on the pin configuration the devices also include Active
    Miller Clamp (NCx5703A), separate high and low (VOH and VOL)
    driver outputs for system design convenience (NCx5703C)
    and Enable function for driver output control by external signal
    (NCx5703D).

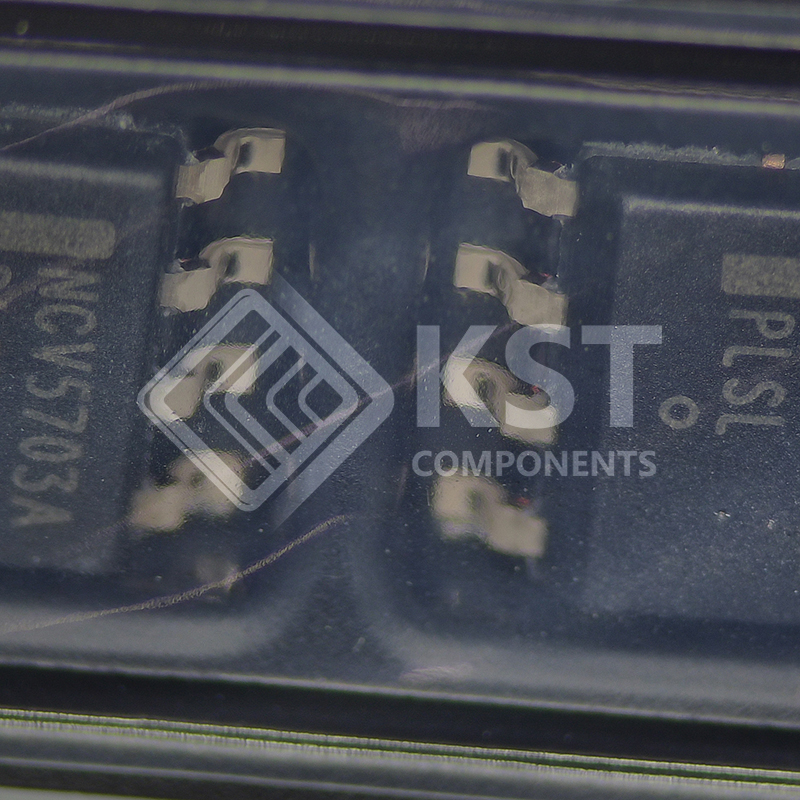

    All four available pin configuration variants have 8−pin SOIC
    package.

    Category:

    Download Details PDF
    Notice:

    In stock will ship in 2 days. Real-time inventory pls confirm with us.

    INQUIRY ONLINE




      SPECIFICATION

      • High Current Output (+4/−6 A) at IGBT Miller Plateau voltages
      • Low Output Impedance for Enhanced IGBT Driving
      • Short Propagation Delay with Accurate Matching
      • Direct Interface to Digital Isolator/Opto−coupler/Pulse Transformer
      for Isolated Drive, Logic Compatibility for Non−isolated Drive
      • DESAT Protection with Programmable Delay
      • Enable Input for Independent Driver Control (NCx5703D)
      • Tight UVLO Thresholds for Bias Flexibility
      • Wide Bias Voltage Range
      • NCV Prefix for Automotive and Other Applications Requiring
      Unique Site and Control Change Requirements; AEC−Q100
      Qualified and PPAP Capable
      • This Device is Pb−Free, Halogen−Free and RoHS Compliant
      NCx5703A Features
      • Active Miller Clamp to Prevent Spurious Gate Turn−on
      NCx5703B Features
      • Negative Output Voltage for Enhanced IGBT Driving
      NCx5703C Features
      • Separate Outputs for VOL and VOH
      NCx5703D Features
      • Enable Pin for Independent Driver Control
      Typical Applications
      • Solar Inverters
      • Motor Control
      • Uninterruptible Power Supplies (UPS)
      • Rapid Shutdown for Photovoltaic Systems
