NCP565ST12T3G
INQUIRY ONLINE
|
Category
|
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators – Linear, Low Drop Out (LDO) Regulators
|
|
|
Mfr
|
onsemi
|
|
|
Series
|
–
|
|
|
Packaging
|

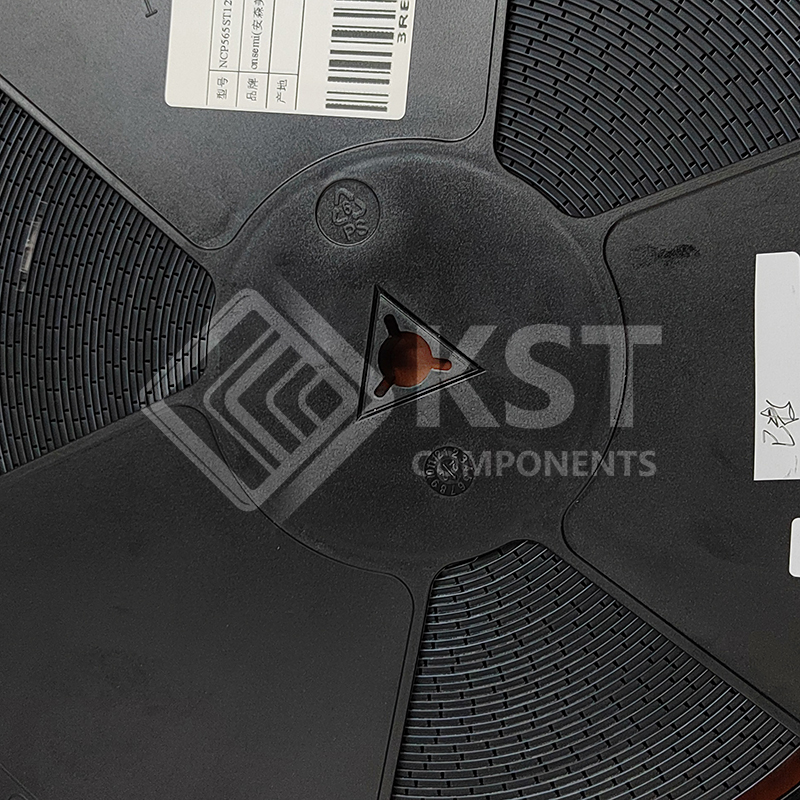

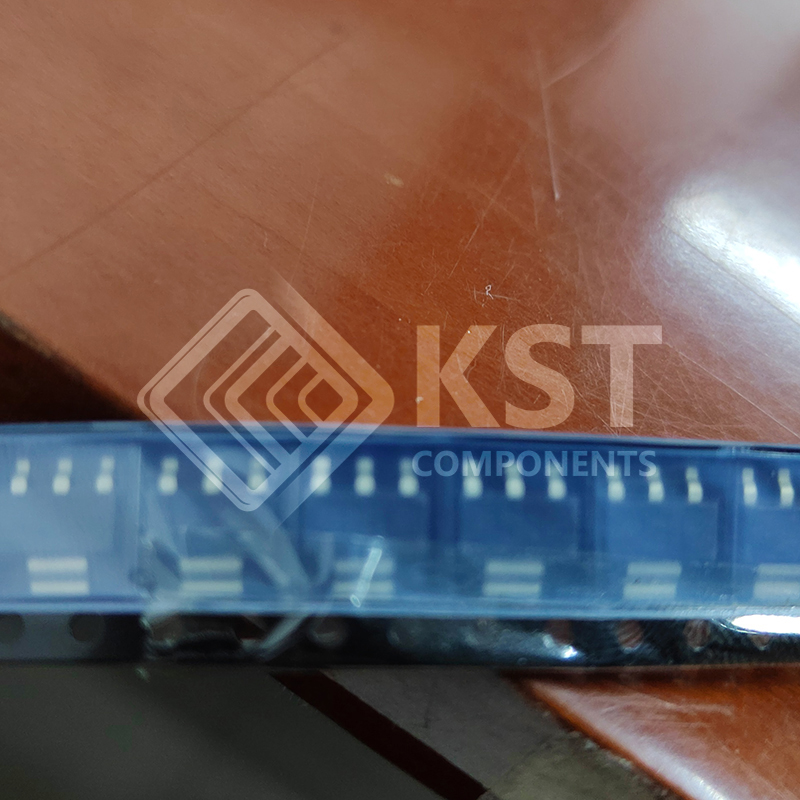

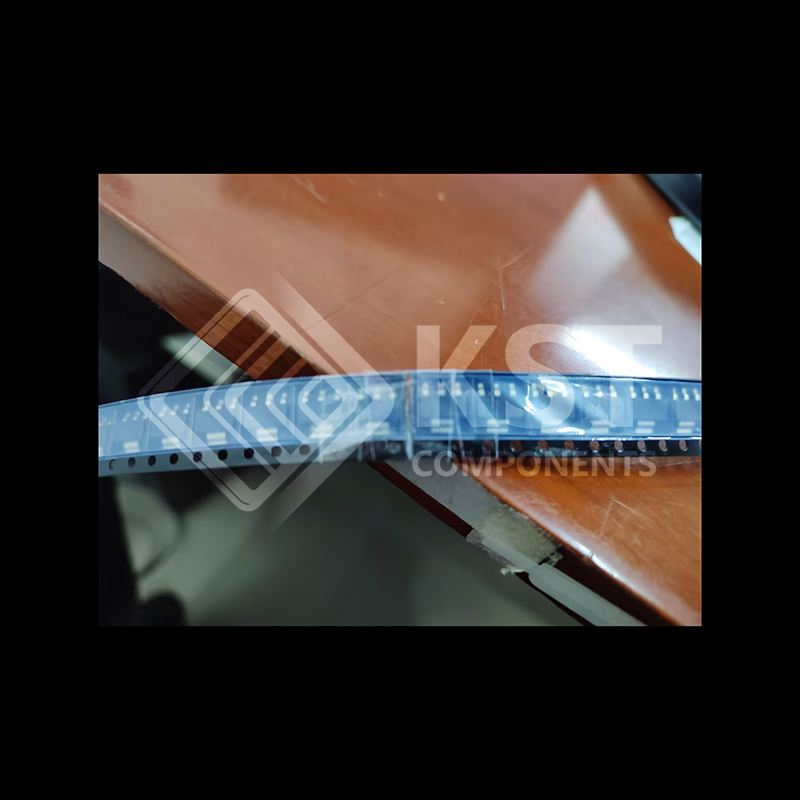

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Output Configuration
|
Positive
|
|
|
Output Type
|
Fixed
|
|
|
Number of Regulators
|
1
|
|
|
Voltage – Input (Max)
|
9V
|
|
|
Voltage – Output (Min/Fixed)
|
1.2V
|
|
|
Voltage – Output (Max)
|
–
|
|
|
Voltage Dropout (Max)
|
–
|
|
|
Current – Output
|
1.5A
|
|
|
Current – Quiescent (Iq)
|
3 mA
|
|
|
PSRR
|
85dB ~ 75db (120Hz ~ 1kHz)
|
|
|
Control Features
|
–
|
|
|
Protection Features
|
Over Current, Over Temperature
|
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|

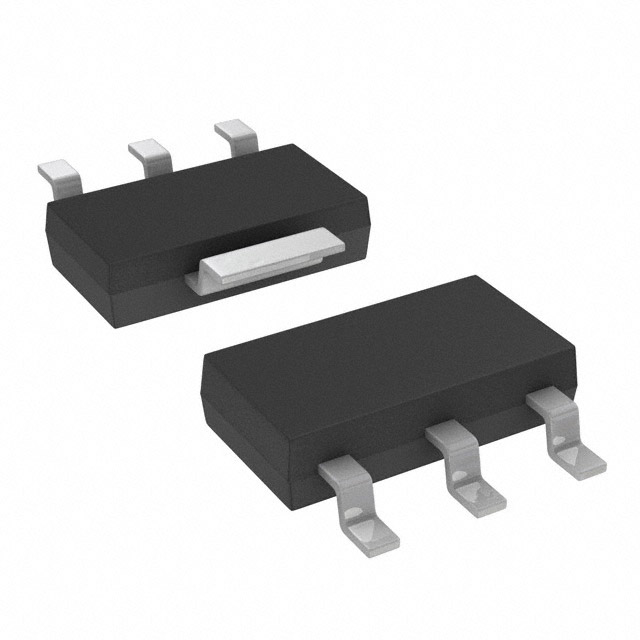

TO-261-4, TO-261AA
|
|
|
Supplier Device Package
|

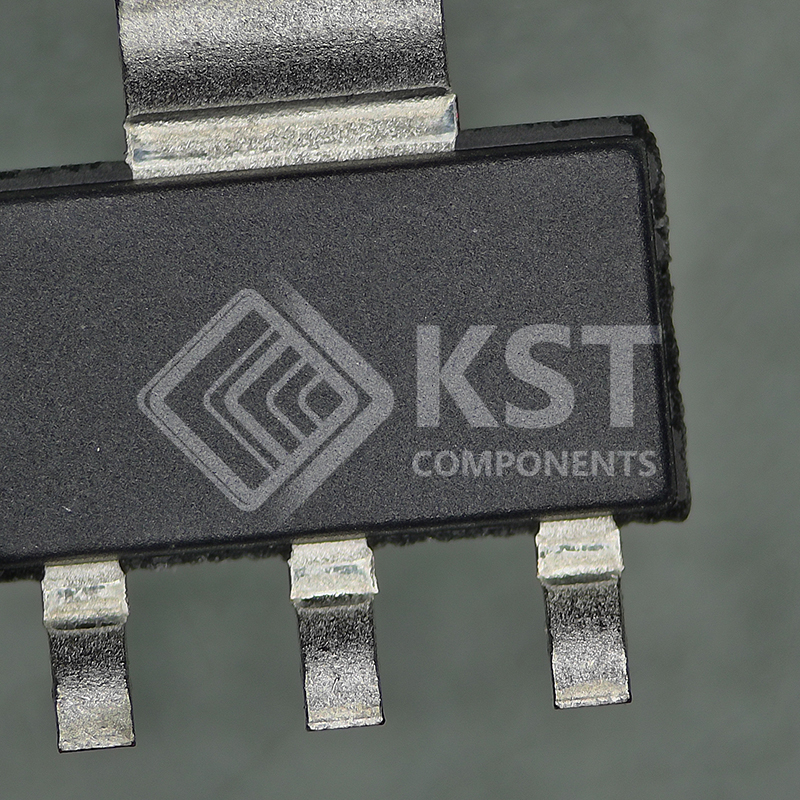

SOT-223 (TO-261)
|
|
|
Base Product Number
|
NCP565
|
