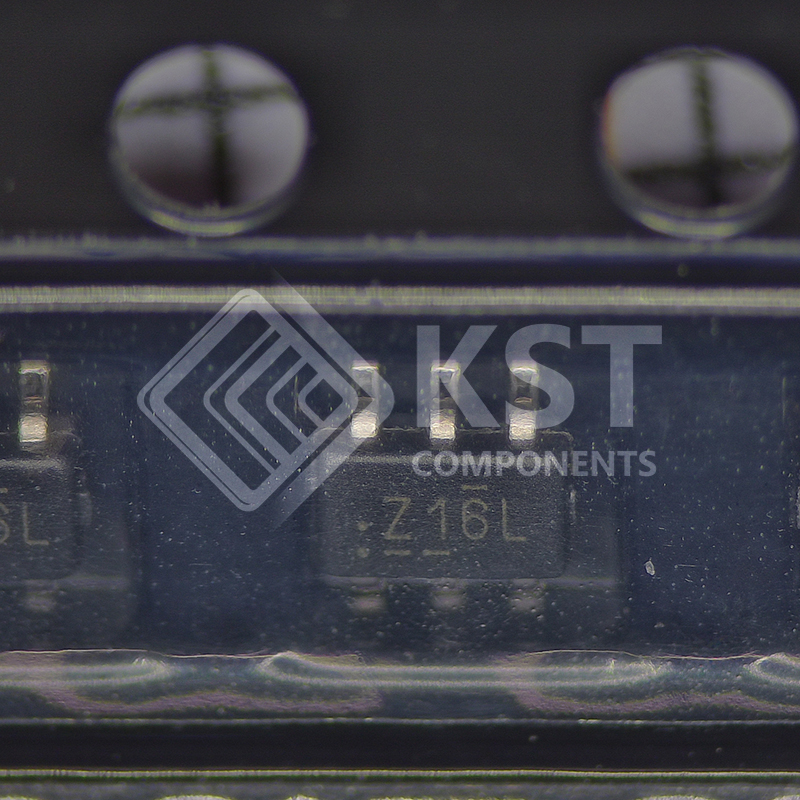

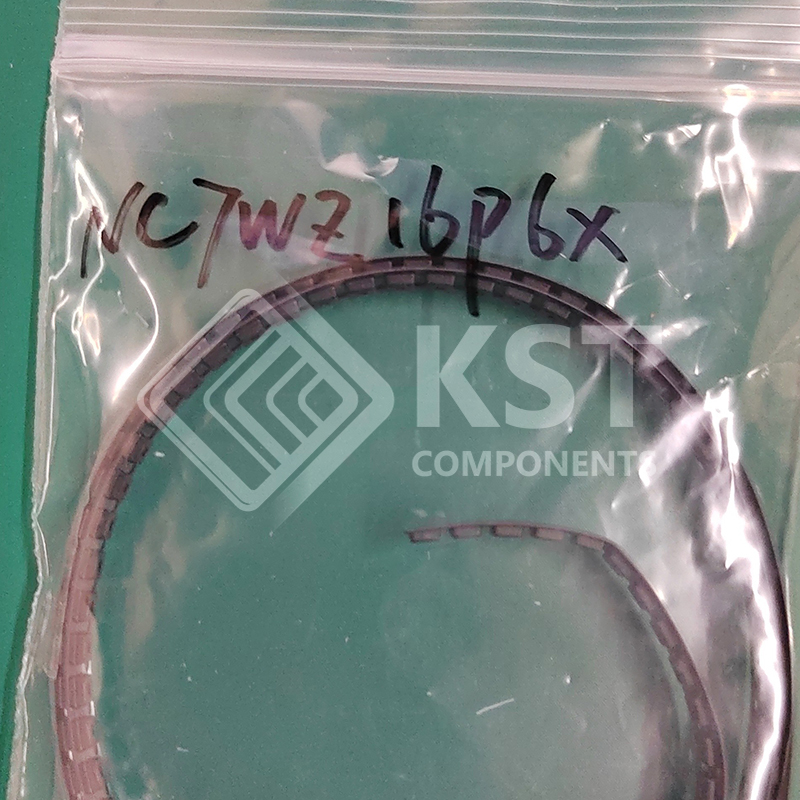

NC7WZ16P6X

The NC7WZ16 is a dual buffer from ON Semiconductor’s
Ultra-High Speed Series of TinyLogic® The device is
fabricated w ith advanced CMOS technology to achieve
ultra-high speed w ith high output drive w hile maintaining
low static pow er dissipation over a very broad V CC
operating range. The device is specified to operate over
the 1.65V to 5.5V VCC range. The inputs and outputs are
high impedance w hen VCC is 0V. Inputs tolerate voltages
up to 7V independent of VCC operating voltage.

Category: Transceivers

Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE

SPECIFICATION

 Ultra-High Speed: tPD 2.4ns (Typical) into 50pF at 5V
VCC
 High Output Drive: ±24mA at 3V VCC
 Broad VCC Operating Range: 1.65V to 5.5V
 Matches Performance of LCX w hen Operated at
3.3V VCC
 Pow er Dow n High-Impedance Inputs/Outputs
 Over-Voltage Tolerance Inputs Facilitate 5V to 3V
Translation
 Proprietary Noise/EMI Reduction Circuitry
 Ultra-Small MicroPak™ Packages
 Space-Saving SC70 Package
