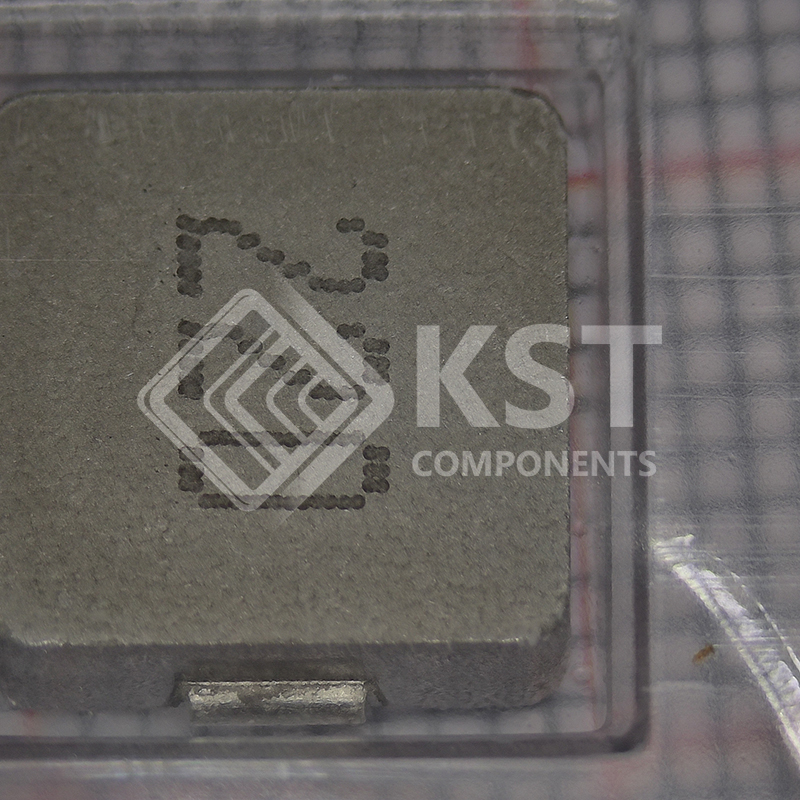

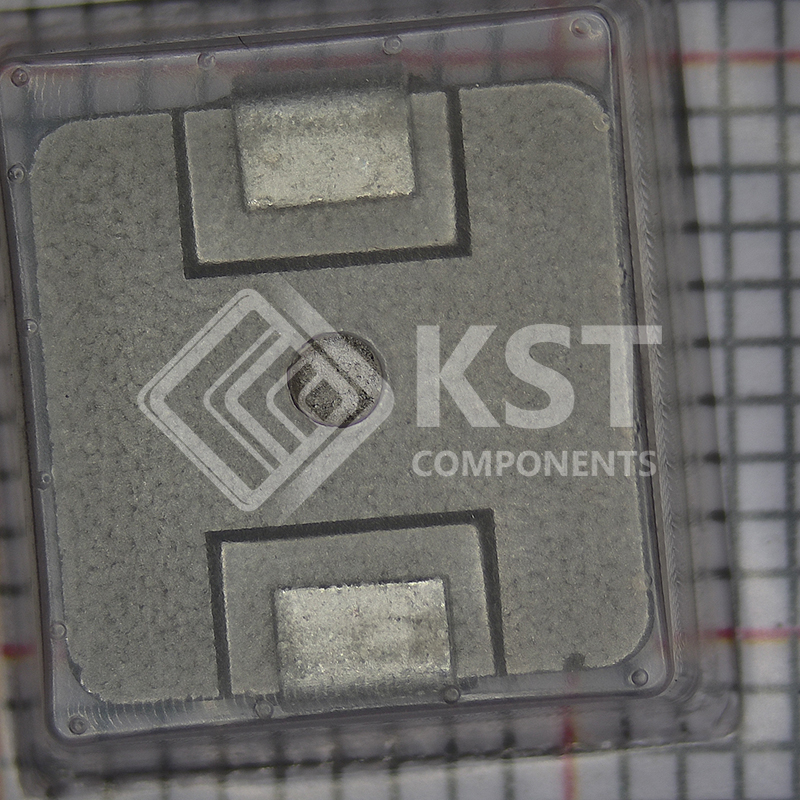

MWSA1004S-220MT
INQUIRY ONLINE
|
Mfr
|
|
|
|
Series
|
|
|
|

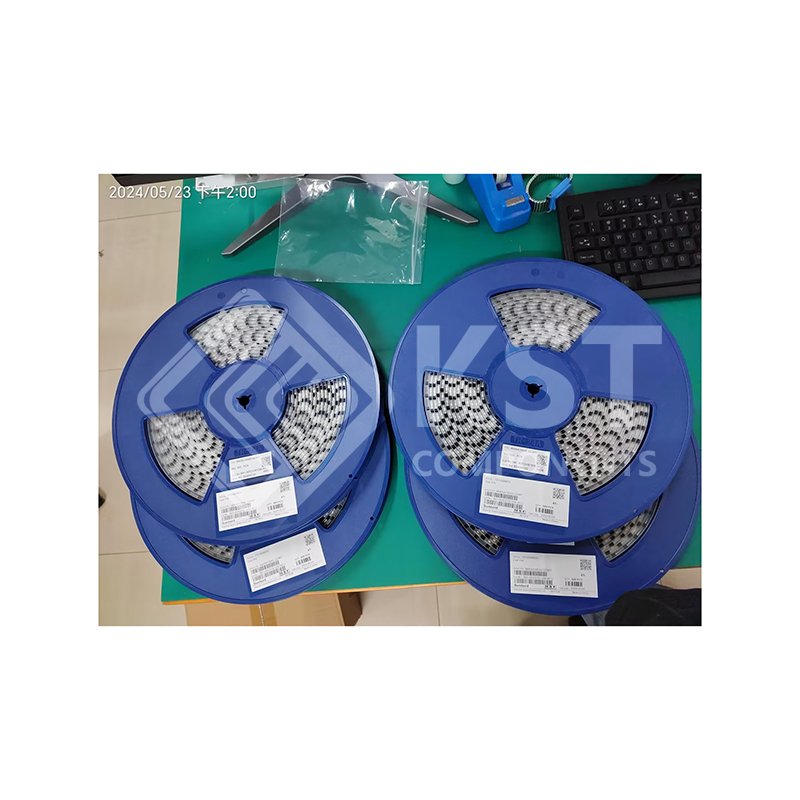

Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Type
|
Drum Core, Wirewound
|
|
|
Material – Core
|
|
|
|
Inductance
|
22 µH
|
|
|
Tolerance
|
±20%
|
|
|
Current Rating (Amps)
|
|
|
|
Current – Saturation (Isat)
|
5.5A
|
|
|
Shielding
|
Shielded
|
|
|
DC Resistance (DCR)
|
66mOhm Max
|
|
|
Q @ Freq
|
–
|
|
|
Frequency – Self Resonant
|
–
|
|
|
Ratings
|
–
|
|
|
Operating Temperature
|
-55°C ~ 125°C
|
|
|
Inductance Frequency – Test
|
100 kHz
|
|
|
Features
|
–
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
Nonstandard
|
|
|
Supplier Device Package
|
–
|
|
|
Size / Dimension
|
0.453″ L x 0.394″ W (11.50mm x 10.00mm)
|
|
|
Height – Seated (Max)
|
0.157″ (4.00mm)
|
|
|
Base Product Number
|
|
