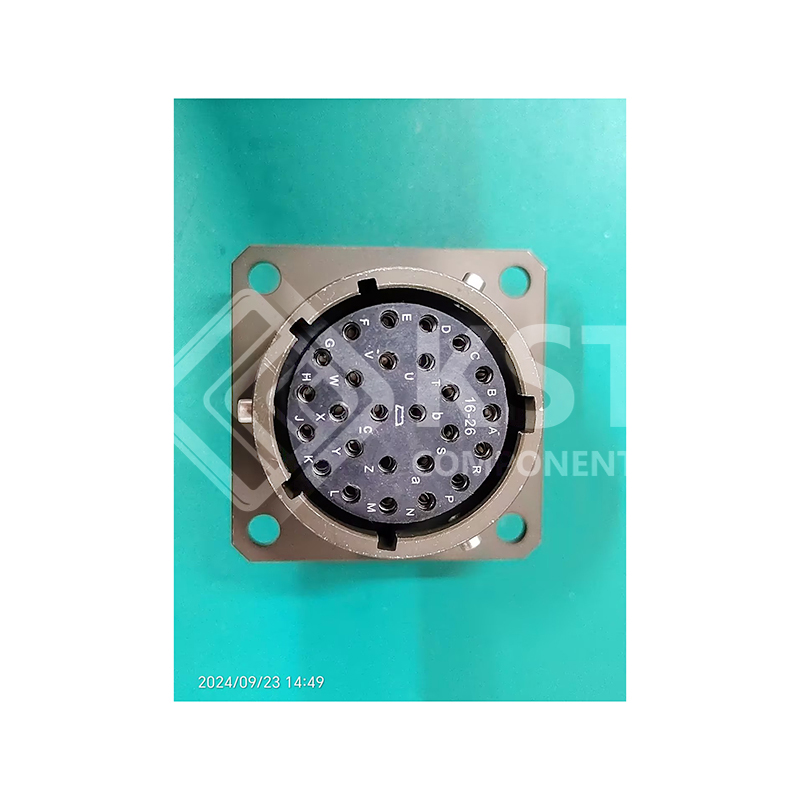

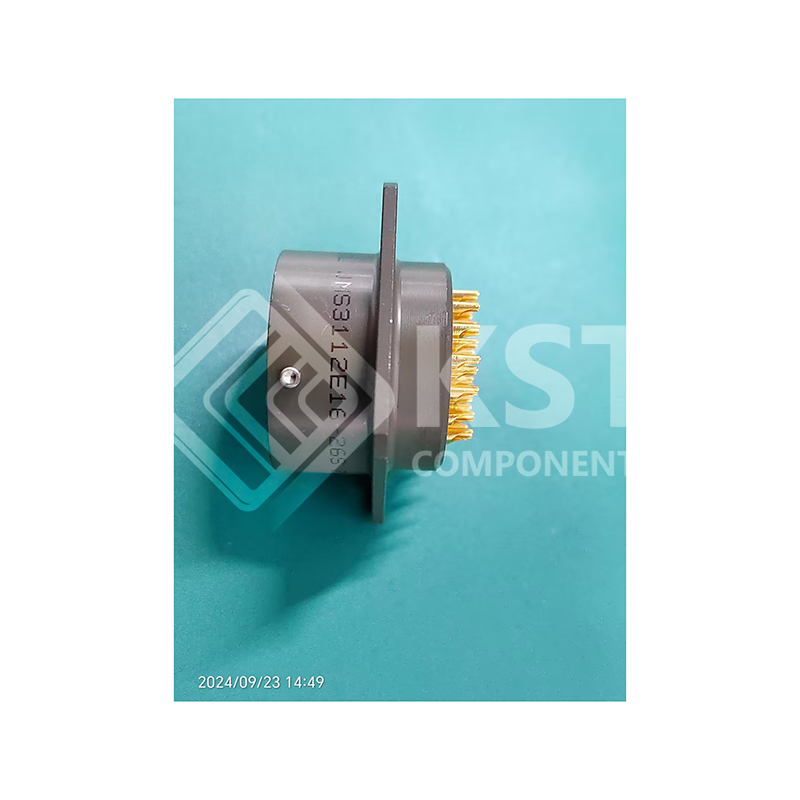

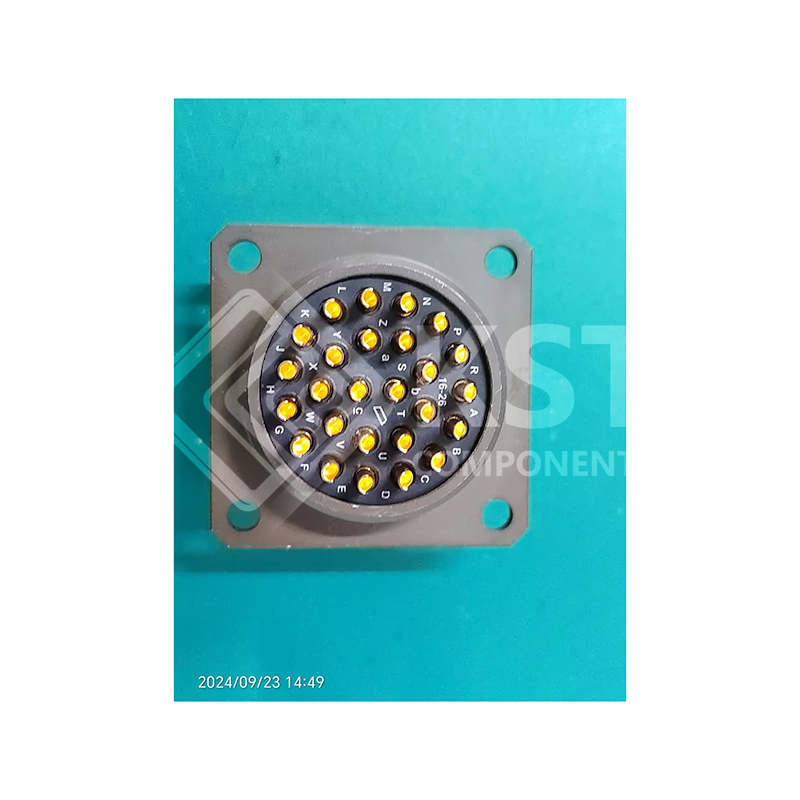

MS3112E16-26S

CONN RCPT FMALE 26P GOLD SLD CUP


Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE




    SPECIFICATION

    Category
    Connectors, Interconnects
    Circular Connectors
    Circular Connector Assemblies
    Mfr
    Amphenol Industrial Operations
    Series
    PT
    Packaging
    Bulk
    Part Status
    Discontinued at Digi-Key
    Connector Type
    Receptacle, Female Sockets
    Number of Positions
    26
    Grade
    Military
    Qualification
    MIL-DTL-26482 Series I
    Shell Size – Insert
    16-26
    Shell Size, MIL
    Mounting Type
    Panel Mount
    Mounting Feature
    Flange
    Termination
    Solder Cup
    Fastening Type
    Bayonet Lock
    Orientation
    N (Normal)
    Primary Material
    Metal
    Shell Material
    Aluminum
    Shell Finish
    Olive Drab Chromate over Cadmium
    Contact Finish – Mating
    Gold
    Color
    Olive Drab
    Ingress Protection
    Environment Resistant
    Material Flammability Rating
    Features
    Shielding
    Unshielded
    Current Rating (Amps)
    Voltage Rating
    Cable Opening
    Operating Temperature
    -55°C ~ 125°C
    Backshell Material, Plating
    Contact Material
    Copper Alloy
    Contact Finish Thickness – Mating
    Insert Material
    Neoprene
    Applications
    Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military
    Base Product Number
    MS3112E16
