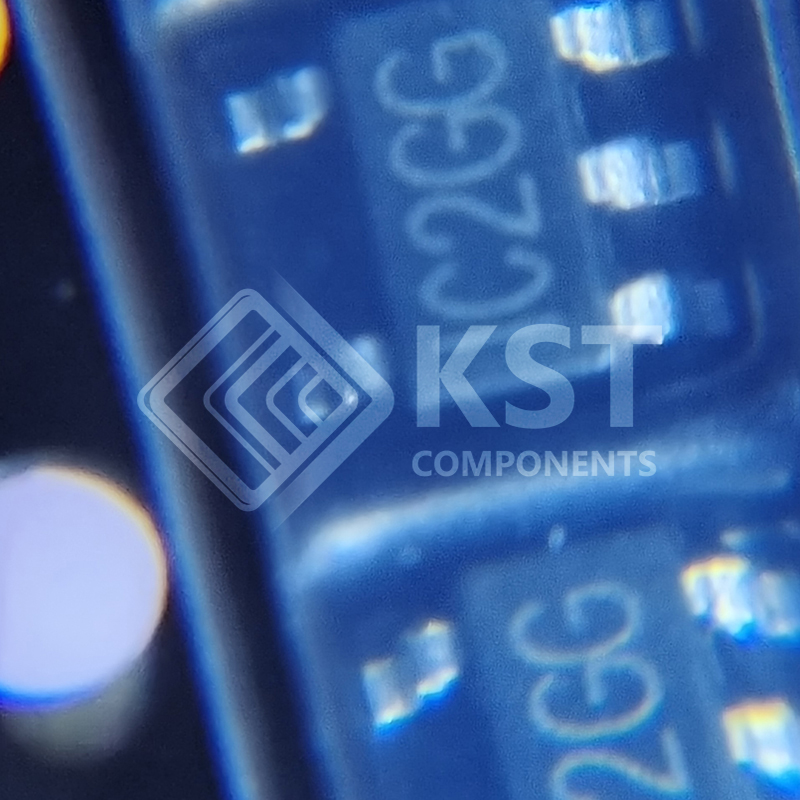

    MP2104DJ–LF–Z

    The MP2104 is a 1.7MHz constant frequency,
    current mode, PWM step-down converter. The
    device integrates a main switch and a
    synchronous rectifier for high efficiency without an
    external Schottky diode. It is ideal for powering
    portable equipment that runs from a single cell
    Lithium-Ion (Li+) battery. The MP2104 can supply
    600mA of load current from a 2.5V to 6V input
    voltage. The output voltage for the MP2104DJ
    can be regulated as low as 0.6V, while the output
    voltages of the MP2104DJ-1.5 and
    MP2104DJ-1.8 are fixed at 1.5V and 1.8V,
    respectively. The MP2104 can also run at 100%
    duty cycle for low dropout applications.
    The MP2104 is available in low profile (1mm)
    5-pin TSOT and 0.75mm TQFN-6 packages.

    Category:

    Download Details PDF
    Notice:

    In stock will ship in 2 days. Real-time inventory pls confirm with us.

    INQUIRY ONLINE




      SPECIFICATION

       High Efficiency: Up to 95%
       1.7MHz Constant Switching Frequency
       600mA Available Load Current
       2.5V to 6V Input Voltage Range
       Output Voltage as Low as 0.6V
       100% Duty Cycle in Dropout
       Current Mode Control
       Short Circuit Protection
       Thermal Fault Protection
       <0.1μA Shutdown Current
       1.5V and 1.8V Fixed Output Versions
       Space Saving 5-Pin TSOT23 and 6-pin thin
      QFN Packages
